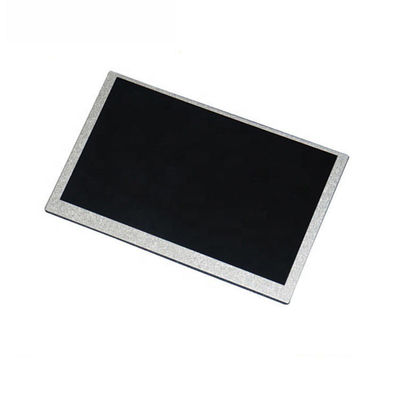

Product Details:
|
| MODEL NUMBER: | G070Y2-L02 | BRAND: | CMO |
|---|---|---|---|
| SIZE: | 7.0INCH | BRIGHTNESS: | 500 Cd/m² (Typ.) |
| Lamp Type: | WLED | RESOLUTION: | 800(RGB)×480 (WVGA) 133PPI |
| VIEWING ANGLEG: | 70/70/60/60 (Typ.)(CR≥10) | TEMPERATURE RANGE: | Storage Temp.: -40 ~ 95 °C Operating Temp.: -30 ~ 85 °C |
| High Light: | IPS Lcd Display Panels,RGB Vertical LCD Display,LVDS TFT LCD Module |
||
| Basic Information : | Manufacturer | Panel Model | Panel Type | Alias |
|---|---|---|---|---|
| G070Y2-L02 | a-Si TFT-LCD , LCM | - | ||
| Environment : | RoHS State | Operating Temp. | Storage Temp. | Vibration Level |
| -30 ~ 85 °C | -40 ~ 95 °C |
| Basic Information : | Luminance (cd/m²) | Viewing Angle (L/R/U/D) | Response Time (ms) |
|---|---|---|---|
| 500 (Typ.) | 70/70/60/60 (Typ.)(CR≥10) | 5/11 (Typ.)(Tr/Td) | |
| Best View on | Display Mode | Contrast Ratio | |
| - | TN, Normally White, Transmissive | 600 : 1 (Typ.) (Transmissive) | |
| Dispaly Color : | Color Temperature | Display Colors | White Coordinate |
| 6485K | 262K (6-bit) | X:0.313; Y:0.329 | |
| 1931 Color Gamlt : | NTSC Ratio | sRGB Coverage | Adobe RGB Coverage |
| 74% | 97% | 75% | |
| DCI-P3 Coverage | Rec.2020 Coverage | Remarks | |
| 77% | 56% | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) | |
| White Variation : | 1.25/1.40 (Typ./Max.)(5 points) | ||
| Panel Size : | 7.0" | |||
|---|---|---|---|---|
| Pixel Features : | Pixel Format | Pixel Configuration | Pixel Pitch (mm) | Dot Pitch (mm) |
| 800(RGB)×480 [WVGA] | RGB Vertical Stripe | 0.1905×0.1905 [133PPI] | 0.0635×0.1905 | |
| Mechanical Size : | Active Area (mm) | Bezel Area (mm) | Outline Dimension (mm) | Outline Depth (mm) |
| 152.4(H) × 91.44(V) | - | - | - | |
| Outline Features : | Form Factor | Orientation | Aspect Ratio | Shape Style |
| Flat Rectangle | Landscape type | 15:9 (H:V) | ||
| Reverse Scan : | Yes (U/D, L/R) |
|---|---|
| Vertical Frequency : | 60Hz |
