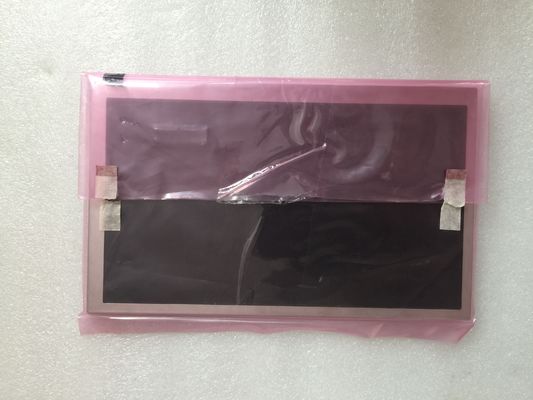

Product Details:
|
| MODEL NUMBER: | DJ080IA-11A | BRAND: | INNOLUX |
|---|---|---|---|
| SIZE: | 8.0INCH | RESOLUTION: | 1280(RGB)×720 (WXGA) 184PPI |
| BRIGHTNESS: | 750CD/M2 | Lamp Type: | WLED |
| VIEWING ANGLEG: | 85/85/85/85 (Typ.)(CR≥10 | TEMPERATURE RANGE: | Storage Temp.: -40 ~ 90 °C Operating Temp.: -30 ~ 85 °C |
| High Light: | WVGA Industrial TFT Display,NTSC Lcd Video Panel |
||
| Basic Information : | Brand Name | Model Name | Type | Model Alias |
|---|---|---|---|---|
| DJ080IA-11A | a-Si TFT-LCD , LCM | - | ||
| Maximum Ratings : | RoHS | Operating Temperature | Storage Temperature | Vibration Level |
| -30 ~ 85 °C | -40 ~ 90 °C |
| Screen Size : | 8.0" | |||
|---|---|---|---|---|
| Pixel Features : | Pixel Number | Pixel Format | Dot Pitch (H×V) | Pixel Pitch (H×V) |
| 1280(RGB)×720, WXGA | RGB Vertical Stripe | 0.046×0.138 mm | 0.138×0.138 mm [184PPI] | |
| Mechanical Size : | Display Area (H×V) | Bezel Opening (H×V) | Overall Dimension (H×V) | Overall Depth |
| 176.64×99.36 mm | 179.64×102.36 mm | 192.8×116.9 mm | 6.4/9.85 (Typ./Max.) mm | |
| Outline Features : | Form Shape | Aspect Ratio (H:V) | Orientation | Shape Style |
| Flat Rectangle | 16:9 | Landscape type | ||
| Other Spec : | Mass | Panel Cover | Surface Treatment | |
| 205g (Max.) | - | Antiglare | ||
| Holes & Brackets : | Side mounting holes (4-M2) on left, right bezel | |||
| Basic Information : | Luminance | Work Mode | Contrast Ratio |
|---|---|---|---|
| 750 cd/m² (Typ.) | AAS, Normally Black, Transmissive | 1000:1 (Typ.) (Transmissive) | |
| Good View at | Viewing Angle | Response Time | |
| Symmetry | 85/85/85/85 (Typ.)(CR≥10) | 10/15 (Typ.)(Tr/Td) (ms) | |
| Dispaly Color : | Color Temperature: | Support Color | Color Coordinate |
| 6638K | 262K/16.7M (6-bit / 8-bit) | X:0.310; Y:0.330 | |
| White Uniformity : | 1.25/1.33 (Typ./Max.)(9 points) | ||
| Performance : | 3D Technology | Outdoor Visibility | Reflectance |
| - | Sunlight Readable | ||
| Refresh Rate : | 60Hz |
|---|---|
| Reverse Scan : | Yes (U/D, L/R) |
| Back-light Features: | Type | Position | Life(Hours) | Amount | Shape | Replacement |
|---|---|---|---|---|---|---|
| WLED | Edge light type | 20K(Min.) | 6S4P | Array | - | |
| WLED Electrical : | Input Voltage | Input Current | Power Consumption | |||
| 18.6±1.8V | 260mA (Typ.) | 4.84W (Typ.) | ||||
| Interface Features : | WLED Driver State | Physical Type | Interface Position | |||
| No | Included in signal interface | |||||
| Signal Electrical : | Input Voltage | Input Current | Power Consumption | |||
|---|---|---|---|---|---|---|
| 3.3V (Typ.) | 300/425mA (Typ./Max.) | 1.4W (Max.) | ||||
| Interface Features : | Signal Type | Physical Type | Interface Position | |||
| LVDS (1 ch, 6/8-bit) | Connector | - | ||||
| Interface Detail : | Brand Name | Model Name | Amount | Pins | Pin Pitch | Pin Configuration |
| I-PEX | 20647-040E-01 | 1 pcs | 40 pins | 0.5 mm | ||
| Box Type | Pcs/Box | Box Qty | Package LWH (mm) | G.W (kgs) | Volume (m³) | Remarks |
| Carton | 18 | 1 | 380×375×210 | 6.05 | 0.0299 |
FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
