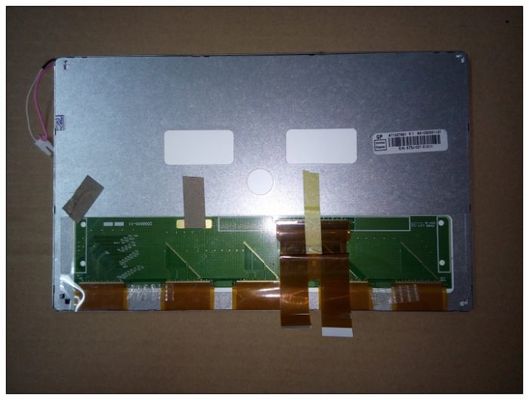

Product Details:
|
| MODEL NUMBER: | AT102TN03 V.6 | BRAND: | INNOLUX |
|---|---|---|---|
| SIZE: | 10.2 Inch | RESOLUTION: | 800(RGB)×480 (WVGA) 91PPI |
| BRIGHTNESS: | 250CD/M2 | Lamp Type: | WLED |
| VIEWING ANGLEG: | 65/65/45/65 (Typ.)(CR≥10 | TEMPERATURE RANGE: | Storage Temp.: -30 ~ 85 °C Operating Temp.: -30 ~ 85 °C |
| High Light: | WVGA Industrial TFT Display,NTSC Lcd Video Panel |
||
| Basic Info : | Panel Brand | Panel Model | AT102TN03 V.6 | |
|---|---|---|---|---|
| Diagonal Size | 10.2" | Application |
|
|
| Panel Type | a-Si TFT-LCD , LCM | Model Alias | - | |
| Reliability : | Operating Temp. | -30 ~ 85 °C | Storage Temp. | -30 ~ 85 °C |
| RoHS State | Vibration Rating | - |
| Pixel Features : | Pixel Format | 800(RGB)×480 [WVGA] | Dot Pitch | 0.0925×0.2760 mm (H×V) |
|---|---|---|---|---|
| Configuration | RGB Vertical Stripe | Pixel Pitch | 0.2775×0.2760 mm (H×V) [91PPI] | |
| Mechanical Size : | Display Area | 222×132.48 mm (H×V) | Bezel Area | 225.4×135.9 mm (H×V) |
| Outline Dim. | 235×145.8 mm (H×V) | Outline Depth | 6.1±0.3 mm | |
| Outline Features : | Form Factor | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio | 15:9 (H:V) | Shape Style | ||
| Holes & Brackets : | Side mounting holes (6-M2) on left, right bezel | |||
| Other Features : | Weight | 334g (Typ.) | Surface | Antiglare |
| Basic Information : | Brightness | 250 cd/m² (Typ.) | Contrast Ratio | 300:1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Viewing Angle | 65/65/45/65 (Typ.)(CR≥10) | Optical Mode | TN, Normally White, Transmissive | |
| Viewing Direction | 6 o'clock | Response Time | 15/20 (Typ.)(Tr/Td) (ms) | |
| Color Performance : | Chromaticity | Wx:0.310; Wy:0.330 | Color Numbers | 262K (6-bit) |
| Color Temperature | 6638K | White Uniformity | 1.33/1.43 (Typ./Max.)(9 points) |
| Back-light Features: | Lamp Shape | Array | Lamp Type | WLED | Life Time | 20K(Min.) (Hours) |
|---|---|---|---|---|---|---|
| Replacement | - | Amount | 3S13P | Position | Edge light type | |
| Lamp Electrical : | Voltage Input | 9.9±0.6V | Current Input | 260±26mA | ||
| Consumption | 2.574W (Typ.) | |||||
| Interface Features : | Type | Connector | Position | - | Lamp Driver | No |
| Interface Detail : | Brand | Model | Pin Pitch | Pins | Amount | Configuration |
| JST | BHSR-02VS-1 | 3.5 mm | 2 pins | 1 pcs | BLE-2PINS-AC | |
| Signal Systerm : | Parallel RGB (1 ch, 6-bit) | Logic Voltage | 0≤VIL≤0.3VCC; 0.7VCC≤VIH≤VCC | |||
|---|---|---|---|---|---|---|
| Signal Electrical : | Voltage Input | 3.3/9.2/15/-10V (Typ.)(VCC/AVDD/VGH/VGL) | Current Input | 4.0/25/0.3/0.2mA (Typ.)(ICC/AIDD/IGH/IGL) | ||
| Consumption | 250mW (Typ.) | |||||
| Interface Features : | Type | FPC | Position | - | ||
| FPC Detail : | Brand | Model | Pin Pitch | Pins | Amount | Configuration |
| 0.5 mm | 30 pins | 2 pcs | ||||
