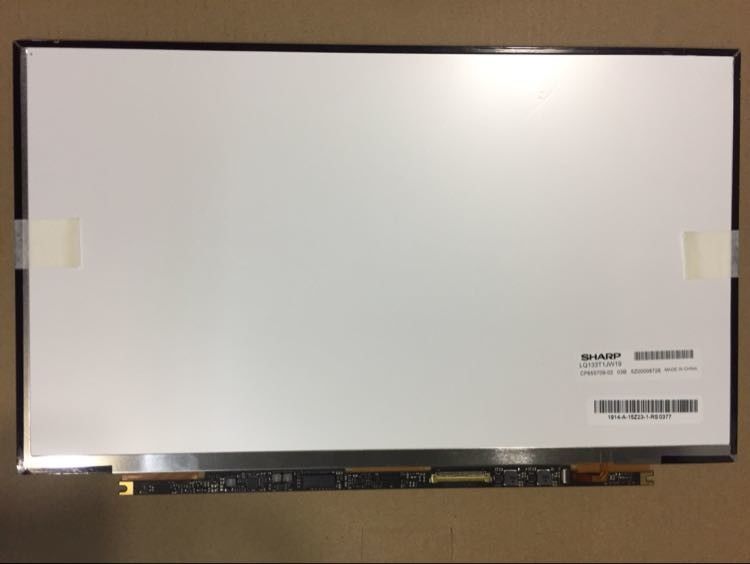

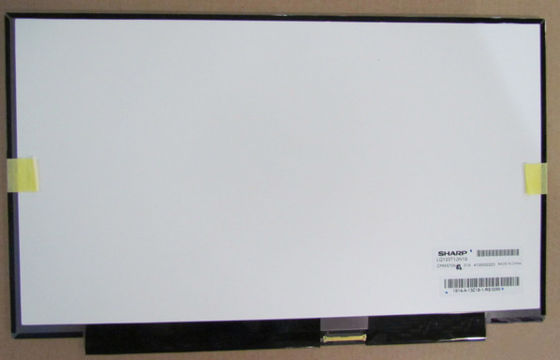

13.3" LCM 2560×1440RGB  350cd/m² LQ133T1JW19 Sharp TFT LCD Display

LQ133 Series LQ133T1JX03 LQ133T1JW23 LQ133T1JW19 LQ133T1JW17 LQ133T1JW02 LQ133T1JW01

LQ133T1JW19 supports display 2560(RGB)×1440 (Quad-HD) with aspect ratio of 16:9 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 293.76(W)×165.24(H) mm, outline size of 304.98(W)×187.9(H)×2.6(D) mm, with surface treament of Antiglare (Haze 42%), net weight of 178g (Typ.), shape stype of Slim (PCBA Flat, T≤3.2mm). As a VA, Normally Black, Transmissive LCM product, LQ133T1JW19 can provides 350 cd/m² display brightness 1000:1 transimissive contrast ratio, 80/80/80/80 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 25 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 99% (sRGB). This product adopted WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 10K hours, With LED Driver.
