AT050TN34 Innolux 5.0" 480(RGB)×272 400 cd/m² INDUSTRIAL LCD DISPLAY

AT050TN34 Innolux 5.0" 480(RGB)×272 400 cd/m² INDUSTRIAL LCD DISPLAY
AT050TN34 Innolux 5.0" 480(RGB)×272 400 cd/m² INDUSTRIAL LCD DISPLAY AT050TN34 Innolux 5.0" 480(RGB)×272 400 cd/m² INDUSTRIAL LCD DISPLAY AT050TN34 Innolux 5.0" 480(RGB)×272 400 cd/m² INDUSTRIAL LCD DISPLAY

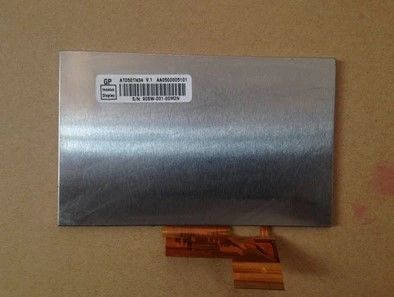

Large Image :  AT050TN34 Innolux 5.0" 480(RGB)×272 400 cd/m² INDUSTRIAL LCD DISPLAY

Product Details:
Place of Origin: JAPAN
Brand Name: INNOLUX
Certification: ISO9001
Model Number: AT050TN34
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Packaging Details: STANDARD PACKING
Delivery Time: 1-2 DAYS
Payment Terms: TT/PAYPAL/ESCROW/WESTERN UNION
Supply Ability: 500PCS

AT050TN34 Innolux 5.0" 480(RGB)×272 400 cd/m² INDUSTRIAL LCD DISPLAY

Description
MODEL NUMBER: AT050TN34 BRAND: INNOLUX
SIZE: 5.0INCH RESOLUTION: 480(RGB)×272, WQVGA, 109PPI
BRIGHTNESS: 400 Cd/m² (Typ.) Signal Interface: LVDS
VIEWING ANGLEG: 70/70/50/70 (Typ.)(CR≥10 TEMPERATURE RANGE: Operating Temp.: -10 ~ 60 °C ; Storage Temp.: -20 ~ 70 °C
High Light:

WVGA Industrial TFT Display

,

NTSC Lcd Video Panel

Innolux AT050TN34 Application Features

Basic Information : Brand Name Model Name Type Model Alias
  AT050TN34 a-Si TFT-LCD , LCM -
Maximum Ratings : RoHS Operating Temperature Storage Temperature Vibration Level
  -10 ~ 60 °C -20 ~ 70 °C -
Application :
Typical Features :





  •
Remarks : 3 in 1 FPC



Innolux AT050TN34 Mechanical Features

Screen Size : 5.0"
Pixel Features : Pixel Number Pixel Format Dot Pitch (H×V) Pixel Pitch (H×V)
480(RGB)×272, WQVGA RGB Vertical Stripe 0.077×0.231 mm 0.231×0.231 mm [109PPI]
Mechanical Size : Display Area (H×V) Bezel Opening (H×V) Overall Dimension (H×V) Overall Depth
110.88×62.832 mm 113.90×65.85 mm 120.7×75.8 mm 4.25±0.2 mm
Outline Features : Form Shape Aspect Ratio (H:V) Orientation Shape Style
Flat Rectangle 16:9 Landscape type
Touch Panel : Touch Points Signal Type Controller Technology
- - Without touch controller 4-wire Resistive Touch, F/G
Other Spec : Mass Panel Cover Surface Treatment
83.0g (Typ.) - Antiglare



Innolux AT050TN34 Optical Features

Basic Information : Luminance Work Mode Contrast Ratio
400 cd/m² (Typ.) TN, Normally White, Transmissive 500:1 (Typ.) (Transmissive)
Good View at Viewing Angle Response Time
6 o'clock 70/70/50/70 (Typ.)(CR≥10)AT050TN34 Innolux 5.0" 480(RGB)×272 400 cd/m² INDUSTRIAL LCD DISPLAY 0 10/15 (Typ.)(Tr/Td) (ms)
Dispaly Color : Color Temperature: Support Color Color Coordinate
6638K 16.7M (8-bit) X:0.310; Y:0.330
White Uniformity : 1.33/1.43 (Typ./Max.)(9 points)



Innolux AT050TN34 Electronics Features

Reverse Scan : No
Power Consumption : 855mW (Typ.)
Time Controller (T-CON) : Embedded T-CON



Innolux AT050TN34 Backlight Features

Back-light Features: Type Position Life(Hours) Amount  Shape Replacement
WLED Edge light type 20K(Min.) 6S2P Array -
WLED Electrical : Input Voltage Input Current Power Consumption
19.8±1.2V 40±4mA 792mW (Typ.)
Interface Features : WLED Driver State Physical Type Interface Position
No Included in panel signal interface



Innolux AT050TN34 Interface Features

Signal Electrical : Input Voltage Input Current Power Consumption
3.3V (Typ.) 19/25mA (Typ./Max.) 63mW (Typ.)
Voltage for Display Signals : GND≤VIL≤0.2VDD; 0.8VDD≤VIH≤VDD
Interface Features : Signal Type Physical Type Interface Position
Parallel RGB (1 ch, 8-bit) FPC -
Interface Detail : Brand Name Model Name Amount Pins Pin Pitch Pin Configuration
    1 pcs 40 pins 0.5 mm DRGB-40P1C8B-080A



Innolux AT050TN34 Packing Features

Package Box : Amount Weight Size (L×W×H)
100 pcs / box 9.899±5% Kg 530×355×255 mm (L×W×H)

FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.

AT050TN34 Innolux 5.0" 480(RGB)×272 400 cd/m² INDUSTRIAL LCD DISPLAY 1
