Product Details:
|
Panel Size: | 15.6" | Panel Brand: | Sharp |
---|---|---|---|
Panel Model: | LQ156D1JW06 | Response Time: | 25 (Typ.)(Tr+Td) |
Lamp Type: | WLED , 15K Hours , With LED Driver | Signal Interface: | EDP (4 Lanes) , 40 Pins Connector |
Viewing Angle: | 89/89/89/89 (Typ.)(CR≥10) | Brightness: | 300 Cd/m² (Typ.) |
Resolution: | 3840(RGB)×2160, UHD, 282PPI | Environment: | Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C |
High Light: | XGA Industrial LCD Panel,SVGA Sharp TFT LCD Screen |
LQ156 Series LQ156D1JW37 LQ156D1JW33 LQ156D1JW31 LQ156D1JW06
Basic Info : | |
---|---|
Reliability : |
Pixel Features : | |
---|---|
Mechanical Size : | |
Outline Features : | |
Holes & Brackets : | |
Other Features : |
Basic Information : | |
---|---|
Color Performance : | |
1931 Color Gamlt : |
Frame Frequency : | |
---|---|
Reverse Scan : | |
Power Consumption : |
Back-light Features : | |
---|---|
Interface Features : | |
Driver Electrical : |
Signal Systerm : | |
---|---|
Signal Electrical : | |
Interface Features : | |
Connector Detail : |
|

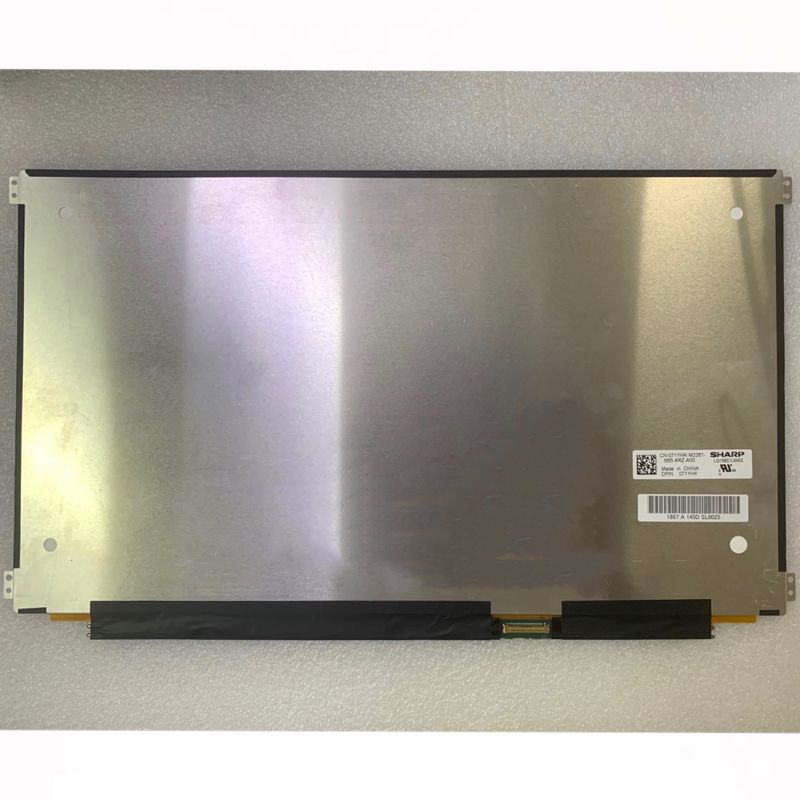

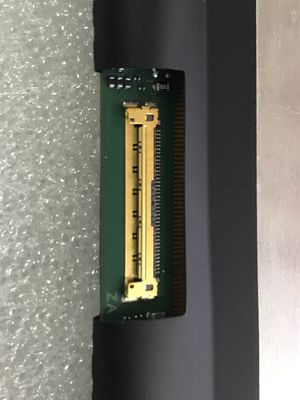

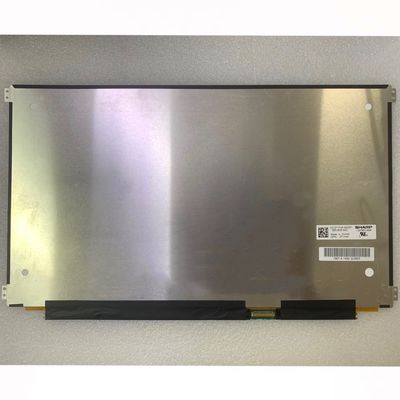

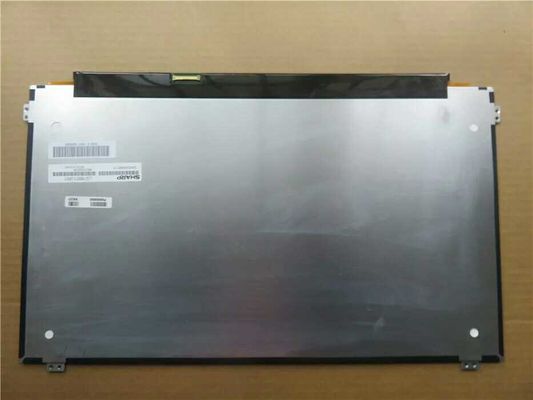

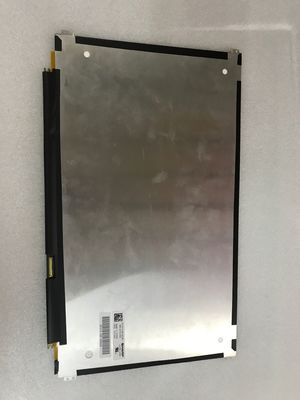

LQ156D1JW06 supports display 3840(RGB)×2160 (UHD) with aspect ratio of 16:9 (W:H), whose pixels are arranged in RGB Vertical Stripe, according to calculation of Panelook it's pixel density is 282 PPI. As for mechanical detail, it features active area of 345.6(W)×194.4(H) mm, outline size of 367.98(W)×218.31(H)×3.2(D) mm, with surface treament of Antiglare (Haze 42%), Hard coating (3H), net weight of 370/400g (Typ./Max.), shape stype of Slim (PCBA Flat, T≤3.2mm). As a IPS, Normally Black, Transmissive LCM product, LQ156D1JW06 can provides 300 cd/m² display brightness 1000:1 transimissive contrast ratio, 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 25 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 100% (sRGB). This product adopted WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 15K hours, With LED Driver. LQ156D1JW06 utilizes eDP (4 Lanes) as it's signal inputting systerm, which connected by 40 pins Connector with power supply voltage of 3.3V (Typ.).
