LQ156D1JX01 Sharp 15.6" LCM 3840×2160RGB  330cd/m² INDUSTRIAL LCD DISPLAY

LQ156D1JX01	Sharp  15.6"  LCM	3840×2160RGB   330cd/m²   INDUSTRIAL LCD DISPLAY
LQ156D1JX01	Sharp  15.6"  LCM	3840×2160RGB   330cd/m²   INDUSTRIAL LCD DISPLAY LQ156D1JX01	Sharp  15.6"  LCM	3840×2160RGB   330cd/m²   INDUSTRIAL LCD DISPLAY LQ156D1JX01	Sharp  15.6"  LCM	3840×2160RGB   330cd/m²   INDUSTRIAL LCD DISPLAY

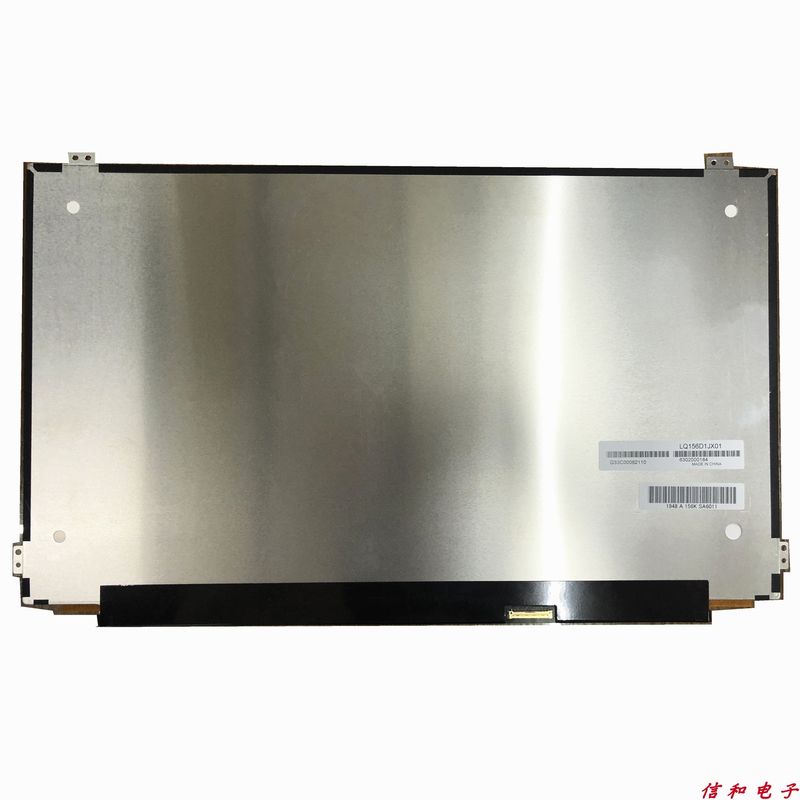

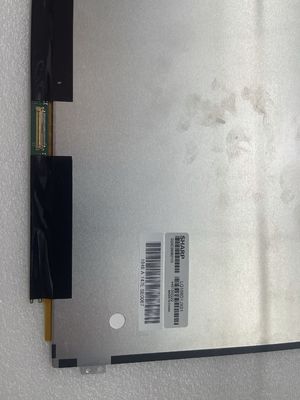

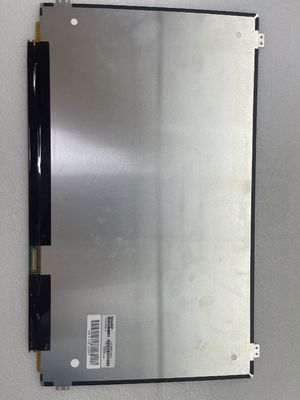

Large Image :  LQ156D1JX01 Sharp 15.6" LCM 3840×2160RGB  330cd/m² INDUSTRIAL LCD DISPLAY

Product Details:
Place of Origin: JAPAN
Brand Name: SHARP
Certification: ISO9001
Model Number: LQ156D1JX01
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Packaging Details: 30 pcs / box 479×574×247 mm 17.0 Kgs
Delivery Time: 1-2 DAYS
Payment Terms: TT/PAYPAL/WESTERN UNION/ESCROW
Supply Ability: 1000PCS

LQ156D1JX01 Sharp 15.6" LCM 3840×2160RGB  330cd/m² INDUSTRIAL LCD DISPLAY

Description
Panel Model: LQ156D1JX01 Panel Brand: Sharp
Panel Size: 15.6" Signal Interface: EDP (4 Lanes) , 40 Pins Connector
Lamp Type: WLED , 10K Hours , With LED Driver Brightness: 330 Cd/m² (Typ.)
Resolution: 3840(RGB)×2160, UHD, 282PPI Environment: Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C
High Light:

XGA Industrial LCD Panel

,

SVGA Sharp TFT LCD Screen

LQ156 Series LQ156D1JX03 LQ156D1JX01B LQ156D1JX01



Sharp LQ156D1JX01 Optical Details

Basic Information : Luminance 330 cd/m² (Typ.) Contrast Ratio 1000 : 1 (Typ.) (Transmissive)
Good View at Symmetry Response Speed 25 (Typ.)(Tr+Td) (ms)
Viewing Angle 88/88/88/88 (Typ.)(CR≥10)  Operating Mode IPS, Normally Black, Transmissive
Color Performance : Chromaticity Wx:0.313; Wy:0.329 Support Color 16.7M (8-bit)
Color Temperature 6485K White Uniformity 1.25/1.40 (Typ./Max.)(5 points)
1931 Color Gamlt : NTSC Ratio 71% sRGB 100% coverage
Adobe RGB 74% coverage DCI-P3 74% coverage
Rec.2020 53% coverage Remarks sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)





Sharp LQ156D1JX01 Mechanical Details

Pixel Features : Number of Pixel 3840(RGB)×2160 [UHD] Arrangement RGB Vertical Stripe
Dot Pitch(W×H) 0.030×0.090 mm Pixel Pitch(W×H) 0.090×0.090 mm [282PPI]
Physical Size : Active Viewing 345.6(W)×194.4(H) mm Overall Dim. 367.98(W)×224.61(H) mm
Bezel Opening - Overall Depth 3.10±0.3 mm
Outline Features : Form Shape Flat Rectangle Orientation Landscape type
Aspect Ratio(W:H) 16:9 Shape Style Slim (PCBA Flat, T≤3.2mm)
Fixation : Face mounting holes (8 pcs) on left, right, up slugs
Other Detail : Mass 320/345g (Typ./Max.) Surface Glare (Haze 0%), Hard coating (3H)





Sharp LQ156D1JX01 Interface Details

Signal Electrical : Input Current 440/950mA (Typ./Max.) Input Voltage 3.3V (Typ.)
Consumption 1.45/3.14W (Typ./Max.) Signal Interface eDP (4 Lanes)
Interface Features : Position   Physical Type Connector
Signal Interface : Brand Model Amount Pin Pitch Pin Amount Pin Assignment
I-PEX 20525-040E-02 1 pcs 0.4 mm 40 pins





Sharp LQ156D1JX01 Lightting Details

Lamp Features: Lamp Shape - Lamp Type WLED Position Edge light type
Exchange - Amount - Life 10K(Typ.) (Hours)
Interface Features : Position - Physical Type Included in panel signal interface
Backlight Driver : With LED Driver
Driver Electrical : Input Current 322/598mA (Typ./Max.) Input Voltage 7.0/12.0/21.0V (Min./Typ./Max.)
Consumption 3.84W (Typ.)





LQ156D1JX01 supports display 3840(RGB)×2160 (UHD) with aspect ratio of 16:9 (W:H), whose pixels are arranged in RGB Vertical Stripe, according to calculation of Panelook it's pixel density is 282 PPI. As for mechanical detail, it features active area of 345.6(W)×194.4(H) mm, outline size of 367.98(W)×224.61(H)×3.4(D) mm, with surface treament of Glare (Haze 0%), Hard coating (3H), net weight of 320/345g (Typ./Max.), shape stype of Slim (PCBA Flat, T≤3.2mm). As a IPS, Normally Black, Transmissive LCM product, LQ156D1JX01 can provides 330 cd/m² display brightness 1000:1 transimissive contrast ratio, 88/88/88/88 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 25 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 100% (sRGB). This product adopted WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 10K hours, With LED Driver. LQ156D1JX01 utilizes eDP (4 Lanes) as it's signal inputting systerm, which connected by 40 pins Connector with power supply voltage of 3.3V (Typ.).
