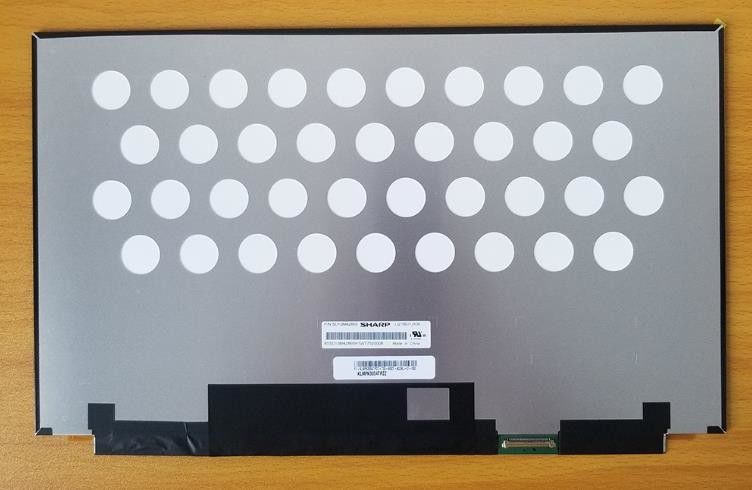

Product Details:
|
| Panel Model: | LQ156D1JX36x | Panel Size: | 15.6" |
|---|---|---|---|
| Resolution: | 3840(RGB)×2160, UHD, 282PPI | Lamp Type: | WLED , 15K Hours , With LED Driver |
| Viewing Angle: | 89/89/89/89 (Typ.)(CR≥10) | Brightness: | 300 Cd/m² (Typ.) |
| Signal Interface: | EDP (4 Lanes) , 40 Pins Connector | Environment: | Operating Temp.: 0 ~ 60 °C ; Storage Temp.: -20 ~ 70 °C |
| High Light: | XGA Industrial LCD Panel,SVGA Sharp TFT LCD Screen |
||
LQ156 Series LQ156D1JX36x LQ156D1JX36 LQ156D1JX06

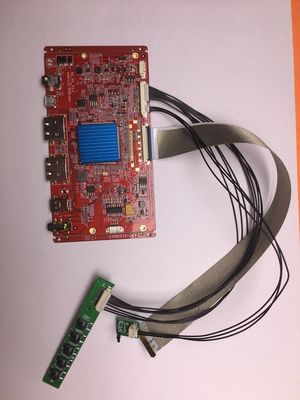

| Basic Information : | Brand | SHARP | Model | LQ156D1JX36x |
|---|---|---|---|---|
| Type | LCM Oxide TFT-LCD | Used For | ||
| Screen Size | 15.6" | Alias | SHP1480 | |
| Environment : | Storage Temp. | -20 ~~ 70 °C | Operating Temp. | 0 ~~ 60 °C |
| RoHS | Vibration | - |
| Basic Information : | Luminance(cd/m²) | 300 (Typ.) | Contrast Ratio | 1500:1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) | Display Mode | IPS, Normally Black, Transmissive | |
| Best View on | Symmetry | Response(ms) | 33 (Typ.)(Tr+Td) | |
| Color Performance : | White Coordinate | X:0.313; Y:0.329 | Display Colors | 16.7M (8-bit) |
| Color Temperature | 6485K | White Uniformity | 1.25 (Max.)(9 points) | |
| 1931 Color Gamlt : | NTSC Ratio | 71% | sRGB | 100% coverage |
| Adobe RGB | 74% coverage | DCI-P3 | 74% coverage | |
| Rec.2020 | 53% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
| Signal Electrical : | Voltage Supply | 3.3V (Typ.) | Current Supply | 540/700mA (Typ./Max.) | ||
|---|---|---|---|---|---|---|
| Consumption | 1.71/2.1W (Typ./Max.) | |||||
| Signal Type : | eDP (4 Lanes) | Signal Voltage | - | |||
| Interface Features : | Position | - | Type | Connector | ||
| Interface Detail : | Brand | Model | Quantity | Pins | Pitch | Pin Configuration |
| I-PEX | 20455-040E-76 | 1 pcs | 40 pins | 0.5 mm | ||
| Pixel Features : | Resolution | 3840(RGB)×2160, UHD | Dot Pitch(mm) | 0.030×0.090 (H×V) |
|---|---|---|---|---|
| Pixel Format | RGB Vertical Stripe | Pixel Pitch(mm) | 0.090×0.090 (H×V) [282PPI] | |
| Mechanical Size : | Active Area(mm) | 345.6(H) × 194(V) | Bezel Area(mm) | - |
| Outline Dim.(mm) | 351.9(H) × 217.2(V) | Depth(mm) | 2.45/2.75 (Typ./Max.) | |
| Outline Features : | Form Style | Flat Rectangle | Outline Shape | Slim (PCBA Flat, T≤3.2mm) |
| Aspect Ratio | 16:9 (H:V) | Orientation | Landscape type | |
| Mounting : | Without | |||
| Other Spec : | Weight | 300/320g (Typ./Max.) | Treatment | Glare (Haze 0%), Hard coating (3H) |
| Frame Rate : | 60Hz |
|---|---|
| Reverse Scan : | No |
| Backlight Features: | Shape | - | Type | WLED | Position | Edge light type |
|---|---|---|---|---|---|---|
| Replacement | - | Quantity | - | Life Time | 15K(Min.) (Hours) | |
| Interface Features : | Position | - | Type | Included in panel signal interface | ||
| Backlight Driver : | With LED Driver | |||||
| Driver Electrical : | Voltage Supply | 5.0/12.0/21.0V (Min./Typ./Max.) | Current Supply | 330/377mA (Typ./Max.) | ||
| Consumption | 3.96/4.52W (Typ./Max.) | |||||
LQ156D1JX36x supports display 3840(RGB)×2160 (UHD) with aspect ratio of 16:9 (W:H), whose pixels are arranged in RGB Vertical Stripe, according to calculation of Panelook it's pixel density is 282 PPI. As for mechanical detail, it features active area of 345.6(W)×194(H) mm, outline size of 351.9(W)×217.2(H)×2.75(D) mm, with surface treament of Glare (Haze 0%), Hard coating (3H), net weight of 300/320g (Typ./Max.), shape stype of Slim (PCBA Flat, T≤3.2mm). As a IPS, Normally Black, Transmissive LCM product, LQ156D1JX36x can provides 300 cd/m² display brightness 1500:1 transimissive contrast ratio, 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 33 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 100% (sRGB). This product adopted WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 15K hours, With LED Driver. LQ156D1JX36x utilizes eDP (4 Lanes) as it's signal inputting systerm, which connected by 40 pins Connector with power supply voltage of 3.3V (Typ.).
