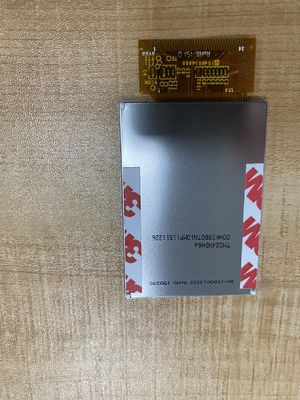

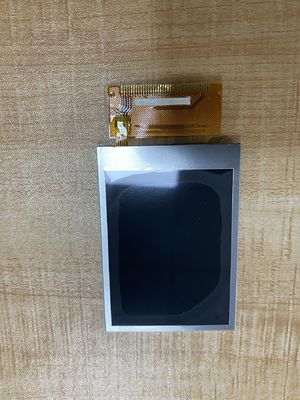

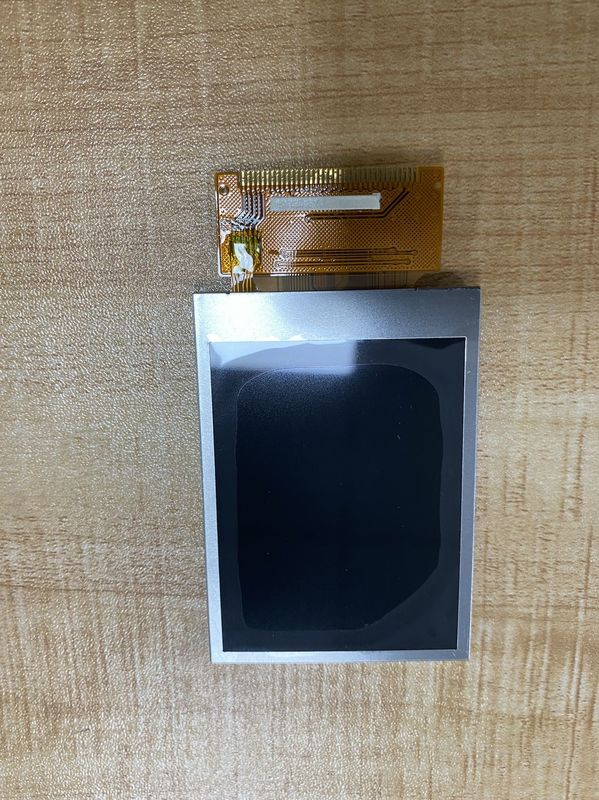

Product Details:
|
| MODEL NUMBER: | TM024HBH45 | BRAND: | TIANMA |
|---|---|---|---|
| SIZE: | 2.4 Inch | RESOLUTION: | 240(RGB)×320, QVGA, 166PPI |
| BRIGHTNESS: | 180 Cd/m² (Typ.) | Viewing Angle: | 70/70/70/60 (Typ.)(CR≥10) |
| TEMPERATURE RANGE: | Operating Temp.: -20 ~ 60 °C ; Storage Temp.: -30 ~ 70 °C | ||
| High Light: | RGB 240×320 Tianma TFT,180cd/m2 Tianma TFT,QVGA 166PPI Tianma Lcd Panel |
||
| Basic Information : | Brand Name | Model Name | Type | Model Alias |
|---|---|---|---|---|
 |
TM024HBH45 | a-Si TFT-LCD , LCM | - | |
| Maximum Ratings : | RoHS | Operating Temperature | Storage Temperature | Vibration Level |
|
-20 ~ 60 °C | -30 ~ 70 °C | - | |
| Application : |
|
|||
| Typical Features : |
|
|||
| Remarks : | 3 in 1 FPC; Down side FPC (13.2mm length) | |||
| Screen Size : | 2.4" | |||
|---|---|---|---|---|
| Pixel Features : | Pixel Number | Pixel Format | Dot Pitch (H×V) | Pixel Pitch (H×V) |
| 240(RGB)×320, QVGA | RGB Vertical Stripe | 0.051×0.153 mm | 0.153×0.153 mm [166PPI] | |
| Mechanical Size : | Display Area (H×V) | Bezel Opening (H×V) | Overall Dimension (H×V) | Overall Depth |
| 36.72×48.96 mm | 38.72×54.86 mm | 42.72×60.26 mm | 3.6±0.15 mm | |
| Outline Features : | Form Shape | Aspect Ratio (H:V) | Orientation | Shape Style |
| Flat Rectangle | 3:4 | Portrait type | ||
| Touch Panel : | Touch Points | Signal Type | Controller | Technology |
| - | - | Without touch controller | 4-wire Resistive Touch | |
| Other Spec : | Mass | Panel Cover | Surface Treatment | |
| 16.9g (Typ.) | - | Clear | ||
| Basic Information : | Luminance | Work Mode | Contrast Ratio |
|---|---|---|---|
| 180 cd/m² (Typ.) | TN, Normally White, Transmissive | 500:1 (Typ.) (Transmissive) | |
| Good View at | Viewing Angle | Response Time | |
| 6 o'clock | 70/70/70/60 (Typ.)(CR≥10) |
20 (Typ.)(Tr+Td) (ms) | |
| Dispaly Color : | Color Temperature: | Support Color | Color Coordinate |
| 8827K | 262K (6-bit) | X:0.285; Y:0.305 | |
| 1931 Color Gamlt : | NTSC Ratio | sRGB Coverage | Adobe RGB Coverage |
| 52% | 73% | 55% | |
| DCI-P3 Coverage | Rec.2020 Coverage | Remarks | |
| 54% | 39% | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) | |
| White Uniformity : | 1.25 (Typ.)(9 points) |
||
| Reverse Scan : | No |
|---|---|
| Driver IC List: | Built-in HX8347G |
| Back-light Features: | Type | Position | Life(Hours) | Amount |
Shape | Replacement |
|---|---|---|---|---|---|---|
| WLED | Edge light type | 20K(Typ.) | 1S4P | Parallel | - | |
| WLED Electrical : | Input Voltage | Input Current | Power Consumption |
|||
| 3.2V (Typ.) | 15mA (Typ.) | 192mW (Typ.) | ||||
| Interface Features : | WLED Driver State | Physical Type | Interface Position | |||
| No | Included in panel signal interface | |||||
| Signal Electrical : | Input Voltage | Input Current | Power Consumption | |||
|---|---|---|---|---|---|---|
| 1.8/2.8V (Typ.)(IOVCC/VCC) | - | - | ||||
| Interface Features : | Signal Type | Physical Type | Interface Position | |||
| 8/9/16/18-bit 8080 parallel | FPC | - | ||||
| Interface Detail : | Brand Name | Model Name | Amount | Pins | Pin Pitch | Pin Configuration |
| 1 pcs | 39 pins | 0.7 mm | ||||
