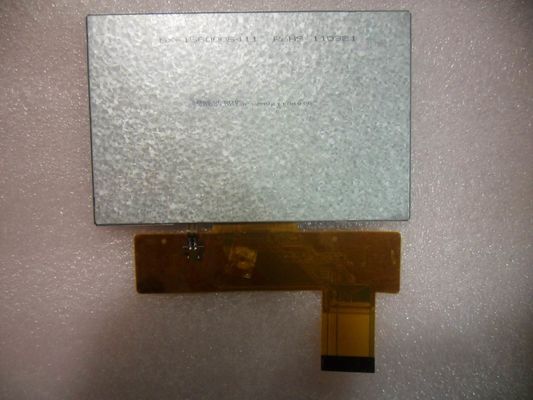

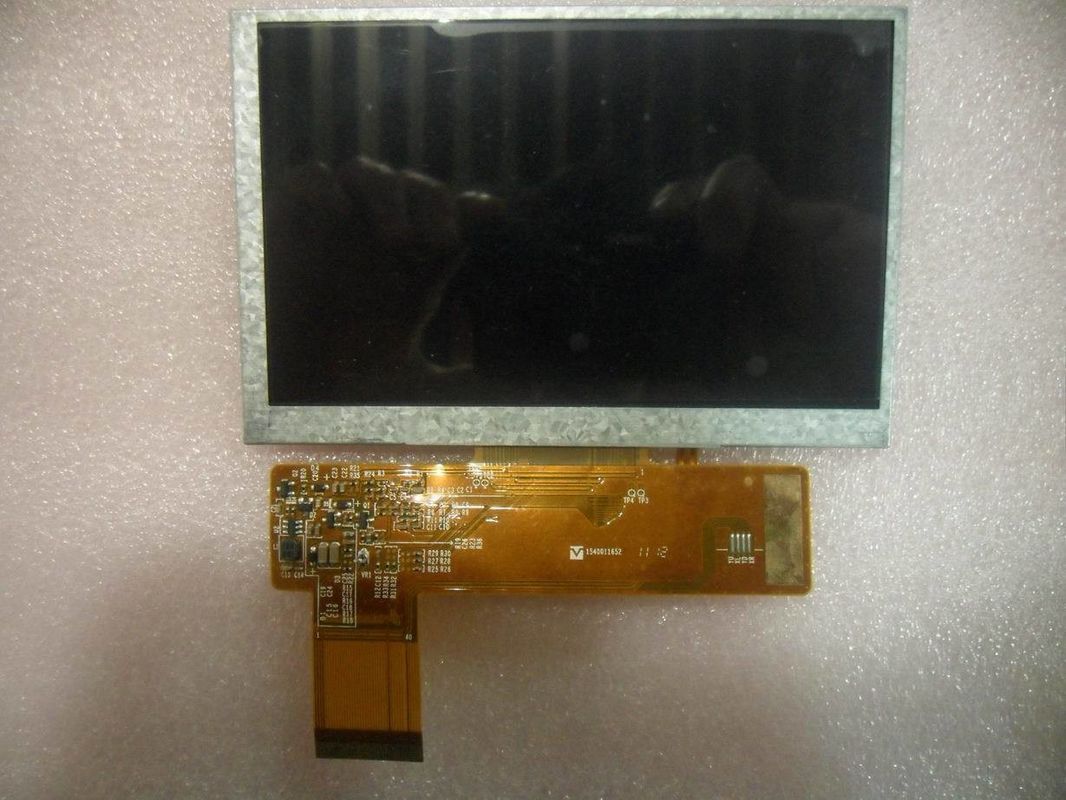

Product Details:
|
| MODEL NUMBER: | TM050RDH05 | BRAND: | TIANMA |
|---|---|---|---|
| SIZE: | 5.0 Inch | RESOLUTION: | 00(RGB)×480 [WVGA] 188PPI |
| BRIGHTNESS: | 250 Cd/m² (Typ.) | Viewing Angle: | 70/70/50/70 (Typ.)(CR≥10) |
| TEMPERATURE RANGE: | Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C | ||
| High Light: | 5.0" 800×480 Tianma Tft Display,250nits Tianma Tft Display,TM050RDH05 TIANMA |
||
| Basic Information : | Luminance | Work Mode | Contrast Ratio |
|---|---|---|---|
| 250 cd/m² (Typ.) | TN, Normally White, Transmissive | 600:1 (Typ.) (Transmissive) | |
| Good View at | Viewing Angle | Response Time | |
| 6 o'clock | 70/70/50/70 (Typ.)(CR≥10) | 20 (Typ.)(Tr+Td) (ms) | |
| Dispaly Color : | Color Temperature: | Support Color | Color Coordinate |
| 6638K | 16.7M (8-bit) | X:0.310; Y:0.330 | |
| 1931 Color Gamut : | NTSC Ratio | sRGB Coverage | Adobe RGB Coverage |
| 49% | 69% | 52% | |
| DCI-P3 Coverage | Rec.2020 Coverage | Remarks | |
| 51% | 37% | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) | |
| White Uniformity : | 1.25/1.33 (Typ./Max.)(9 points) | ||
| Screen Size : | 5.0" | |||
|---|---|---|---|---|
| Pixel Features : | Pixel Number | Pixel Format | Dot Pitch (H×V) | Pixel Pitch (H×V) |
| 800(RGB)×480, WVGA | RGB Vertical Stripe | 0.045×0.135 mm | 0.135×0.135 mm [188PPI] | |
| Mechanical Size : | Display Area (H×V) | Bezel Opening (H×V) | Overall Dimension (H×V) | Overall Depth |
| 108×64.8 mm | 111.1×67.9 mm | 118.5×77.55 mm | 3.4±0.3 mm | |
| Outline Features : | Form Shape | Aspect Ratio (H:V) | Orientation | Shape Style |
| Flat Rectangle | 15:9 | Landscape type | ||
| Other Spec : | Mass | Panel Cover | Surface Treatment | |
| TBD | - | Antiglare, Hard coating (3H) | ||
| Back-light Features: | Type | Position | Life(Hours) | Amount | Shape | Replacement |
|---|---|---|---|---|---|---|
| WLED | Edge light type | 20K(Min.) | 7S2P | Array | - | |
| WLED Electrical : | Input Voltage | Input Current | Power Consumption | |||
| 21.7V (Typ.) | 40mA (Typ.) | 868mW (Typ.) | ||||
| Interface Features : | WLED Driver State | Physical Type | Interface Position | |||
| No | Included in signal interface | - | ||||
