Product Details:
|

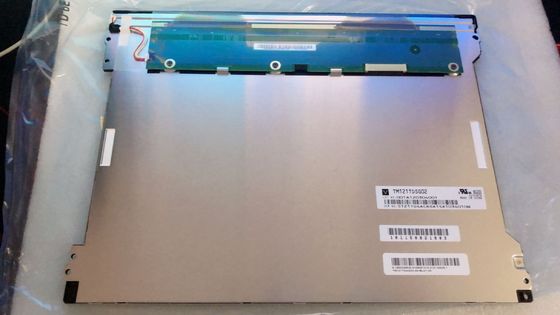

| MODEL NUMBER: | TM121TDSG01 | BRAND: | TIANMA |
|---|---|---|---|
| SIZE: | 12.1INCH | RESOLUTION: | 1024(RGB)×768 [XGA] 105PPI |
| BRIGHTNESS: | 450CD/M2 | Viewing Angle: | 80/80/70/80 (Typ.)(CR≥10) |
| TEMPERATURE RANGE: | Operating Temperature: -30 ~ 80 °C ; Storage Temperature: -30 ~ 80 °C | SIGNAL LNTERFACE: | LVDS |
| High Light: | RGB 1024×768 Tianma TFT,450cd/m2 Tianma TFT,XGA 105PPI Tianma Lcd Screen |
||
| Basic Information : | Brand |  |
Model | TM121TDSG01 |
|---|---|---|---|---|
| Type | LCM a-Si TFT-LCD | Used For |
|
|
| Screen Size | 12.1" | Alias | - | |
| Environment : | Storage Temp. | -30 ~~ 80 °C | Operating Temp. | -30 ~~ 80 °C |
| RoHS | |
Vibration | 1.2G (11.76 m/s²) | |
| Typical Features : |
|
|||
| Pixel Features : | Resolution | 1024(RGB)×768, XGA | Dot Pitch(mm) | 0.080×0.240 (H×V) |
|---|---|---|---|---|
| Pixel Format | RGB Vertical Stripe | Pixel Pitch(mm) | 0.240×0.240 (H×V) [105PPI] | |
| Mechanical Size : | Active Area(mm) | 245.76(H) × 184.32(V) | Bezel Area(mm) | 250.8(H) × 189.4(V) |
| Outline Dim.(mm) | 279(H) × 209(V) | Depth(mm) | 6.0/9.0 (Typ./Max.) | |
| Outline Features : | Form Style | Flat Rectangle | Outline Shape | |
| Aspect Ratio | 4:3 (H:V) | Orientation | Landscape type | |
| Mounting : | Face mounting holes (3-Φ3.4, 3-R1.7) on left, right bezel | |||
| Other Spec : | Weight | TBD | Treatment | Antiglare |
| Basic Information : | Luminance(cd/m²) | 450 (Typ.) | Contrast Ratio | 700:1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Viewing Angle | 80/80/70/80 (Typ.)(CR≥10) |
Display Mode | TN, Normally White, Transmissive | |
| Best View on | 12 o'clock | Response(ms) | 35 (Typ.)(Tr+Td) | |
| Color Performance : | White Coordinate | - | Display Colors | 262K/16.7M (6-bit / 6-bit + Hi-FRC) |
| Color Temperature | - | White Uniformity | 1.25/1.33 (Typ./Max.)(9 points) |
| Frame Rate : | 60Hz Reverse Scan :
| Yes (180°) |
|---|---|---|
| Power Consumption : | 6.4W (Typ.) |
| Signal Electrical : | Voltage Supply | 3.3V (Typ.) | Current Supply | - | ||
|---|---|---|---|---|---|---|
| Signal Type : | LVDS (1 ch, 6/8-bit) | Signal Voltage | - | |||
| Interface Features : | Position | - | Type | Connector | ||
| Interface Detail : | Brand | Model | Quantity | Pins | Pitch | Pin Configuration |
| STM | MSB240420HE | 1 pcs | 20 pins | 1.25 mm | LVDS-20P1C8B-080G | |
| Backlight Features: | Shape | 2 strings | Type | WLED | Position | Edge light type |
|---|---|---|---|---|---|---|
| Replacement | - | Quantity | 9S2P | Life Time | 50K(Typ.) (Hours) | |
| Lamp Electrical : | Voltage Supply | 28.8V (Typ.) | Current Supply | 70mA (Typ.) | ||
| Consumption | 4.03W (Typ.) |
|||||
| Backlight Driver : | No | |||||
| Package Box : | Quantity | Weight | Box Size |
|---|---|---|---|
| 10 pcs / box | - | 395×311×377 mm (L×W×H) |
