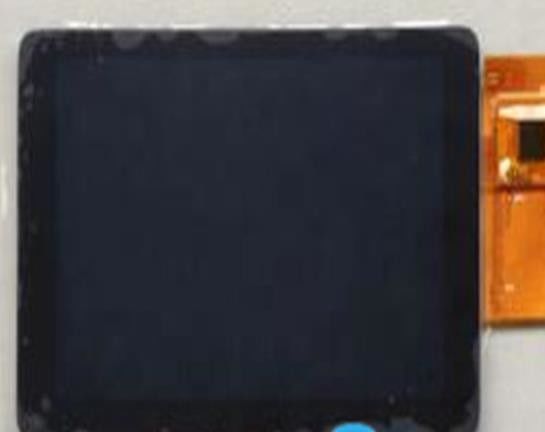

Product Details:
|
| MODEL NUMBER: | TM041XDHC02 | BRAND: | TIANMA |
|---|---|---|---|
| SIZE: | 4.1INCH | RESOLUTION: | 720(RGB)×720, 247PPI |
| BRIGHTNESS: | 300CD/M2 | Viewing Angle: | 80/80/80/80 (Typ.)(CR≥10) |
| TEMPERATURE RANGE: | Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C | ||
| High Light: | Antiglare NEC TFT Display,QVGA Square Tft Display,VGA Lcd Video Panel |
||
| Basic Detail : | Manufacturer |  |
Model Name | TM041XDHC02 |
|---|---|---|---|---|
| Panel Type | a-Si TFT-LCD , LCM | Another Name | - | |
| Panel Size | 4.1 inch | Designed For |
|
|
| Maximum Ratings : | OP Temperature | -20 ~ 70 °C | ST Temperature | -30 ~ 80 °C |
| Vibration Level | - | RoHS | |
|
| Features : |
|
|||
| Basic Information : | Luminance | 300 cd/m² (Typ.) | Contrast Ratio | 1200 : 1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Good View at | Symmetry | Response Speed | 35 (Typ.)(Tr+Td) (ms) | |
| Viewing Angle | 80/80/80/80 (Typ.)(CR≥10) |
Operating Mode | SFT, Normally Black, Transmissive | |
| Color Performance : | Chromaticity | Wx:0.279; Wy:0.295 | Support Color | 16.7M (8-bit) |
| Color Temperature | 9816K | White Uniformity | 1.25/1.43 (Typ./Max.)(9 points) |
|
| 1931 Color Gamlt : | NTSC Ratio | 68% | sRGB | 94% coverage |
| Adobe RGB | 71% coverage | DCI-P3 | 70% coverage | |
| Rec.2020 | 51% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
| Pixel Features : | Number of Pixel | 720(RGB)×720 | Arrangement | RGB Vertical Stripe |
|---|---|---|---|---|
| Dot Pitch(W×H) | 0.03425×0.10275 mm | Pixel Pitch(W×H) | 0.10275×0.10275 mm [247PPI] | |
| Physical Size : | Active Viewing | 73.98(W)×73.98(H) mm | Overall Dim. | 77.98(W)×82(H) mm |
| Bezel Opening | 74.78(W)×74.78(H) mm | Overall Depth | 2.13 (Typ.) mm | |
| Outline Features : | Form Shape | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio(W:H) | 1:1 | Shape Style | ||
| Touchscreen : | TP Controller | With touch controller | TP Interface | I²C |
| Touch Points | 2 points | TP Technology | In-Cell Touch | |
| Other Detail : | Mass | 27.5g (Typ.) | Surface | Hard coating |
| Reverse Scan : | No |
|---|---|
| Driver IC : | COG Built-in ILI9881H |
| Signal Electrical : | Input Current | - | Input Voltage | 1.8/3.3/5.7/-5.7V (Typ.)(IOVCC/VCCB/AVDD/AVEE) | ||
|---|---|---|---|---|---|---|
| Consumption | 80mW (Typ.) | Signal Interface | MIPI (4 data lanes) | |||
| Interface Features : | Position | - | Physical Type | FPC | ||
| Signal Interface : | Brand | Model | Amount | Pin Pitch | Pin Amount | Pin Assignment |
| 1 pcs | 0.5 mm | 40 pins | ||||
| Lamp Features: | Lamp Shape | Array | Lamp Type | WLED | Position | Edge light type |
|---|---|---|---|---|---|---|
| Exchange | - | Amount | 3S4P | Life | 30K(Typ.) (Hours) | |
| Lamp Electrical : | Input Current | 80/100mA (Typ./Max.) | Input Voltage | 9.8/11.05V (Typ./Max.) | ||
| Consumption | 0.78/1.11W (Typ./Max.) |
|||||
| Interface Features : | Position | - | Physical Type | Included in panel signal interface | ||
| Backlight Driver : | No | |||||
