TM081JDH02 TIANMA 8.1" 800(RGB)×1280 350 cd/m² INDUSTRIAL LCD DISPLAY

TM081JDH02 TIANMA 8.1" 800(RGB)×1280 350 cd/m² INDUSTRIAL LCD DISPLAY

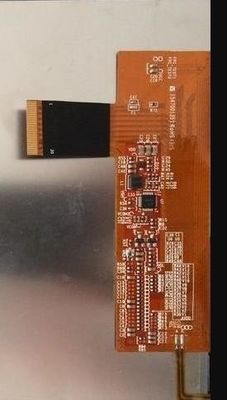

TM081JDH02 TIANMA 8.1" 800(RGB)×1280 350 cd/m² INDUSTRIAL LCD DISPLAY TM081JDH02 TIANMA 8.1" 800(RGB)×1280 350 cd/m² INDUSTRIAL LCD DISPLAY TM081JDH02 TIANMA 8.1" 800(RGB)×1280 350 cd/m² INDUSTRIAL LCD DISPLAY

Large Image :  TM081JDH02 TIANMA 8.1" 800(RGB)×1280 350 cd/m² INDUSTRIAL LCD DISPLAY

Product Details:
Place of Origin: JAPAN
Brand Name: TIANMA
Certification: ISO9001
Model Number: TM081JDH02
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Packaging Details: STANDARD PACKING
Delivery Time: 1-2 DAYS
Payment Terms: TT/PAYPAL/ESCROW/WESTERN UNION
Supply Ability: 600PCS
Contact Now

TM081JDH02 TIANMA 8.1" 800(RGB)×1280 350 cd/m² INDUSTRIAL LCD DISPLAY

Description
MODEL NUMBER: TM081JDH02 BRAND: TIANMA
SIZE: 8.1INCH RESOLUTION: 800(RGB)×1280 [WXGA] 187PPI
BRIGHTNESS: 350 Cd/m² (Typ.) Lamp Type: WLED
SIGNAL LNTERFACE: LVDS Viewing Angle: 70/70/60/70 (Typ.)(CR≥10)
TEMPERATURE RANGE: Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C
High Light:

XGA TIANMA LCD Screen

,

WQVGA TIANMA TFT LCD

TIANMA TM081JDH02 Application Details

Basic Detail :
Manufacturer

Model Name
TM081JDH02
Panel Type
a-Si TFT-LCD , LCM
Another Name
-
Panel Size
8.1 inch
Designed For
Maximum Ratings :
OP Temperature
-20 ~ 70 °C
ST Temperature
-30 ~ 80 °C
RoHS

Vibration Level
-
Features :




  • Matte



TIANMA TM081JDH02 Optical Details

Basic Detail :
Luminance
350 cd/m² (Typ.)
Contrast Ratio
600:1 (Typ.) (Transmissive)
Good View at
12 o'clock
Response Speed
25 (Typ.)(Tr+Td) ms
Viewing Angle
70/70/60/70 (Typ.)(CR≥10)
Operating Mode
TN, Normally White, Transmissive
Color Performance :
Chromaticity
Wx:0.310; Wy:0.320
Support Color
16.7M (6-bit + Hi-FRC)
Color Temperature
6737K
White Variation
1.25/1.33 (Typ./Max.)(9 points)
1931 Color Gamlt :
NTSC Ratio
51%
sRGB
70% coverage
Adobe RGB
53% coverage
DCI-P3
53% coverage
Rec.2020
38% coverage
Remarks
sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)



TIANMA TM081JDH02 Mechanical Details

Pixel Features :
Number of Pixel
800(RGB)×1280, WXGA
Arrangement
RGB Vertical Stripe
Dot Pitch(W×H)
0.04525×0.1355 mm
Pixel Pitch(W×H)
0.13575×0.1355 mm [187PPI]
Physical Size :
Active Viewing
108.6(W)×173.44(H) mm
Overall Dim.
119.55(W)×184(H) mm
Bezel Opening
-
Overall Depth
2.8±0.2 mm
Outline Features :
Form Shape
Flat Rectangle
Orientation
Portrait type
Aspect Ratio(W:H)
10:16
Shape Style

Other Detail :
Mass
136g
Surface
Antiglare, Hard coating (3H)



TIANMA TM081JDH02 Electronics Details

Refresh Rate :
60Hz
Reverse Scan :
Yes (U/D, L/R)
Total Consumption :
2.1/2.4W (Typ./Max





TIANMA TM081JDH02 Interface Detail

Signal Electrical :
Input Current
121mA (Typ.)
Input Voltage
3.3V (Typ.)
Consumption
0.4/0.6W (Typ./Max.)
Signal Interface
LVDS (1 ch, 8-bit)
Interface Features :
Position
-
Type
FPC
Interface Detail :
Brand
Model
Pitch
Pins
Amount
Pin Assignment


0.5 mm
30 pins
1 pcs



TIANMA TM081JDH02 Lightting Details

Lamp Features :
Lamp Type
WLED
Amount
5S5P
Position
Edge light type
Exchange
-
Lamp Shape
Array
Lamp Life
10K(Min.) (Hours)
Lamp Electrical :
Input Voltage
16.0V (Typ.)
Input Current
100/125mA (Typ./Max.)
Consumption
1.7/1.8W (Typ./Max.)
Interface Features :
Position
-
Type
Included in panel signal interface
Backlight Driver :
No




TIANMA TM081JDH02 Packing Details

Package Box : Amount Size (L×W×H) Weight
76 pcs / box 15.4±0.78 Kgs 530×350×250 mm





 FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.

TM081JDH02 TIANMA 8.1" 800(RGB)×1280 350 cd/m² INDUSTRIAL LCD DISPLAY 1
