Product Details:
|

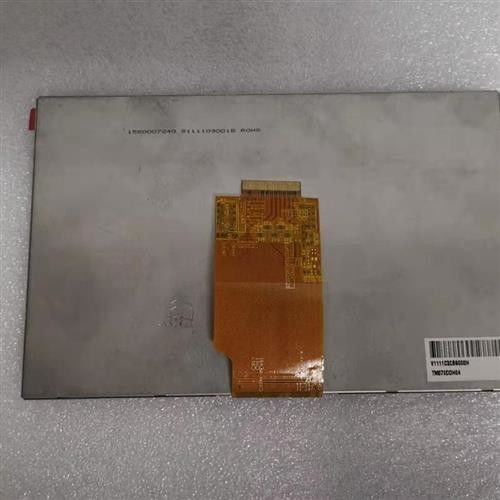

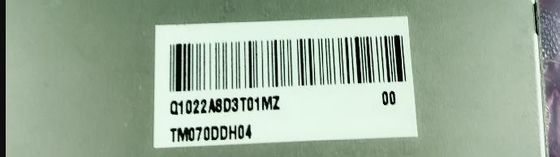

| MODEL NUMBER: | TM070DDH04 | BRAND: | TIANMA |
|---|---|---|---|
| SIZE: | 7.0"inch | RESOLUTION: | 1024(RGB)×600, WSVGA, 169PPI |
| BRIGHTNESS: | 400CDMA | Viewing Angle: | 75/75/70/75 (Typ.)(CR≥10) |
| TEMPERATURE RANGE: | Operating Temp.: -20 ~ 60 °C ; Storage Temp.: -30 ~ 70 °C | ||
| High Light: | XGA TIANMA LCD Screen,WQVGA TIANMA TFT LCD |
||
| Basic Information : | Manufacturer | Panel Model | Panel Type | Alias |
|---|---|---|---|---|
| TM070DDH04 | a-Si TFT-LCD , LCM | - | ||
| Environment : | RoHS State | Operating Temp. | Storage Temp. | Vibration Level |
| -20 ~ 60 °C | -30 ~ 70 °C | - | ||
| Used For : |
|
|||
| Specific Features : |
|
|||
| Basic Information : | Luminance (cd/m²) | Viewing Angle (L/R/U/D) | Response Time (ms) |
|---|---|---|---|
| 400 (Typ.) | 75/75/70/75 (Typ.)(CR≥10) | 20 (Typ.)(Tr+Td) | |
| Best View on | Display Mode | Contrast Ratio | |
| 12 o'clock | TN, Normally White, Transmissive | 500 : 1 (Typ.) (Transmissive) | |
| Dispaly Color : | Color Temperature | Display Colors | White Coordinate |
| 6638K | 16.7M (8-bit) | X:0.310; Y:0.330 | |
| 1931 Color Gamlt : | NTSC Ratio | sRGB Coverage | Adobe RGB Coverage |
| 51% | 70% | 53% | |
| DCI-P3 Coverage | Rec.2020 Coverage | Remarks | |
| 53% | 38% | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) | |
| White Variation : | 1.33/1.43 (Typ./Max.)(9 points) | ||
| Panel Size : | 7.0" | |||
|---|---|---|---|---|
| Pixel Features : | Pixel Format | Pixel Configuration | Pixel Pitch (mm) | Dot Pitch (mm) |
| 1024(RGB)×600 [WSVGA] | RGB Vertical Stripe | 0.150×0.150 [169PPI] | 0.050×0.150 | |
| Mechanical Size : | Active Area (mm) | Bezel Area (mm) | Outline Dimension (mm) | Outline Depth (mm) |
| 153.6(H) × 90(V) | - | 165.75(H) × 105.39(V) | 3.4±0.3 mm | |
| Outline Features : | Form Factor | Orientation | Aspect Ratio | Shape Style |
| Flat Rectangle | Landscape type | 17:10 (H:V) | ||
| Mounting : | Without | |||
| Other Detail : | Weight | Panel Cover | Treatment | |
| 129g (Typ.) | - | Antiglare | ||
| Reverse Scan : | Yes (U/D, L/R) |
|---|---|
| Vertical Frequency : | 60Hz |
| Power Consumption : | 2.0/2.65W (Typ./Max. |
| Lamp Features: | Type | Position | Quantity | Shape | Life(Hours) | Lamp Exchange |
|---|---|---|---|---|---|---|
| WLED | Edge light type | 3S9P | Array | 20K(Min.) | - | |
| WLED Electrical : | Voltage Supply | Current Supply | Power | |||
| 9.0V (Typ.) | 20/25mA (Typ./Max.) | 1.62/2.23W (Typ./Max.) | ||||
| Interface Features : | Position | Backlight Driver | Type | |||
| - | No | Included in panel signal interface | ||||
| Panel Driving Electrical : | Voltage Supply | Current Supply | Power | |||
|---|---|---|---|---|---|---|
| 3.3/11.0/20.0/-6.8V (Typ.)(VDD/AVDD/VGH/VGL) | 6/30/1/1mA (Typ.)(IDD/IAVDD/IGH/IGL) | 376.6/432mW (Typ./Max.) | ||||
| Interface Features : | Position | Signal | Type | |||
| - | LVDS (1 ch, 8-bit) | FPC | ||||
| FPC Detail : | Brand | Model | Pin Pitch | Pin Amount | Quantity | Configuration |
| 0.5 mm | 40 pins | 1 pcs | ||||
| Package Box : | Quantity | Weight | Box Size |
|---|---|---|---|
| 72 pcs / box | 15.5±1.55 Kgs | 544×365×250 mm (L×W×H) |
FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
