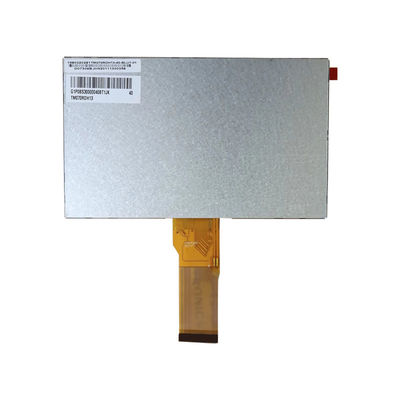

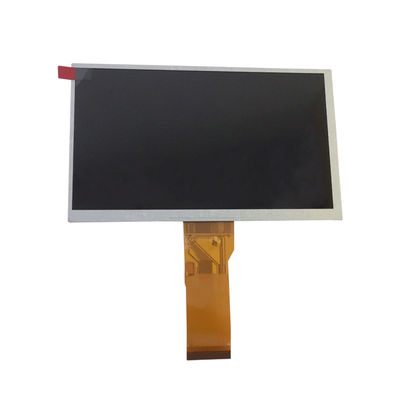

Product Details:
|
| MODEL NUMBER: | TM070RDH10-43 | BRAND: | TIANMA |
|---|---|---|---|
| SIZE: | 7.0INCH | RESOLUTION: | 800(RGB)×480 (WVGA) 134PPI |
| BRIGHTNESS: | 400 Cd/m² (Typ.) | Viewing Angle: | /70/50/70 (Typ.)(CR≥10) |
| TEMPERATURE RANGE: | Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C ; Vibration Level: 2.0G (19.6 M/s²) | ||
| High Light: | XGA TIANMA LCD Screen,WQVGA TIANMA TFT LCD |
||
| Package Box : | Amount | Weight | Size (L×W×H) |
|---|---|---|---|
| 60 pcs / box | 15.3±0.8 Kgs | 544×365×250 mm (L×W×H) |
| Package Box : | Amount | Weight | Size (L×W×H) |
|---|---|---|---|
| 60 pcs / box | 15.3±0.8 Kgs | 544×365×250 mm (L×W×H) |
| Back-light Features: | Type | Position | Life(Hours) | Amount | Shape | Replacement |
|---|---|---|---|---|---|---|
| WLED | Edge light type | 20K(Min.) | 3S8P | Array | - | |
| WLED Electrical : | Input Voltage | Input Current | Power Consumption | |||
| 9.6/10.8V (Typ./Max.) | 160/200mA (Typ./Max.) | 1.54/2.16W (Typ./Max.) | ||||
| Interface Features : | WLED Driver State | Physical Type | Interface Position | |||
| No | Included in panel signal interface | |||||
| Refresh Rate : | 60Hz |
|---|---|
| Reverse Scan : | Yes (U/D, L/R) |
| Driver IC List: | COG Built-in HIX8264D + HX8664B |
| Time Controller (T-CON) : | Embedded T-CON |
| Basic Information : | Luminance | Work Mode | Contrast Ratio |
|---|---|---|---|
| 400 cd/m² (Typ.) | TN, Normally White, Transmissive | 500:1 (Typ.) (Transmissive) | |
| Good View at | Viewing Angle | Response Time | |
| 12 o'clock | 70/70/50/70 (Typ.)(CR≥10) | 25 (Typ.)(Tr+Td) (ms) | |
| Dispaly Color : | Color Temperature: | Support Color | Color Coordinate |
| 6819K | 262K/16.7M (6-bit / 6-bit + Dithering) | X:0.309; Y:0.318 | |
| 1931 Color Gamlt : | NTSC Ratio | sRGB Coverage | Adobe RGB Coverage |
| 52% | 72% | 54% | |
| DCI-P3 Coverage | Rec.2020 Coverage | Remarks | |
| 54% | 39% | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) | |
| White Uniformity : | 1.18/1.25 (Typ./Max.)(9 points) | ||
| Screen Size : | 7.0" | |||
|---|---|---|---|---|
| Pixel Features : | Pixel Number | Pixel Format | Dot Pitch (H×V) | Pixel Pitch (H×V) |
| 800(RGB)×480, WVGA | RGB Vertical Stripe | 0.0642×0.1790 mm | 0.1926×0.1790 mm [134PPI] | |
| Mechanical Size : | Display Area (H×V) | Bezel Opening (H×V) | Overall Dimension (H×V) | Overall Depth |
| 154.08×85.92 mm | 157.08×89.39 mm | 164.9×100 mm | 5.7±0.3 mm | |
| Outline Features : | Form Shape | Aspect Ratio (H:V) | Orientation | Shape Style |
| Flat Rectangle | 16:9 | Landscape type | ||
| Other Spec : | Mass | Panel Cover | Surface Treatment | |
| 160g (Typ.) | - | Antiglare | ||
| Holes & Brackets : | Without | |||
| Basic Information : | Brand Name | Model Name | Type | Model Alias |
|---|---|---|---|---|
| TM070RDH10-43 | a-Si TFT-LCD , LCM | - | ||
| Maximum Ratings : | RoHS | Operating Temperature | Storage Temperature | Vibration Level |
| -20 ~ 70 °C | -30 ~ 80 °C | - | ||
| Application : |
|
|||
| Typical Features : |
|
|||
| Remarks : | 47.05mm length FPC | |||
