Product Details:
|

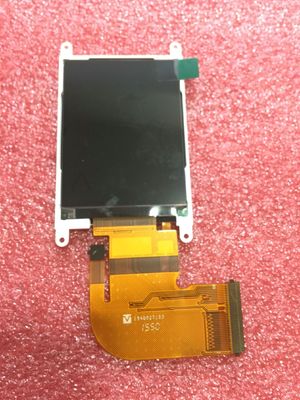

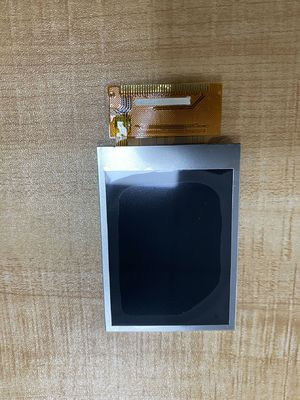

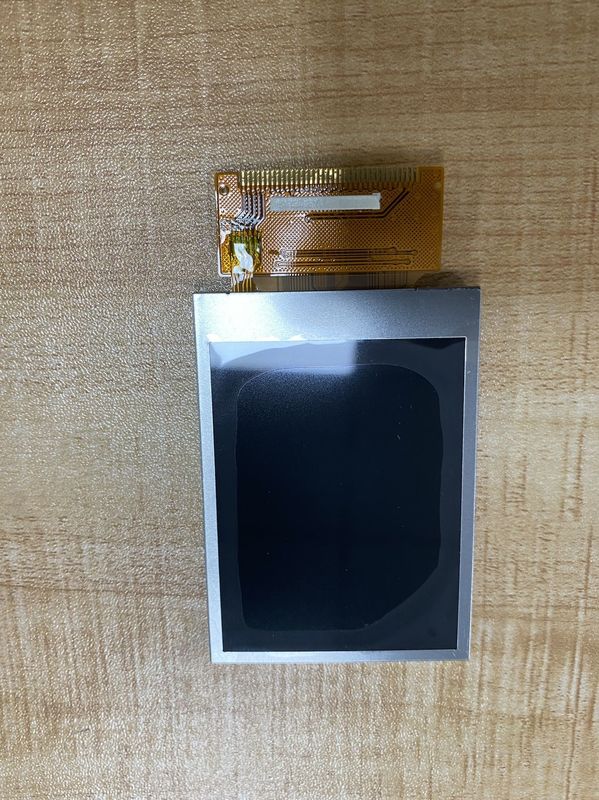

| MODEL NUMBER: | TM032LDH03 | BRAND: | TIANMA |
|---|---|---|---|
| SIZE: | 3.2 Inch | RESOLUTION: | 240(RGB)×400 [WQVGA] 145PPI |
| Viewing Angle: | 70/70/70/60 (Typ.)(CR≥10) | TEMPERATURE RANGE: | Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C |
| BRIGHTNESS: | 350 Cd/m² (Typ.) | ||
| High Light: | XGA TIANMA LCD Screen,WQVGA TIANMA TFT LCD |
||
| Basic Information : | Brand Name | Model Name | Type | Model Alias |
|---|---|---|---|---|
| TM032LDH03 | a-Si TFT-LCD , LCM | - | ||
| Maximum Ratings : | RoHS | Operating Temperature | Storage Temperature | Vibration Level |
| -20 ~ 70 °C | -30 ~ 80 °C | - | ||
| Application : | ||||
| Typical Features : |
|
|||
| Remarks : | 8/16/18 bit 8080 CPU, 18 bit RGB, SPI, 2 in 1 FPC, Right side FPC (7.75mm) | |||
| Screen Size : | 3.2" | |||
|---|---|---|---|---|
| Pixel Features : | Pixel Number | Pixel Format | Dot Pitch (H×V) | Pixel Pitch (H×V) |
| 240(RGB)×400, WQVGA | RGB Vertical Stripe | 0.058×0.174 mm | 0.174×0.174 mm [145PPI] | |
| Mechanical Size : | Display Area (H×V) | Bezel Opening (H×V) | Overall Dimension (H×V) | Overall Depth |
| 41.76×69.6 mm | 42.96×70.80 mm | 48.4×81.5 mm | 2.15±0.15 mm | |
| Outline Features : | Form Shape | Aspect Ratio (H:V) | Orientation | Shape Style |
| Flat Rectangle | 3:5 | Portrait type | ||
| Other Spec : | Mass | Panel Cover | Surface Treatment | |
| 16.6g | - | Clear, Hard coating (3H) | ||
| Basic Information : | Luminance | Work Mode | Contrast Ratio |
|---|---|---|---|
| 350 cd/m² (Typ.) | TN, Normally White, Transmissive | 500:1 (Typ.) (Transmissive) | |
| Good View at | Viewing Angle | Response Time | |
| 6 o'clock | 70/70/70/60 (Typ.)(CR≥10) | 20/30 (Typ./Max.)(Tr+Td) (ms) | |
| Dispaly Color : | Color Temperature: | Support Color | Color Coordinate |
| 9969K | 65K/262K | X:0.280; Y:0.290 | |
| 1931 Color Gamut : | NTSC Ratio | sRGB Coverage | Adobe RGB Coverage |
| 63% | 85% | 66% | |
| DCI-P3 Coverage | Rec.2020 Coverage | Remarks | |
| 65% | 47% | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) | |
| White Uniformity : | 1.25 (Typ.)(9 points) | ||
| Reverse Scan : | No |
|---|---|
| Driver IC List: | Built-in HX8352-A |
| Back-light Features: | Type | Position | Life(Hours) | Amount | Shape | Replacement |
|---|---|---|---|---|---|---|
| WLED | Edge light type | 20K(Typ.) | 1S6P | Parallel | - | |
| WLED Electrical : | Input Voltage | Input Current | Power Consumption | |||
| 3.2V (Typ.) | 15/25mA (Typ./Max.) | 288mW (Typ.) | ||||
| Interface Features : | WLED Driver State | Physical Type | Interface Position | |||
| No | Included in signal interface | |||||
| Signal Electrical : | Input Voltage | Input Current | Power Consumption | |||
|---|---|---|---|---|---|---|
| 2.8/2.8V (Typ.)(IOVCC/VCC) | - | - | ||||
| Interface Features : | Signal Type | Physical Type | Interface Position | |||
| CPU/RGB/SPI | FPC | - | ||||
| Interface Detail : | Brand Name | Model Name | Amount | Pins | Pin Pitch | Pin Configuration |
| 1 pcs | 45 pins | 0.3 mm | ||||
