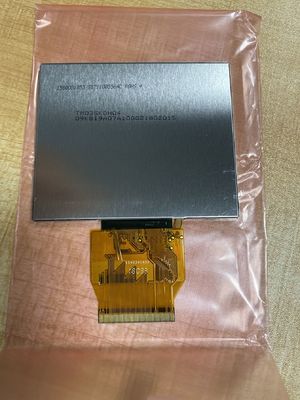

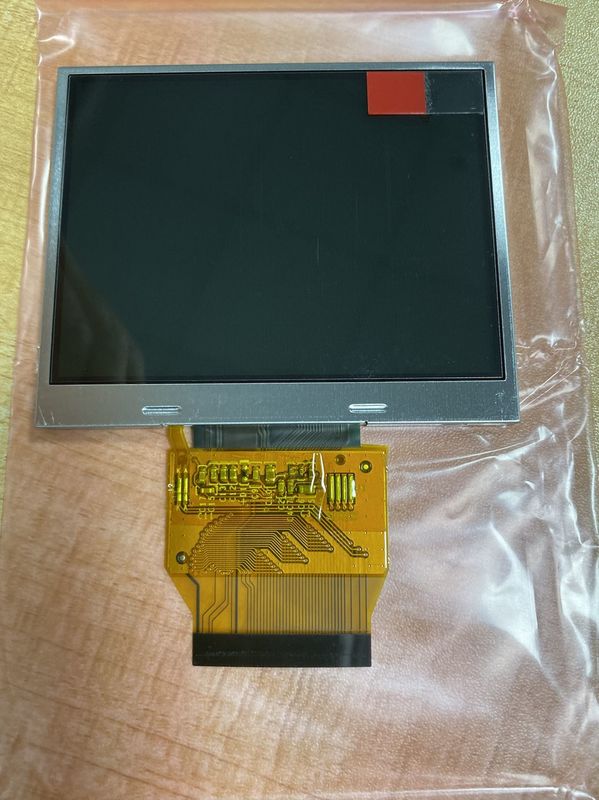

TM035KDH04 TIANMA 3.5" 320(RGB)×240 420 cd/m² INDUSTRIAL LCD DISPLAY

TM035KDH04 TIANMA 3.5" 320(RGB)×240 420 cd/m² INDUSTRIAL LCD DISPLAY
TM035KDH04 TIANMA 3.5" 320(RGB)×240 420 cd/m² INDUSTRIAL LCD DISPLAY TM035KDH04 TIANMA 3.5" 320(RGB)×240 420 cd/m² INDUSTRIAL LCD DISPLAY TM035KDH04 TIANMA 3.5" 320(RGB)×240 420 cd/m² INDUSTRIAL LCD DISPLAY TM035KDH04 TIANMA 3.5" 320(RGB)×240 420 cd/m² INDUSTRIAL LCD DISPLAY

Large Image :  TM035KDH04 TIANMA 3.5" 320(RGB)×240 420 cd/m² INDUSTRIAL LCD DISPLAY

Product Details:
Place of Origin: JAPAN
Brand Name: TIANMA
Certification: ISO9001
Model Number: TM035KDH04
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Packaging Details: STANDARD PACKING
Delivery Time: 1-2 DAYS
Payment Terms: TT/PAYPAL/ESCROW/WESTERN UNION
Supply Ability: 1000PCS
Contact Now

TM035KDH04 TIANMA 3.5" 320(RGB)×240 420 cd/m² INDUSTRIAL LCD DISPLAY

Description
MODEL NUMBER: TM035KDH04 BRAND: TIANMA
SIZE: 3.5"inch RESOLUTION: 320(RGB)×240 (QVGA) 115PPI
BRIGHTNESS: 420 Cd/m² (Typ.) Viewing Angle: 70/70/60/70 (Typ.)(CR≥10) Left / Right / Up / Down
TEMPERATURE RANGE: Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C ; Vibration Level: 2.0G (19.6 M/s²)
High Light:

XGA TIANMA LCD Screen

,

WQVGA TIANMA TFT LCD

TIANMA TM035KDH04 Application Details

Basic Detail :
Manufacturer

Model Name
TM035KDH04
Panel Type
a-Si TFT-LCD , LCM
Another Name
TS035KAAVD05-00
Panel Size
3.5 inch
Designed For




Maximum Ratings :
OP Temperature
-20 ~ 70 °C
ST Temperature
-30 ~ 80 °C
RoHS

Vibration Level
-
Features :
Remarks :
2 in 1 FPC; Down side FPC (37.0mm length)



TIANMA TM035KDH04 Optical Details

Basic Detail :
Luminance
420 cd/m² (Typ.)
Contrast Ratio
500:1 (Typ.) (Transmissive)
Good View at
12 o'clock
Response Speed
25 (Typ.)(Tr+Td) ms
Viewing Angle
70/70/60/70 (Typ.)(CR≥10)
Operating Mode
TN, Normally White, Transmissive
Color Performance :
Chromaticity
Wx:0.280; Wy:0.310
Support Color
16.7M (6-bit + Dithering)
Color Temperature
9085K
White Variation
1.25/1.33 (Typ./Max.)(9 points)
1931 Color Gamlt :
NTSC Ratio
53%
sRGB
75% coverage
Adobe RGB
56% coverage
DCI-P3
56% coverage
Rec.2020
40% coverage
Remarks
sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)



TIANMA TM035KDH04 Mechanical Details

Pixel Features :
Number of Pixel
320(RGB)×240, QVGA
Arrangement
RGB Vertical Stripe
Dot Pitch(W×H)
0.073×0.219 mm
Pixel Pitch(W×H)
0.219×0.219 mm [115PPI]
Physical Size :
Active Viewing
70.08(W)×52.56(H) mm
Overall Dim.
76.9(W)×63.9(H) mm
Bezel Opening
72.88(W)×55.36(H) mm
Overall Depth
2.8±0.2 mm
Outline Features :
Form Shape
Flat Rectangle
Orientation
Landscape type
Aspect Ratio(W:H)
4:3
Shape Style

Other Detail :
Mass
30.0g
Surface
Clear



TIANMA TM035KDH04 Electronics Details

Reverse Scan :
No
Driver IC :
Built-in NV3035C
Time Controller (T-CON) :
Embedded T-CON



TIANMA TM035KDH04 Interface Detail

Signal Electrical :
Input Current
-
Input Voltage
3.3V (Typ.)
Consumption
45/65mW (Typ./Max.)
Signal Interface
Digital RGB (8/24-bit) + SPI, CCIR601/656
Logic Voltage :
0≤VIL≤0.2VCC; 0.8VCC≤VIH≤VCC
Interface Features :
Position
-
Type
FPC
Interface Detail :
Brand
Model
Pitch
Pins
Amount
Pin Assignment


0.5 mm
54 pins
1 pcs



TIANMA TM035KDH04 Lightting Details

Lamp Features :
Lamp Type
WLED
Amount
6S1P
Position
Edge light type
Exchange
-
Lamp Shape
1 string
Lamp Life
-
Lamp Electrical :
Input Voltage
19.2±2.4V
Input Current
20/25mA (Typ./Max.)
Consumption
384mW (Typ.)
Interface Features :
Position
-
Type
Included in panel signal interface
Backlight Driver :
No



TIANMA TM035KDH04 Packing Details

Package Box : Amount Size (L×W×H) Weight
252 pcs / box 12.6 Kgs (Typ.) 544×360×250 mm



FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
