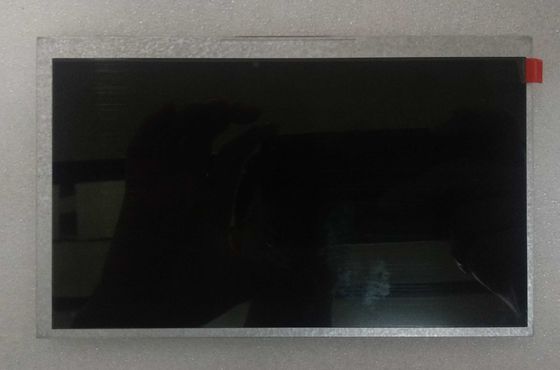

TM070RDHG25 TIANMA 7.0 inch 800(RGB)×480 450 cd/m² INDUSTRIAL LCD DISPLAY

TM070RDHG25 TIANMA 7.0 inch 800(RGB)×480 450 cd/m² INDUSTRIAL LCD DISPLAY
TM070RDHG25 TIANMA 7.0 inch 800(RGB)×480 450 cd/m² INDUSTRIAL LCD DISPLAY TM070RDHG25 TIANMA 7.0 inch 800(RGB)×480 450 cd/m² INDUSTRIAL LCD DISPLAY TM070RDHG25 TIANMA 7.0 inch 800(RGB)×480 450 cd/m² INDUSTRIAL LCD DISPLAY

Large Image :  TM070RDHG25 TIANMA 7.0 inch 800(RGB)×480 450 cd/m² INDUSTRIAL LCD DISPLAY

Product Details:
Place of Origin: JAPAN
Brand Name: TIANMA
Certification: ISO9001
Model Number: TM070RDHG25
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Packaging Details: STANDARD PACKING
Delivery Time: 1-2 DAYS
Payment Terms: TT/PAYPAL/ESCROW/WESTERN UNION
Supply Ability: 3000PCS
Contact Now

TM070RDHG25 TIANMA 7.0 inch 800(RGB)×480 450 cd/m² INDUSTRIAL LCD DISPLAY

Description
MODEL NUMBER: TM070RDHG25 BRAND: TIANMA
SIZE: 7.0INCH RESOLUTION: 800(RGB)×480 (WVGA) 134PPI
BRIGHTNESS: 450 Cd/m² (Typ.) Lamp Type: WLED
SIGNAL LNTERFACE: LVDS Viewing Angle: 80/80/60/80 (Typ.)(CR≥10
TEMPERATURE RANGE: Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C
High Light:

QVGA TIANMA LCD Panel

,

SVGA TIANMA LCD Panel

TIANMA TM070RDHG25 Application Details

Basic Info :
Panel Brand

Panel Model
TM070RDHG25
Diagonal Size
7.0"
Application

Panel Type
a-Si TFT-LCD , LCM
Model Alias
-
Reliability :
Operating Temp.
-20 ~ 70 °C
Storage Temp.
-30 ~ 80 °C
RoHS State

Vibration Rating
-
Specific Features :

  • U/D,L/R Reverse
  • Matte



TIANMA TM070RDHG25 Mechanical Details

Pixel Features :
Pixel Format
800(RGB)×480, WVGA
Dot Pitch
0.0642×0.1790 mm (H×V)
Configuration
RGB Vertical Stripe
Pixel Pitch
0.1926×0.1790 mm (H×V) [134PPI]
Mechanical Size :
Display Area
154.08×85.92 mm (H×V)
Bezel Area
157.08×89.39 mm (H×V)
Outline Dim.
164.9×100 mm (H×V)
Outline Depth
5.7/8.1 (Typ./Max.) mm
Outline Features :
Form Factor
Flat Rectangle
Orientation
Landscape type
Aspect Ratio
16:9 (H:V)
Shape Style

Holes & Brackets :
Without
Other Features :
Weight
TBD
Surface
Antiglare



TIANMA TM070RDHG25 Optical Details

Basic Information :
Brightness
450 cd/m² (Typ.)
Contrast Ratio
1000:1 (Typ.) (Transmissive)
Viewing Angle
80/80/60/80 (Typ.)(CR≥10)
Optical Mode
TN, Normally White, Transmissive
Viewing Direction
6 o'clock
Response Time
15 (Typ.)(Tr+Td) ms
Color Performance :
Chromaticity
Wx:0.319; Wy:0.345
Color Numbers
262K (6-bit)
Color Temperature
6088K
Uniformity
1.18/1.33 (Typ./Max.)(9 points)
1931 Color Gamlt :
NTSC Ratio
53%
sRGB
73% coverage
Adobe RGB
56% coverage
DCI-P3
55% coverage
Rec.2020
40% coverage
Remarks
sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)





TIANMA TM070RDHG25 Electronics Details

Frame Frequency :
60Hz
Reverse Scan :
Yes (U/D, L/R)
D-IC Detail :
COG Built-in HX8264D + HX8664B
Time Controller (T-CON) :
Embedded T-CON



TIANMA TM070RDHG25 Backlight Details

Back-light Features :
Lamp Type
WLED
Amount
3S8P
Life Time
20K(Min.) (Hours)
Replacement
-
Lamp Shape
Array
Position
Edge light type
Lamp Electrical :
Voltage Input
12.0±0.5V
Current Input
60/75mA (Typ./Max.)
Consumption
1.54/2.16W (Typ./Max.)
Interface Features :
Type
Connector
Position
-
Lamp Driver
No
Interface Detail :
Brand
Model
Pin Pitch
Pins
Amount
Configuration
E&T
3808K-F04N-03R
1.25 mm
4 pins
1 pcs



TIANMA TM070RDHG25 Interface Detail

Signal Systerm :
LVDS (1 ch, 6-bit)
Logic Voltage
-
Signal Electrical :
Voltage Input
3.3V (Typ.)
Current Input
-
Interface Features :
Type
Connector
Position
-
Connector Detail :
Brand
Model
Pin Pitch
Pins
Amount
Configuration
HRS
DF19K-20P-1H
1.0 mm
20 pins
1 pcs



TIANMA TM070RDHG25 Carton Details

Package Carton : Amount Net Weight Carton Size (L×W×H)
36 pcs / box TBD 530×350×288 mm

 FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.

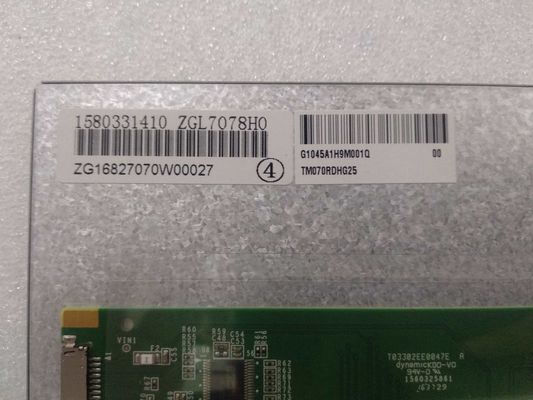

TM070RDHG25 TIANMA 7.0 inch 800(RGB)×480 450 cd/m² INDUSTRIAL LCD DISPLAY 2TM070RDHG25 TIANMA 7.0 inch 800(RGB)×480 450 cd/m² INDUSTRIAL LCD DISPLAY 3
