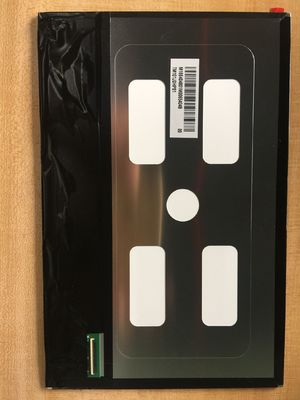

Product Details:
|

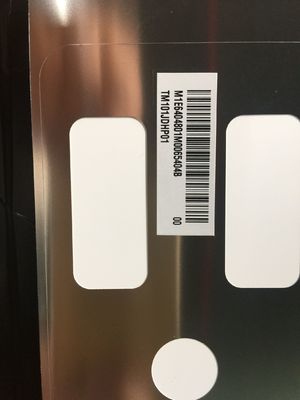

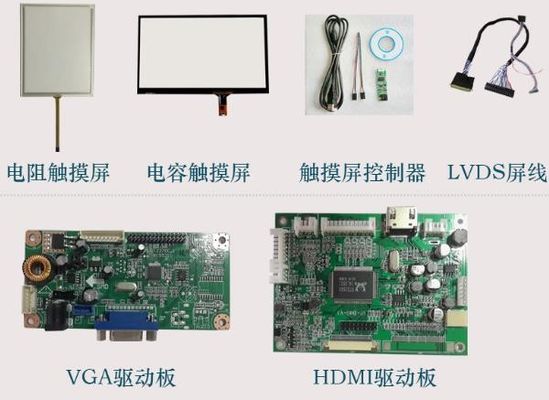

| MODEL NUMBER: | TM101JDHP01 | BRAND: | TIANMA |
|---|---|---|---|
| SIZE: | 10.1 Inch | RESOLUTION: | 1280(RGB)×800 [WXGA] 149PPI |
| BRIGHTNESS: | 400 Cd/m² (Typ.) | Viewing Angle: | 85/85/85/85 (Typ.)(CR≥10) |
| SIGNAL LNTERFACE: | LVDS | Lamp Type: | WLED |
| TEMPERATURE RANGE: | Operating Temperature: -10 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C | ||
| High Light: | WLED Backlight Tianma TFT,WQVGA TIANMA LCD Panel |
||
| Basic Information : | Brand | Model | Type | Model Alias |
|---|---|---|---|---|
| TM101JDHP01 | a-Si TFT-LCD , LCM | - | ||
| Reliability : | RoHS | Operating Temperature | Storage Temperature | Vibration Resistance |
| -10 ~ 50 °C | -20 ~ 60 °C | - | ||
| Designed For : | ||||
| Specific Features : | ||||
| Panel Size : | 10.1 inch | |||
|---|---|---|---|---|
| Pixel Features : | Resolution | Pixel Arrangement | Dot Pitch (W×H) | Pixel Pitch (W×H) |
| 1280(RGB)×800, WXGA | RGB Vertical Stripe | 0.0565×0.1695 mm | 0.1695×0.1695 mm [149PPI] | |
| Mechanical Size : | Active Area (W×H) | Bezel Area (W×H) | Outline Dimension (W×H) | Outline Depth |
| 216.96×135.6 mm | - | 229.46×149.1 mm | 2.55/4.6 (Typ./Max.) mm | |
| Outline Features : | Form Style | Aspect Ratio | Orientation | Shape Style |
| Flat Rectangle | 16:10 (W : H) | Landscape type | ||
| Fixation : | Without | |||
| Other Features : | Panel Cover | Weight | Surface | |
| - | 180g (Typ.) | Hard coating | ||
| Basic Information : | Brightness | Operating Mode | Contrast Ratio |
|---|---|---|---|
| 400 cd/m² (Typ.) | SFT, Normally Black, Transmissive | 800:1 (Typ.) (Transmissive) | |
| Viewing Angle(L/R/U/D) | Viewing Direction | Response Speed | |
| 85/85/85/85 (Typ.)(CR≥10) | Symmetry | 10/15 (Typ.)(Tr/Td) (ms) | |
| Dispaly Color : | Color Temperature | Color Amount | White color Chromaticity |
| 7289K | 16.7M (8-bit) | X:0.300; Y:0.324 | |
| 1931 Color Gamlt : | NTSC Ratio | sRGB Coverage | Adobe RGB Coverage |
| 52% | 72% | 54% | |
| DCI-P3 Coverage | Rec.2020 Coverage | Remarks | |
| 54% | 39% | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) | |
| Luminance Variation : | 1.25/1.33 (Typ./Max.)(9 points) | ||
| Frame Rate : | 60Hz |
|---|---|
| Reverse Scan : | No |
| D-IC Detail : | COG Built-in ST5821CA*3 + ST5084CA*1 |
| Signal Electrical : | Current Input | Voltage Input | Consumption | |||
|---|---|---|---|---|---|---|
| 54.1/47.6/0.66/0.66mA (Typ.)(IDD/AIDD/IGH/IGL) | 3.3/11.0/23/-7.0V (Typ.)(VDD/AVDD/VGH/VGL) | - | ||||
| Interface Features : | Position | Type | Interface | |||
| - | Connector | LVDS (1 ch, 8-bit) | ||||
| Signal Interface : | Brand | Model | Amount | Pin Pitch | Pins | Pin Assignment |
| Vigorconn | F62240-H1210A | 1 pcs | 0.5 mm | 40 pins | ||
| Backlight Features: | Type | Position | Shape | Amount | Life(Hours) | Replacement |
|---|---|---|---|---|---|---|
| WLED | Edge light type | Array | 3S11P | 30K(Typ.) | - | |
| WLED Electrical : | Current Input | Voltage Input | Consumption | |||
| 220/330mA (Typ./Max.) | 9.0/9.6/10.8V (Min./Typ./Max.) | |||||
| Interface Features : | Position | Type | WLED Driver | |||
| - | Included in panel signal interface | No | ||||
| Package Carton : | Amount | Weight | Carton Size |
|---|---|---|---|
| 36 pcs / box | 12.6 Kgs | 544×365×250 mm (L×W×H) |
