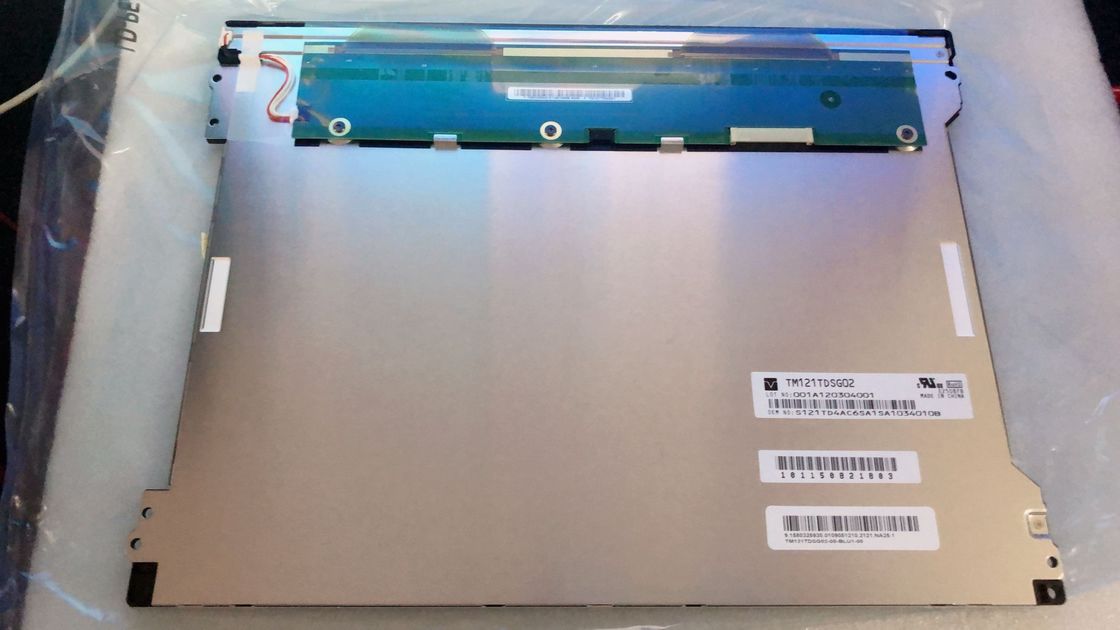

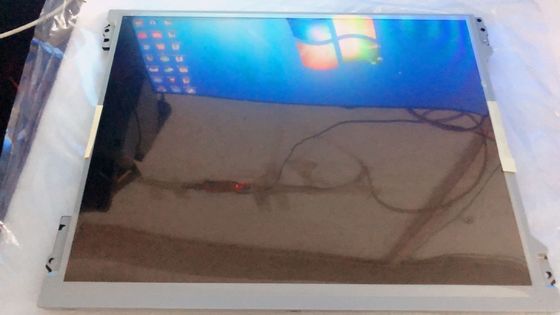

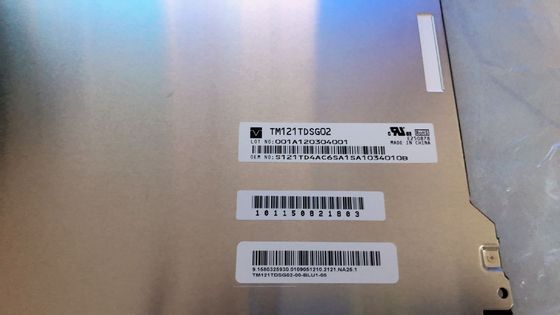

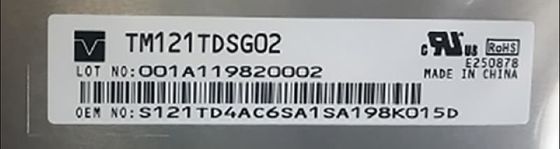

TM121TDSG02 TIANMA 12.1 inch 1204×768 450 cd/m² INDUSTRIAL LCD DISPLAY

TM121TDSG02 TIANMA 12.1 inch 1204×768 450 cd/m² INDUSTRIAL LCD DISPLAY
TM121TDSG02 TIANMA 12.1 inch 1204×768 450 cd/m² INDUSTRIAL LCD DISPLAY TM121TDSG02 TIANMA 12.1 inch 1204×768 450 cd/m² INDUSTRIAL LCD DISPLAY TM121TDSG02 TIANMA 12.1 inch 1204×768 450 cd/m² INDUSTRIAL LCD DISPLAY TM121TDSG02 TIANMA 12.1 inch 1204×768 450 cd/m² INDUSTRIAL LCD DISPLAY

Large Image :  TM121TDSG02 TIANMA 12.1 inch 1204×768 450 cd/m² INDUSTRIAL LCD DISPLAY

Product Details:
Place of Origin: JAPAN
Brand Name: TIANMA
Certification: ISO9001
Model Number: TM121TDSG02
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Packaging Details: STANDARD PACKING
Delivery Time: 1-2 DAYS
Payment Terms: TT/PAYPAL/ESCROW/WESTERN UNION
Supply Ability: 3000PCS
Contact Now

TM121TDSG02 TIANMA 12.1 inch 1204×768 450 cd/m² INDUSTRIAL LCD DISPLAY

Description
MODEL NUMBER: TM121TDSG02 BRAND: TIANMA
SIZE: 12.1INCH RESOLUTION: 1024(RGB)×768, XGA, 105PPI
BRIGHTNESS: 450 Cd/m² (Typ.) Lamp Type: WLED
SIGNAL LNTERFACE: LVDS Viewing Angle: 80/80/80/80 (Typ.)(CR≥10)
TEMPERATURE RANGE: Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C
High Light:

WLED Backlight Tianma TFT

,

WQVGA TIANMA LCD Panel

TIANMA TM121TDSG02 Application Details

Basic Info :
Panel Brand

Panel Model
TM121TDSG02
Diagonal Size
12.1"
Application

Panel Type
a-Si TFT-LCD , LCM
Model Alias
-
Reliability :
Operating Temp.
-20 ~ 70 °C
Storage Temp.
-30 ~ 80 °C
RoHS State

Vibration Rating
1.2G (11.76 m/s²)
Specific Features :

  • Life ≥ 50K hours
  • With LED Driver
  • 180° Reverse
  • 6/8 bit

    •





TIANMA TM121TDSG02 Mechanical Details

Pixel Features :
Pixel Format
1024(RGB)×768, XGA
Dot Pitch
0.080×0.240 mm (H×V)
Configuration
RGB Vertical Stripe
Pixel Pitch
0.240×0.240 mm (H×V) [105PPI]
Mechanical Size :
Display Area
245.76×184.32 mm (H×V)
Bezel Area
250.8×189.4 mm (H×V)
Outline Dim.
279×209 mm (H×V)
Outline Depth
6.0/9.1 (Typ./Max.) mm
Outline Features :
Form Factor
Flat Rectangle
Orientation
Landscape type
Aspect Ratio
4:3 (H:V)
Shape Style

Holes & Brackets :
Face mounting holes (3-Φ3.4, 3-R1.7) on left, right bezel
Other Features :
Weight
483g (Typ.)
Surface
Antiglare, Hard coating (3H)



TIANMA TM121TDSG02 Optical Details

Basic Information :
Brightness
450 cd/m² (Typ.)
Contrast Ratio
700:1 (Typ.) (Transmissive)
Viewing Angle
80/80/80/80 (Typ.)(CR≥10)
Optical Mode
TN, Normally White, Transmissive
Viewing Direction
6 o'clock
Response Time
3/5 (Typ.)(Tr/Td) ms
Color Performance :
Chromaticity
Wx:0.313; Wy:0.329
Color Numbers
262K/16.7M (6-bit / 6-bit + Hi-FRC)
Color Temperature
6485K
Uniformity
1.25/1.33 (Typ./Max.)(9 points)
1931 Color Gamlt :
NTSC Ratio
55%
sRGB
77% coverage
Adobe RGB
58% coverage
DCI-P3
58% coverage
Rec.2020
41% coverage
Remarks
sRGB (Rec.709, BT.709), Rec.2020 (BT.2020



TIANMA TM121TDSG02 Electronics Details

Frame Frequency :
60Hz
Reverse Scan :
Yes (180°)
Power Consumption :
6.4W (Typ.



TIANMA TM121TDSG02 Backlight Details

Back-light Features :
Lamp Type
WLED
Amount
-
Life Time
50K(Typ.) (Hours)
Replacement
-
Lamp Shape
-
Position
Edge light type
Interface Features :
Type
Connector
Position
-
Lamp Driver
With LED Driver
Interface Detail :
Brand
Model
Pin Pitch
Pins
Amount
Configuration
STM
MSB24038P5
1.25 mm
5 pins
1 pcs

Driver Electrical :
Voltage Input
12.0V (Typ.)
Current Input
410/480mA (Typ./Max.)



TIANMA TM121TDSG02 Interface Detail

Signal Systerm :
LVDS (1 ch, 6/8-bit)
Logic Voltage
-
Signal Electrical :
Voltage Input
3.3V (Typ.)
Current Input
340/740mA (Typ./Max.)
Interface Features :
Type
Connector
Position
-
Connector Detail :
Brand
Model
Pin Pitch
Pins
Amount
Configuration
STM
MSB240420HE
1.25 mm
20 pins
1 pcs
LVDS-20P1C8B-080G





TIANMA TM121TDSG02 Carton Details

Package Carton : Amount Net Weight Carton Size (L×W×H)
20 pcs / box 14.35±0.72 Kgs 577×421×326 mm



  FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
