TM034XVZP01 TIANMA 3.4 inch 800×800 350 cd/m² INDUSTRIAL LCD DISPLAY

TM034XVZP01 TIANMA 3.4 inch 800×800 350 cd/m² INDUSTRIAL LCD DISPLAY

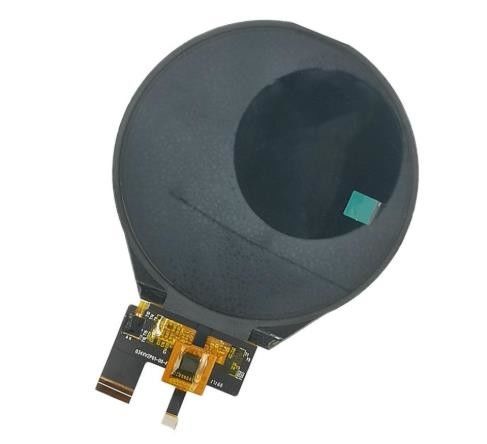

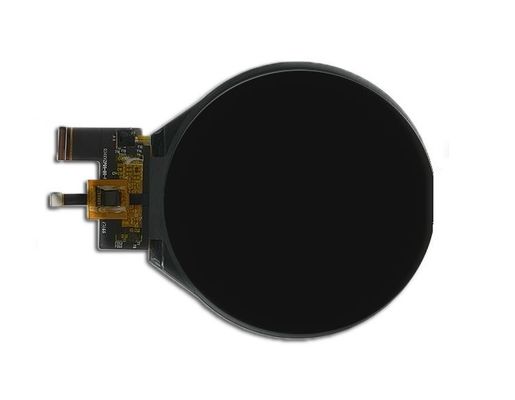

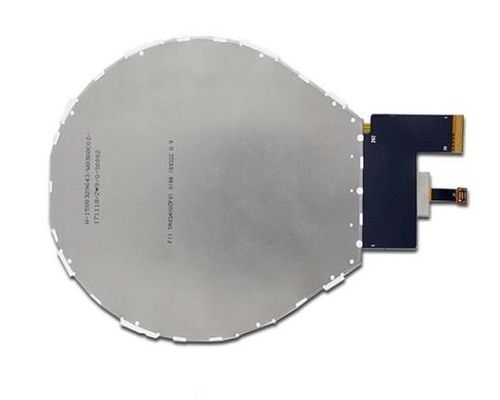

TM034XVZP01 TIANMA 3.4 inch 800×800 350 cd/m² INDUSTRIAL LCD DISPLAY TM034XVZP01 TIANMA 3.4 inch 800×800 350 cd/m² INDUSTRIAL LCD DISPLAY TM034XVZP01 TIANMA 3.4 inch 800×800 350 cd/m² INDUSTRIAL LCD DISPLAY

Large Image :  TM034XVZP01 TIANMA 3.4 inch 800×800 350 cd/m² INDUSTRIAL LCD DISPLAY

Product Details:
Place of Origin: JAPAN
Brand Name: TIANMA
Certification: ISO9001
Model Number: TM034XVZP01
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Packaging Details: STANDARD PACKING
Delivery Time: 1-2 DAYS
Payment Terms: TT/PAYPAL/ESCROW/WESTERN UNION
Supply Ability: 5000PCS
Contact Now

TM034XVZP01 TIANMA 3.4 inch 800×800 350 cd/m² INDUSTRIAL LCD DISPLAY

Description
BRAND: TIANMA MODEL NUMBER: TM034XVZP01
SIZE: 3.5 Inch RESOLUTION: 800(RGB)×800 231PPI
BRIGHTNESS: 350 Cd/m² (Typ. Viewing Angle: 80/80/80/80 (Typ.)(CR≥10)
Lamp Type: WLED SIGNAL LNTERFACE: LVDS
TEMPERATURE RANGE: Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C
High Light:

WLED Backlight Tianma TFT

,

WQVGA TIANMA LCD Panel

TIANMA TM034XVZP01 Application Details

Basic Information :
Brand

Model
TM034XVZP01
Type
a-Si TFT-LCD , LCM
Used For




Screen Size
3.4 inch
Alias
TM034XVZP01-00
Environment :
Storage Temp.
-30 ~ 80 °C
Operating Temp.
-20 ~ 70 °C
RoHS

Vibration
-
Typical Features :

















































TIANMA TM034XVZP01 Mechanical Details

Pixel Features :
Resolution
800(RGB)×800
Dot Pitch(mm)
0.0365×0.1095 (H×V)
Pixel Format
RGB Vertical Stripe
Pixel Pitch(mm)
0.1095×0.1095 (H×V) [231PPI]
Mechanical Size :
Active Area(mm)
87.6(H) × 87.6(V)
Bezel Area(mm)
88.6(H) × 88.6(V)
Outline Dim.(mm)
99(H) × 96.6(V)
Depth(mm)
3.98
Outline Features :
Form Style
Flat Circular
Shape Style

Aspect Ratio
1:1 (H:V)
Orientation
Landscape type
Touch Panel :
Touch Points
-
Touch Panel
PCAP
TP Controller
With touch controller
Touch Signal
SPI
Other Spec :
Weight
TBD
Treatment
Hard coating (7H)

TIANMA TM034XVZP01 Optical Details

Basic Information :
Luminance(cd/m²)
350 (Typ.)
Contrast Ratio
800:1 (Typ.) (Transmissive)
Viewing Angle
80/80/80/80 (Typ.)(CR≥10)
Display Mode
SFT, Normally Black, Transmissive
Best View on
Symmetry
Response(ms)
25 (Typ.)(Tr+Td)
Color Performance :
White Coordinate
Wx:0.313; Wy:0.329
Display Colors
16.7M (8-bit)
Color Temperature
6485K
White Uniformity
1.25/1.35 (Typ./Max.)(9 points)





































TIANMA TM034XVZP01 Electronics Details

Driver IC :
COG Built-in ILI9881C









TIANMA TM034XVZP01 Interface Details

Signal Electrical :
Voltage Supply
1.8/5.0/-5.0V (Typ.)(IOVCC/VDD/-VDD)
Current Supply
-
Signal Type :
MIPI (3 data lanes)
Logic Voltage
-
Interface Features :
Position
-
Type
FPC
Interface Detail :
Brand
Model
Pitch
Pins
Quantity
Pin Configuration


0.3 mm
39 pins
1 pcs





































TIANMA TM034XVZP01 Backlight Details

Backlight Features :
Type
WLED
Quantity
2S4P
Position
Edge light type
Replacement
-
Shape
Array
Life Time
30K(Typ.) Hours
Lamp Electrical :
Voltage Supply
12.8V (Typ.)
Current Supply
40mA (Typ.)
Consumption
512mW (Typ.)
Interface Features :
Position
-
Type
Included in panel signal interface
Backlight Driver :
No













































TIANMA TM034XVZP01 Packing Details

Package Box : Quantity Weight Box Size
96 pcs / box



FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.



TM034XVZP01 TIANMA 3.4 inch 800×800 350 cd/m² INDUSTRIAL LCD DISPLAY 0TM034XVZP01 TIANMA 3.4 inch 800×800 350 cd/m² INDUSTRIAL LCD DISPLAY 1
