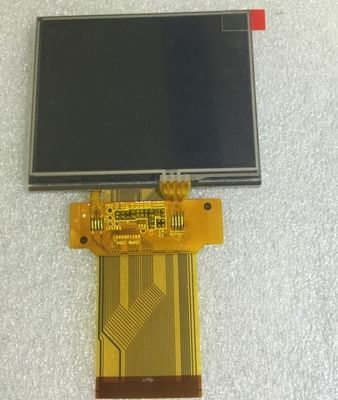

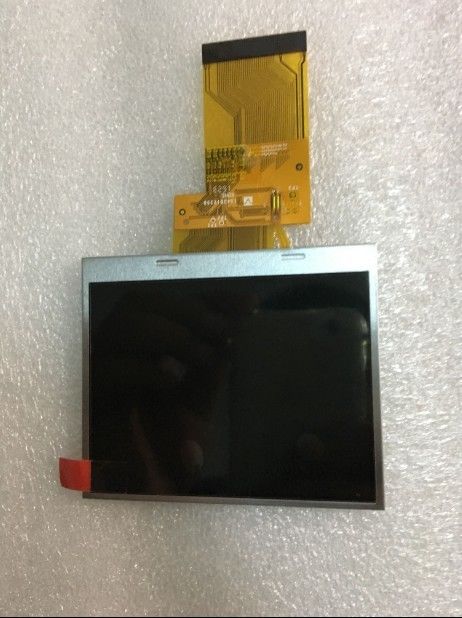

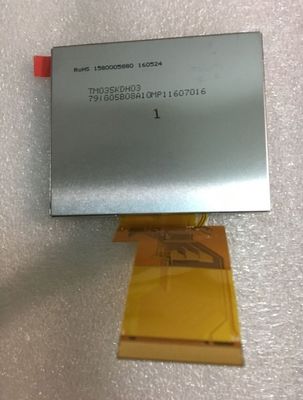

TM035KBH11 TIANMA 3.5 inch 320(RGB)×240 350cd/m² INDUSTRIAL LCD DISPLAY

TM035KBH11 TIANMA 3.5 inch 320(RGB)×240 350cd/m²  INDUSTRIAL LCD DISPLAY
TM035KBH11 TIANMA 3.5 inch 320(RGB)×240 350cd/m²  INDUSTRIAL LCD DISPLAY TM035KBH11 TIANMA 3.5 inch 320(RGB)×240 350cd/m²  INDUSTRIAL LCD DISPLAY TM035KBH11 TIANMA 3.5 inch 320(RGB)×240 350cd/m²  INDUSTRIAL LCD DISPLAY

Large Image :  TM035KBH11 TIANMA 3.5 inch 320(RGB)×240 350cd/m² INDUSTRIAL LCD DISPLAY

Product Details:
Brand Name: TIANMA
Certification: ISO9001
Model Number: TM035KBH11
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Packaging Details: STANDARD PACKING
Delivery Time: 1-2 DAYS
Payment Terms: TT/PAYPAL/ESCROW/WESTERN UNION
Supply Ability: 5000PCS

TM035KBH11 TIANMA 3.5 inch 320(RGB)×240 350cd/m² INDUSTRIAL LCD DISPLAY

Description
MODEL NUMBER: TM035KBH11 BRAND: TIANMA
Viewing Angle: 70/70/60/70 (Typ.)(CR≥10 TEMPERATURE RANG: Storage Temp.: -30 ~ 70 °C Operating Temp.: -20 ~ 60 °C
SIGNAL LNTERFACE: LVDS Lamp Type: WLED
BRIGHTNESS: 350 Cd/m² (Typ.) RESOLUTION: 320(RGB)×240 (QVGA) 115PPI
SIZE: 3.5 Inch
High Light:

WLED Backlight Tianma TFT

,

WQVGA TIANMA LCD Panel

TIANMA TM035KBH11 Packing Features

Package Carton : Amount Weight Carton Size
168 pcs / box 10.617±5% Kgs 530×350×250 mm (L×W×H)



TIANMA TM035KBH11 Backlight Features

Backlight Features: Type Position Shape Amount  Life(Hours) Replacement
WLED Edge light type 1 string 6S1P - -
WLED Electrical : Current Input Voltage Input Consumption
20/25mA (Typ./Max.) 19.2/21.6V (Typ./Max.) 384mW (Typ.)
Interface Features : Position Type WLED Driver
- Included in panel signal interface No



TIANMA TM035KBH11 Interface Features

Signal Electrical : Current Input Voltage Input Consumption
- 3.3V (Typ.) 35/50mW (Typ./Max.)
Voltage for Display Signals : 0≤VIL≤0.2VCC; 0.8VCC≤VIH≤VCC
Interface Features : Position Type Interface
- FPC Digital RGB (8/24-bit) + SPI, CCIR601/656
Signal Interface : Brand Model Amount Pin Pitch Pins Pin Assignment
    1 pcs 0.5 mm 54 pins



TIANMA TM035KBH11 Electronics Features

Frame Rate : 60Hz
Reverse Scan : No
D-IC Detail : Built-in NT39016D
Time Controller (T-CON) : Embedded T-CON



TIANMA TM035KBH11 Optical Features

Basic Information : Brightness Operating Mode Contrast Ratio
350 cd/m² (Typ.) TN, Normally White, Transmissive 400:1 (Typ.) (Transmissive)
Viewing Angle(L/R/U/D) Viewing Direction Response Speed
70/70/60/70 (Typ.)(CR≥10) 12 o'clock 20 (Typ.)(Tr+Td) (ms)
Dispaly Color : Color Temperature Color Amount White color Chromaticity
6090K 16.7M (6-bit + Dithering) X:0.320; Y:0.335
1931 Color Gamlt : NTSC Ratio sRGB Coverage Adobe RGB Coverage
52% 72% 54%
DCI-P3 Coverage Rec.2020 Coverage Remarks
54% 39% sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)
Luminance Variation : 1.25 (Typ.)(9 points)



TIANMA TM035KBH11 Mechanical Features

Panel Size : 3.5 inch
Pixel Features : Resolution Pixel Arrangement Dot Pitch (W×H) Pixel Pitch (W×H)
320(RGB)×240, QVGA RGB Vertical Stripe 0.073×0.219 mm 0.219×0.219 mm [115PPI]
Mechanical Size : Active Area (W×H) Bezel Area (W×H) Outline Dimension (W×H) Outline Depth
70.08×52.56 mm 72.08×54.56 mm 76.9×63.9 mm 4.0±0.2 mm
Outline Features : Form Style Aspect Ratio Orientation Shape Style
Flat Rectangle 4:3 (W : H) Landscape type
Touchscreen : Touch Points TP Controller Signal Type Touch Tech
- Without touch controller - 4-wire Resistive Touch
Other Features : Panel Cover Weight Surface
- 40.6g Antiglare, Hard coating (3H



TIANMA TM035KBH11 Application Features

Basic Information : Brand Model Type Model Alias
  TM035KBH11 a-Si TFT-LCD , LCM -
Reliability : RoHS Operating Temperature Storage Temperature Vibration Resistance
  -20 ~ 60 °C -30 ~ 70 °C -
Designed For :



Specific Features :




Remarks : 3 in 1 FPC; Down side FPC (37.00mm length)



FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
