TM050QDH01 TIANMA 5.0 inch 640(RGB)×480 350cd/m² INDUSTRIAL LCD DISPLAY

TM050QDH01 TIANMA 5.0 inch 640(RGB)×480 350cd/m² INDUSTRIAL LCD DISPLAY
TM050QDH01 TIANMA 5.0 inch 640(RGB)×480 350cd/m² INDUSTRIAL LCD DISPLAY TM050QDH01 TIANMA 5.0 inch 640(RGB)×480 350cd/m² INDUSTRIAL LCD DISPLAY TM050QDH01 TIANMA 5.0 inch 640(RGB)×480 350cd/m² INDUSTRIAL LCD DISPLAY

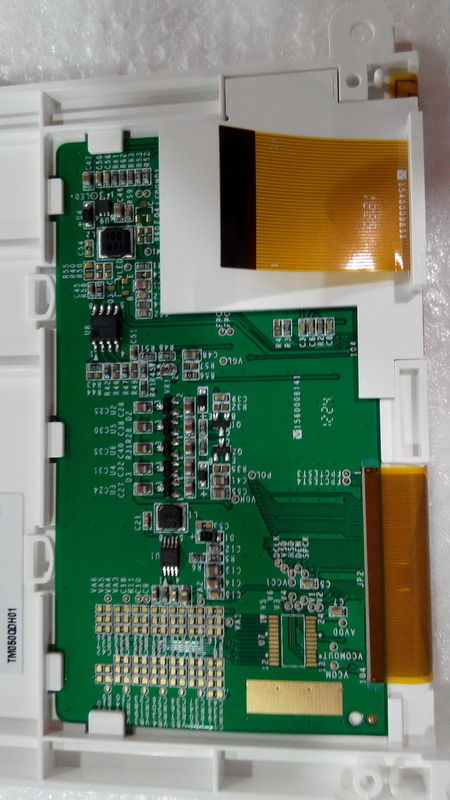

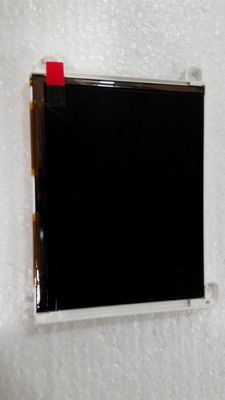

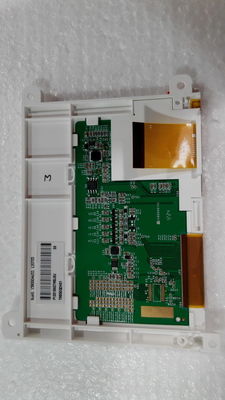

Large Image :  TM050QDH01 TIANMA 5.0 inch 640(RGB)×480 350cd/m² INDUSTRIAL LCD DISPLAY

Product Details:
Place of Origin: JAPAN
Brand Name: TIANMA
Certification: ISO9001
Model Number: TM050QDH01
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Packaging Details: STANDARD PACKING
Delivery Time: 1-2 DAYS
Payment Terms: TT/PAYPAL/ESCROW/WESTERN UNION
Supply Ability: 5000PCS
Contact Now

TM050QDH01 TIANMA 5.0 inch 640(RGB)×480 350cd/m² INDUSTRIAL LCD DISPLAY

Description
MODEL NUMBER: TM050QDH01 BRAND: TIANMA
SIZE: 5.0INCH RESOLUTION: 640(RGB)×480 [VGA] 160PPI
BRIGHTNESS: 350 Cd/m² (Typ.) TEMPERATURE RANGE: Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -20 ~ 70 °C
Viewing Angle: 70/70/70/60 (Typ.)(CR≥10) SIGNAL LNTERFACE: LVDS
Lamp Type: WLED
High Light:

WLED Backlight Tianma TFT

,

WQVGA TIANMA LCD Panel

IANMA TM050QDH01 Application Details

Basic Information :
Brand

Model
TM050QDH01
Type
a-Si TFT-LCD , LCM
Used For

Screen Size
5.0 inch
Alias
-
Environment :
Storage Temp.
-20 ~ 70 °C
Operating Temp.
-20 ~ 70 °C
RoHS

Vibration
-
Typical Features :




  • Matte
Remarks :
2 in 1 FPC





TIANMA TM050QDH01 Mechanical Details

Pixel Features :
Resolution
640(RGB)×480, VGA
Dot Pitch(mm)
0.0529×0.1587 (H×V)
Pixel Format
RGB Vertical Stripe
Pixel Pitch(mm)
0.1587×0.1587 (H×V) [160PPI]
Mechanical Size :
Active Area(mm)
101.568(H) × 76.176(V)
Bezel Area(mm)
-
Outline Dim.(mm)
-
Depth(mm)
7.9/15.0 (Typ./Max.)
Outline Features :
Form Style
Flat Rectangle
Shape Style

Aspect Ratio
4:3 (H:V)
Orientation
Landscape type
Mounting :
Face mounting holes (4 pcs) on up, down, left slugs
Other Spec :
Weight
82.2±0.5g
Treatment
Antiglare, Hard coating (3H)



TIANMA TM050QDH01 Optical Details

Basic Information :
Luminance(cd/m²)
350 (Typ.)
Contrast Ratio
500:1 (Typ.) (Transmissive)
Viewing Angle
70/70/70/60 (Typ.)(CR≥10)
Display Mode
TN, Normally White, Transmissive
Best View on
6 o'clock
Response(ms)
20 (Typ.)(Tr+Td)
Color Performance :
White Coordinate
Wx:0.306; Wy:0.316
Display Colors
262K (6-bit)
Color Temperature
7029K
White Uniformity
1.25/1.33 (Typ./Max.)(9 points)
1931 Color Gamlt :
NTSC Ratio
50%
sRGB
70% coverage
Adobe RGB
52% coverage
DCI-P3
52% coverage
Rec.2020
37% coverage
Remarks
sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)



TIANMA TM050QDH01 Electronics Details

Frame Rate :
60Hz
Reverse Scan :
No
Driver IC :
Built-in NT39403B + NT39207
Time Controller (T-CON) :
Embedded T-CON



TIANMA TM050QDH01 Interface Detail

Signal Electrical :
Voltage Supply
3.3V (Typ.)
Current Supply
200/300mA (Typ./Max.)
Consumption
660/1080mW (Typ./Max.)
Signal Type :
Parallel RGB (1 ch, 6-bit) + SPI
Logic Voltage
0≤VIL≤0.2VDD; 0.8VDD≤VIH≤VDD
Interface Features :
Position
-
Type
FPC
Interface Detail :
Brand
Model
Pitch
Pins
Quantity
Pin Configuration


0.5 mm
40 pins
1 pcs



TIANMA TM050QDH01 Backlight Details

Backlight Features :
Type
WLED
Quantity
3S5P
Position
Edge light type
Replacement
-
Shape
Array
Life Time
50K(Typ.) (Hours)
Interface Features :
Position
-
Type
Included in panel signal interface
Backlight Driver :
With LED Driver
Driver Electrical :
Voltage Supply
5.0±0.5V
Current Supply
240mA (Typ.)
Consumption
1.2W



TIANMA TM050QDH01 Packing Details

Package Box : Quantity Weight Box Size
34 pcs / box 6.0±0.3Kgs 530×350×250 mm (L×W×H)



FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
