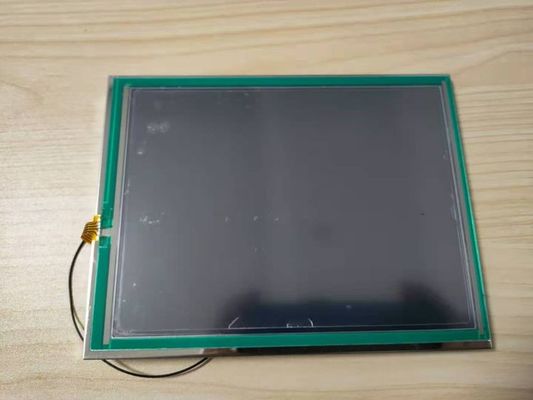

Product Details:
|
| MODEL NUMBER: | TX17D02VM2CAA | BRAND: | HITACHI |
|---|---|---|---|
| SIZE: | 6.5"inch | RESOLUTION: | 640(RGB)×480 [VGA] 122PPI |
| BRIGHTNESS: | 800 Cd/m² (Typ.) | TEMPERATURE RANGE: | Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C ; Vibration Level: 2.0G (19.6 M/s²) |
| High Light: | 6.5" 640×480 Industrial Lcd Panel,800nits Industrial Lcd Panel,122PPI Square Tft Display |
||
| Basic Information : | Manufacturer | Panel Model | Panel Type | Alias |
|---|---|---|---|---|
 |
TX17D02VM2CAA | a-Si TFT-LCD , LCM | - | |
| Environment : | RoHS State | Operating Temp. | Storage Temp. | Vibration Level |
|
-20 ~ 70 °C | -30 ~ 80 °C | 2.0G (19.6 m/s²) | |
| Used For : |
|
|||
| Specific Features : |
|
|||
| Remarks : | EOL because of no demand. | |||
| Basic Information : | Luminance (cd/m²) | Viewing Angle (L/R/U/D) | Response Time (ms) |
|---|---|---|---|
| 600 (Typ.) | 80/80/60/80 (Typ.)(CR≥10) | 30 (Typ.)(Tr+Td) | |
| Best View on | Display Mode | Contrast Ratio | |
| 6 o'clock | TN, Normally White, Transmissive | 600 : 1 (Typ.) (Transmissive) | |
| Dispaly Color : | Color Temperature | Display Colors | White Coordinate |
| 7525K | 262K (6-bit) | X:0.300; Y:0.310 | |
| 1931 Color Gamlt : | NTSC Ratio | sRGB Coverage | Adobe RGB Coverage |
| 45% | 62% | 47% | |
| DCI-P3 Coverage | Rec.2020 Coverage | Remarks | |
| 46% | 33% | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) | |
| White Variation : | 1.43 (Max.)(9 points) |
||
| Panel Size : | 6.5" | |||
|---|---|---|---|---|
| Pixel Features : | Pixel Format | Pixel Configuration | Pixel Pitch (mm) | Dot Pitch (mm) |
| 640(RGB)×480 [VGA] | RGB Vertical Stripe | 0.207×0.207 [122PPI] | 0.069×0.207 | |
| Mechanical Size : | Active Area (mm) | Bezel Area (mm) | Outline Dimension (mm) | Outline Depth (mm) |
| 132.48(H) × 99.36(V) | 135.9(H) × 102.8(V) | 153(H) × 118(V) | 9.1±0.5 mm | |
| Outline Features : | Form Factor | Orientation | Aspect Ratio | Shape Style |
| Flat Rectangle | Landscape type | 4:3 (H:V) | ||
| Mounting : | Side mounting holes (4-M2) | |||
| Other Detail : | Weight | Panel Cover | Treatment | |
| 190g (Typ.) | ||||
| Reverse Scan : | Yes (180°) | |
|---|---|---|
| Vertical Frequency : | 60Hz Power Consumption :
| 4.72W (Typ.) |
| Lamp Features: | Type | Position | Quantity |
Shape | Life(Hours) | Lamp Exchange |
|---|---|---|---|---|---|---|
| WLED | Edge light type | 3S4P | - | 70K(Typ.) | - | |
| Interface Features : | Position | Backlight Driver | Type | |||
| - | With LED Driver | Connector | ||||
| Interface Detail : | Brand | Model | Pin Pitch | Pin Amount | Quantity | Configuration |
| JST | SM02(8.0)B-BHS-1-TB(LF)(SN) | 8.0 mm | 2 pins | 1 pcs | BDE-2PINS-VG | |
| Driver Electrical : | Voltage Supply | Current Supply | Power Consumption | |||
| 12.0±0.3V | 340±20mA | 4.08W (Typ.) | ||||
| Lamp Features: | Type | Position | Quantity |
Shape | Life(Hours) | Lamp Exchange |
|---|---|---|---|---|---|---|
| WLED | Edge light type | 3S4P | - | 70K(Typ.) | - | |
| Interface Features : | Position | Backlight Driver | Type | |||
| - | With LED Driver | Connector | ||||
| Interface Detail : | Brand | Model | Pin Pitch | Pin Amount | Quantity | Configuration |
| JST | SM02(8.0)B-BHS-1-TB(LF)(SN) | 8.0 mm | 2 pins | 1 pcs | BDE-2PINS-VG | |
| Driver Electrical : | Voltage Supply | Current Supply | Power Consumption | |||
| 12.0±0.3V | 340±20mA | 4.08W (Typ.) | ||||
