Product Details:
|
| MODEL NUMBER: | TX17D01VM2CPA | BRAND: | HITIACH |
|---|---|---|---|
| SIZE: | 6.5 Inch | RESOLUTION: | 640(RGB)×480 (VGA) 122PPI |
| BRIGHTNESS: | 480 Cd/m² (Typ.) | TEMPERATURE RANGE: | Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C ; Vibration Level: 2.0G (19.6 M/s²) |
| Highlight: | 480cd/M2 Square Tft Panel,0.48W Square Tft Panel,122PPI High Brightness Lcd Screen |
||
Kaohsiung Hitachi Electronics Co., Ltd. (hereafter called HITACHI) TX17D01VM2CPA is a 6.5 inch diagonal a-Si TFT-LCD display panel product, with an integral WLED backlight system, With LED Driver , touchscreen 4-wire Resistive Touch, F/G. It features an operating temperature range of -20 ~ 70°C , a storage temperature range of -30 ~ 80°C , and the maximal vibration level of 2.0G (19.6 m/s²)
HITACHI TX17D01VM2CPA Application Features

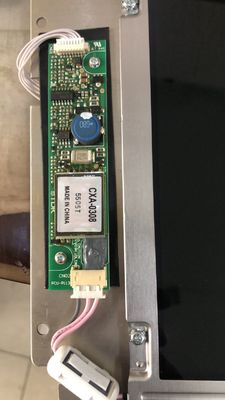

| Basic Information : | Manufacturer | Panel Model | Panel Type | Alias |
|---|---|---|---|---|
| TX17D01VM2CPA | a-Si TFT-LCD , LCM | - | ||
| Environment : | RoHS State | Operating Temp. | Storage Temp. | Vibration Level |
| -20 ~ 70 °C | -30 ~ 80 °C | 2.0G (19.6 m/s²) | ||
| Used For : | ||||
| Specific Features : | ||||
| Basic Information : | Luminance (cd/m²) | Viewing Angle (L/R/U/D) | Response Time (ms) |
|---|---|---|---|
| 480 (Typ.) | 80/80/60/80 (Typ.)(CR≥10) | 30 (Typ.)(Tr+Td) | |
| Best View on | Display Mode | Contrast Ratio | |
| 6 o'clock | TN, Normally White, Transmissive | 600 : 1 (Typ.) (Transmissive) | |
| Dispaly Color : | Color Temperature | Display Colors | White Coordinate |
| 7525K | 262K (6-bit) | X:0.300; Y:0.310 | |
| 1931 Color Gamlt : | NTSC Ratio | sRGB Coverage | Adobe RGB Coverage |
| 72% | 52% | 49% | |
| DCI-P3 Coverage | Rec.2020 Coverage | Remarks | |
| 43% | 40% | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) | |
| White Variation : | 1.43 (Max.)(9 points) | ||
| Panel Size : | 6.5" | |||
|---|---|---|---|---|
| Pixel Features : | Pixel Format | Pixel Configuration | Pixel Pitch (mm) | Dot Pitch (mm) |
| 640(RGB)×480 [VGA] | RGB Vertical Stripe | 0.207×0.207 [122PPI] | 0.069×0.207 | |
| Mechanical Size : | Active Area (mm) | Bezel Area (mm) | Outline Dimension (mm) | Outline Depth (mm) |
| 132.48(H) × 99.36(V) | 135.9(H) × 102.8(V) | 153(H) × 118(V) | 10.2 (Typ.) mm | |
| Outline Features : | Form Factor | Orientation | Aspect Ratio | Shape Style |
| Flat Rectangle | Landscape type | 4:3 (H:V) | ||
| Touch Screen : | Controller | Touch Points | Interface | TP Technology |
| - | - | - | 4-wire Resistive Touch, F/G | |
| Mounting : | Side mounting holes (4-M2) | |||
| Other Detail : | Weight | Panel Cover | Treatment | |
| 240g (Typ.) | - | Antiglare | ||
| Reverse Scan : | Yes (180°) |
|---|---|
| Vertical Frequency : | 60Hz |
| Power Consumption : | 4.56W (Typ.) |
| Lamp Features: | Type | Position | Quantity | Shape | Life(Hours) | Lamp Exchange |
|---|---|---|---|---|---|---|
| WLED | Edge light type | 3S4P | 4 strings | 70K(Typ.) | - | |
| Interface Features : | Position | Backlight Driver | Type | |||
| - | With LED Driver | Connector | ||||
| Interface Detail : | Brand | Model | Pin Pitch | Pin Amount | Quantity | Configuration |
| JST | SM02(8.0)B-BHS-1-TB(LF)(SN) | 8.0 mm | 2 pins | 1 pcs | BDE-2PINS-VG | |
| Driver Electrical : | Voltage Supply | Current Supply | Power Consumption | |||
| 12.0±0.3V | 340±20mA | 4.08W (Typ.) | ||||
| Panel Driving Electrical : | Voltage Supply | Current Supply | Power | |||
|---|---|---|---|---|---|---|
| 3.3V (Typ.)(VDD) | 144/172mA (Typ./Max.) | 0.48W (Typ.) | ||||
| Voltage for Display Signals : | VSS≤VIL≤0.3VDD; 0.7VDD≤VIH≤VDD | |||||
| Interface Features : | Position | Signal | Type | |||
| - | CMOS (1 ch, 6-bit) | Connector | ||||
| Connector Detail : | Brand | Model | Pin Pitch | Pin Amount | Quantity | Configuration |
| HRS | DF9-31P-1V | 1.0 mm | 31 pins | 1 pcs | DRGB-31P1C6B-010M | |
