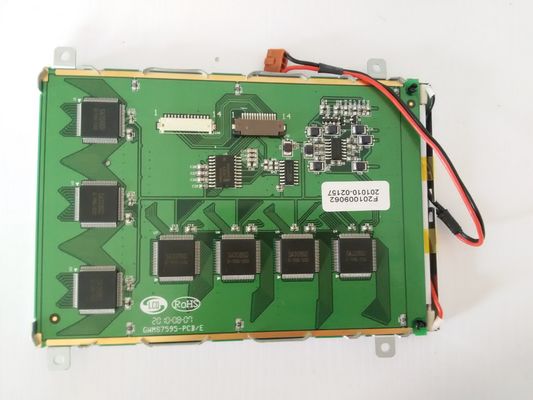

Product Details:
|
| MODEL NUMBER: | TX14D12VM1CAB | BRAND: | HITIACH |
|---|---|---|---|
| SIZE: | 5.7INCH | RESOLUTION: | 320(RGB)×240 [QVGA] 70PPI |
| BRIGHTNESS: | 480 Cd/m² (Typ.) | TEMPERATURE RANGE: | Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C |
| High Light: | LVDS TFT LCD Panel,High Brightness TFT LCD 149PPI,SVGA 82PPI TFT LCD Panel |
||
| Basic Information : | Brand | Model | TX14D12VM1CAB | |
|---|---|---|---|---|
| Type | LCM a-Si TFT-LCD | Used For | ||
| Screen Size | 5.7" | Alias | - | |
| Environment : | Storage Temp. | -30 ~~ 80 °C | Operating Temp. | -20 ~~ 70 °C |
| RoHS | Vibration | 2.0G (19.6 m/s²) | ||
| Typical Features : |
|
|||
| Remarks : | LTS|WTR, QVGA/VGA mode selectable | |||
| Pixel Features : | Resolution | 320(RGB)×240, QVGA | Dot Pitch(mm) | 0.120×0.360 (H×V) |
|---|---|---|---|---|
| Pixel Format | RGB Vertical Stripe | Pixel Pitch(mm) | 0.360×0.360 (H×V) [70PPI] | |
| Mechanical Size : | Active Area(mm) | 115.2(H) × 86.4(V) | Bezel Area(mm) | 119.4(H) × 90.6(V) |
| Outline Dim.(mm) | 131(H) × 102.2(V) | Depth(mm) | 12.4±0.5 | |
| Outline Features : | Form Style | Flat Rectangle | Outline Shape | |
| Aspect Ratio | 4:3 (H:V) | Orientation | Landscape type | |
| Touch Panel : | Touch Points | - | Touch Panel | 4-wire Resistive Touch |
| Mounting : | Rear mounting holes (4-Ф2.4) | |||
| Other Spec : | Weight | 200g (Typ.) | Treatment | Antiglare |
| Basic Information : | Luminance(cd/m²) | 480 (Typ.) | Contrast Ratio | 350:1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Viewing Angle | 65/65/70/50 (Typ.)(CR≥5) | Display Mode | TN, Normally White, Transmissive | |
| Best View on | 6 o'clock | Response(ms) | 45 (Typ.)(Tr+Td) | |
| Color Performance : | White Coordinate | X:0.290; Y:0.290 | Display Colors | 262K (6-bit) |
| Color Temperature | 8914K | White Uniformity | - | |
| 1931 Color Gamlt : | NTSC Ratio | 60% | sRGB | 83% coverage |
| Adobe RGB | 63% coverage | DCI-P3 | 62% coverage | |
| Rec.2020 | 45% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
| Frame Rate : | 60Hz |
|---|---|
| Reverse Scan : | No |
| Time Controller (T-CON) : | Embedded T-CON |
| Signal Electrical : | Voltage Supply | 3.3V (Typ.)(VDD) | Current Supply | 65mA (Typ.)(IDD) | ||
|---|---|---|---|---|---|---|
| Signal Type : | CMOS (1 ch, 6-bit) | Signal Voltage | VSS≤VIL≤0.8V; 2.0V≤VIH≤VDD | |||
| Interface Features : | Position | - | Type | Connector | ||
| Interface Detail : | Brand | Model | Quantity | Pins | Pitch | Pin Configuration |
| JAE | FA5B040HP1 | 1 pcs | 40 pins | 0.5 mm | DRGB-40P1C6B-430B | |
| Backlight Features: | Shape | L shape | Type | CCFL | Position | Edge light type |
|---|---|---|---|---|---|---|
| Replacement | - | Quantity | 1 pcs | Life Time | 50K(Typ.) (Hours) | |
| Lamp Electrical : | Voltage Supply | 760V (Typ.) | Current Supply | 2.0/5.0/6.0mA (Min./Typ./Max.) | ||
| Frequency | 55KHz (Typ.) | Startup Voltage | 1300V (Min.)(Ta=5℃) | |||
| Interface Features : | Position | - | Type | Connector | ||
| Interface Detail : | Brand | Model | Quantity | Pins | Pitch | Pin Configuration |
| JST | BHR-03VS-1 | 1 pcs | 3 pins | 4.0 mm | BLL-3PINS-HNL | |
| Backlight Driver : | No | |||||
