Product Details:
|

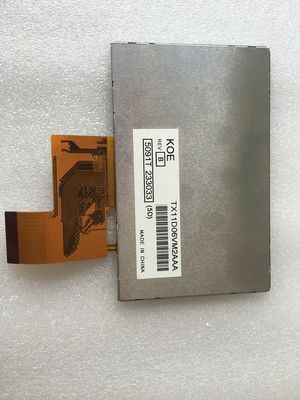

| MODEL NUMBER: | TX11D06VM2AAA | BRAND: | HITIACH |
|---|---|---|---|
| SIZE: | 4.3 Inch | RESOLUTION: | 480(RGB)×272 [WQVGA] 128PPI |
| BRIGHTNESS: | 500 Cd/m² (Typ.) | TEMPERATURE RANGE: | Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C |
| Viewing Angle: | 70/70/50/70 (Typ.)(CR≥10) | ||
| High Light: | High Brightness TFT LCD 149PPI,SVGA 82PPI TFT LCD Panel |
||
| Basic Info : | Panel Brand | Panel Model | TX11D06VM2AAA | |
|---|---|---|---|---|
| Diagonal Size | 4.3" | Application | ||
| Panel Type | a-Si TFT-LCD , LCM | Model Alias | - | |
| Reliability : | Operating Temp. | -20 ~ 70 °C | Storage Temp. | -30 ~ 80 °C |
| RoHS State | Vibration Rating | - | ||
| Specific Features : | ||||
| Remarks : | 2 in 1 FPC | |||
| Pixel Features : | Pixel Format | 480(RGB)×272 [WQVGA] | Dot Pitch | 0.066×0.198 mm (H×V) |
|---|---|---|---|---|
| Configuration | RGB Vertical Stripe | Pixel Pitch | 0.198×0.198 mm (H×V) [128PPI] | |
| Mechanical Size : | Display Area | 95.04×53.856 mm (H×V) | Bezel Area | 98.7×57.5 mm (H×V) |
| Outline Dim. | 105.5×67.2 mm (H×V) | Outline Depth | 2.9±0.2 mm | |
| Outline Features : | Form Factor | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio | 16:9 (H:V) | Shape Style | ||
| Other Features : | Weight | 45.0g (Typ.) | Surface |
| Basic Information : | Brightness | 500 cd/m² (Typ.) | Contrast Ratio | 500:1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Viewing Angle | 70/70/50/70 (Typ.)(CR≥10) | Optical Mode | TN, Normally White, Transmissive | |
| Viewing Direction | 12 o'clock | Response Time | 25 (Typ.)(Tr+Td) (ms) | |
| Color Performance : | Chromaticity | Wx:0.313; Wy:0.330 | Color Numbers | 16.7M (8-bit) |
| Color Temperature | 6477K | White Uniformity | 1.33/1.43 (Typ./Max.)(9 points |
| Frame Frequency : | 60Hz |
|---|---|
| Reverse Scan : | No |
| Power Consumption : | 6.14W (Typ.) |
| Back-light Features: | Lamp Shape | 1 string | Lamp Type | WLED | Life Time | 20K(Typ.) (Hours) |
|---|---|---|---|---|---|---|
| Replacement | - | Amount | 9S1P | Position | Edge light type | |
| Lamp Electrical : | Voltage Input | 27.9V (Typ.) | Current Input | 20±2mA | ||
| Consumption | 558mW (Typ.) | |||||
| Interface Features : | Type | Included in panel signal interface | Position | - | Lamp Driver | No |
| Signal Systerm : | CMOS (1 ch, 8-bit) | Logic Voltage | VSS≤VIL≤0.2VDD; 0.8VDD≤VIH≤VDD | |||
|---|---|---|---|---|---|---|
| Signal Electrical : | Voltage Input | 3.3V (Typ.) | Current Input | 17/25mA (Typ./Max.) | ||
| Consumption | 56mW (Typ.) | |||||
| Interface Features : | Type | FPC | Position | - | ||
| FPC Detail : | Brand | Model | Pin Pitch | Pins | Amount | Configuration |
| 0.5 mm | 40 pins | 1 pcs | DRGB-40P1C8B-085A | |||
whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 95.04(W)×53.856(H) mm, outline size of 105.5(W)×67.2(H)×3.1(D) mm, viewing area size of 98.7(W)×57.5(H) mm, net weight of 45.0g (Typ.). As a TN, Normally White, Transmissive LCM product, TX11D06VM2AAA can provides 500 cd/m² display brightness 500:1 transimissive contrast ratio, 70/70/50/70 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on 12 o'clock , and response time of 25 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors. This product adopted 9S1P WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 20K hours, external backlight driver is additionally needed. TX11D06VM2AAA utilizes CMOS (1 ch, 8-bit) as it's signal inputting systerm, which connected by 40 pins FPC with power supply voltage of 3.3V (Typ.).
