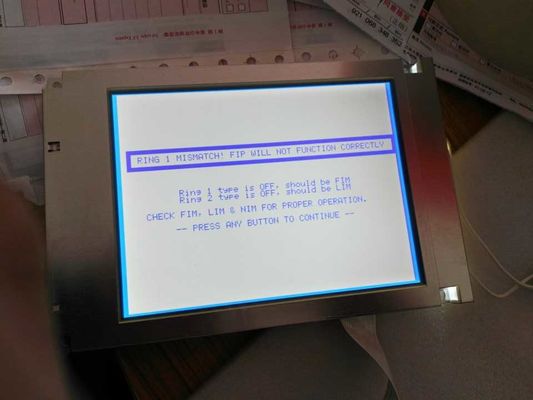

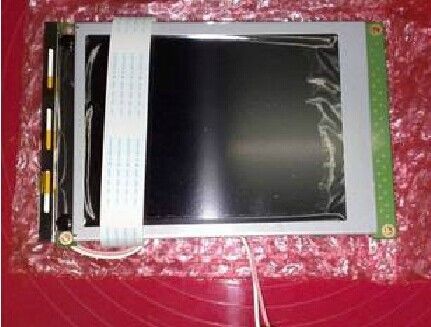

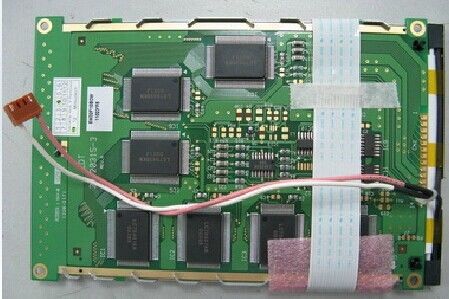

SP14Q002-C2A HITACHI 5.7 inch 320×240 110 cd/m² Storage Temperature: -20 ~ 70 °C INDUSTRIAL LCD DISPLAY

Large Image : SP14Q002-C2A HITACHI 5.7 inch 320×240 110 cd/m² Storage Temperature: -20 ~ 70 °C INDUSTRIAL LCD DISPLAY

Product Details:

Place of Origin:	JAPAN
Brand Name:	HITACHI
Certification:	ISO9001
Model Number:	SP14Q002-C2A

Payment & Shipping Terms:

Minimum Order Quantity:	1PCS
Packaging Details:	STANDARD PACKING
Delivery Time:	1-2 DAYS
Payment Terms:	TT/PAYPAL/ESCROW/WESTERN UNION
Supply Ability:	100PCS

Contact Now

SP14Q002-C2A HITACHI 5.7 inch 320×240 110 cd/m² Storage Temperature: -20 ~ 70 °C INDUSTRIAL LCD DISPLAY

Description

MODEL NUMBER:	SP14Q002-C2A	BRAND:	HITACHI
SIZE:	5.7 Inch	RESOLUTION:	320×240 [QVGA] 70PPI
BRIGHTNESS:	110 Cd/m² (Typ.	TEMPERATURE RANGE:	Operating Temperature: 0 ~ 60 °C ; Storage Temperature: -20 ~ 70 °C
High Light:	VGA 76PPI TFT LCD Panel , 45% NTSC TFT LCD Panel

HITACHI SP14Q002-C2A Application Details

Basic Info :	Panel Brand Panel Model SP14Q002-C2A Diagonal Size 5.7" Application Panel Type FSTN-LCD , LCM Model Alias -
Reliability :	Operating Temp. 0 ~ 60 °C Storage Temp. -20 ~ 70 °C RoHS State Vibration Rating 1.2G (11.76 m/s²)
Specific Features :

HITACHI SP14Q002-C2A Mechanical Details

Pixel Features :	Pixel Format 320×240, QVGA Dot Pitch 0.360×0.360 mm (H×V) Configuration Rectangle Pixel Pitch 0.360×0.360 mm (H×V) [70PPI]
Mechanical Size :	Display Area 115.185×86.385 mm (H×V) Bezel Area - Outline Dim. 167×109 mm (H×V) Outline Depth 11.4 (Max.) mm
Outline Features :	Form Factor Flat Rectangle Orientation Landscape type Aspect Ratio 4:3 (H:V) Shape Style
Touch Screen :	Touch Points - TP Signal - TP Controller - Touchscreen 4-wire Resistive Touch
Holes & Brackets :	Face mounting holes (4-Φ3.5) on left, right bezel
Other Features :	Weight - Surface Glare (Haze 0%)

Overview Specs Stocks Suppliers Touch Panels OEM/ODM RFQs Driver Kits

HITACHI SP14Q002-C2A Application Details

Basic Info :	Panel Brand Panel Model SP14Q002-C2A Diagonal Size 5.7" Application Panel Type FSTN-LCD , LCM Model Alias -
Reliability :	Operating Temp. 0 ~ 60 °C Storage Temp. -20 ~ 70 °C RoHS State Vibration Rating 1.2G (11.76 m/s²)
Specific Features :

Add to Favorites
Book Stock Alert
Book RFQ Alert
Add to Compare
North American Sales
日本販売

HITACHI SP14Q002-C2A Mechanical Details

Pixel Features :	Pixel Format 320×240, QVGA Dot Pitch 0.360×0.360 mm (H×V) Configuration Rectangle Pixel Pitch 0.360×0.360 mm (H×V) [70PPI]
Mechanical Size :	Display Area 115.185×86.385 mm (H×V) Bezel Area - Outline Dim. 167×109 mm (H×V) Outline Depth 11.4 (Max.) mm
Outline Features :	Form Factor Flat Rectangle Orientation Landscape type Aspect Ratio 4:3 (H:V) Shape Style
Touch Screen :	Touch Points - TP Signal - TP Controller - Touchscreen 4-wire Resistive Touch
Holes & Brackets :	Face mounting holes (4-Φ3.5) on left, right bezel
Other Features :	Weight - Surface Glare (Haze 0%)

Disclaimer : Inputted by panelook engineers according to datasheet, but we cannot guarantee the spec listed is entirely correct.
Back to Top

HITACHI SP14Q002-C2A Optical Details

Basic Information :	Brightness 110 cd/m² (Typ.) Contrast Ratio 25:1 (Typ.) (Transmissive) Viewing Angle 40 (Typ.)(CR≥2, Φ2-Φ1) Optical Mode STN, Black/White (Negative), Transmissive Viewing Direction 6 o'clock Response Time 120/150 (Typ.)(Tr/Td) ms
Color Performance :	Chromaticity - Color Numbers Monochrome

HITACHI SP14Q002-C2A Electronics Details

Frame Frequency :	75Hz Reverse Scan :	No
Driving Method :	Duty: 1/240

HITACHI SP14Q002-C2A Backlight Details

Back-light Features :	Lamp Type CCFL Amount 1 pcs Life Time - Replacement - Lamp Shape Straight Position Edge light type
Lamp Electrical :	Voltage Input 300V (Typ.) Current Input 5.0±1.0mA Frequency 70/85KHz (Typ./Max.) Kick-off Voltage 1000V (Min.)(Ta=+25℃)
Interface Features :	Type Connector Position - Lamp Driver No
Interface Detail :	Brand Model Pin Pitch Pins Amount Configuration JAE IL-G-4S-S3C2 2.5 mm 4 pins 1 pcs BLL-4PINS-HNNL

HITACHI SP14Q002-C2A Interface Detail

Signal Systerm :	Parallel Data (4-bit) Logic Voltage -
Signal Electrical :	Voltage Input 3.3/5.0V (Typ.)(VDD) Current Input -
Interface Features :	Type FPC Position -
FPC Detail :	Brand Model Pin Pitch Pins Amount Configuration 1.25 mm 14 pins 1 pcs
