SP14Q001-X HITACHI 5.7 inch 320×240 65 cd/m² (Typ.) ; Storage Temperature: -20 ~ 60 °C INDUSTRIAL LCD DISPLAY

SP14Q001-X HITACHI 5.7 inch 320×240 65 cd/m² (Typ.) ; Storage Temperature: -20 ~ 60 °C INDUSTRIAL LCD DISPLAY
SP14Q001-X HITACHI 5.7 inch 320×240 65 cd/m² (Typ.) ; Storage Temperature: -20 ~ 60 °C INDUSTRIAL LCD DISPLAY SP14Q001-X HITACHI 5.7 inch 320×240 65 cd/m² (Typ.) ; Storage Temperature: -20 ~ 60 °C INDUSTRIAL LCD DISPLAY SP14Q001-X HITACHI 5.7 inch 320×240 65 cd/m² (Typ.) ; Storage Temperature: -20 ~ 60 °C INDUSTRIAL LCD DISPLAY SP14Q001-X HITACHI 5.7 inch 320×240 65 cd/m² (Typ.) ; Storage Temperature: -20 ~ 60 °C INDUSTRIAL LCD DISPLAY

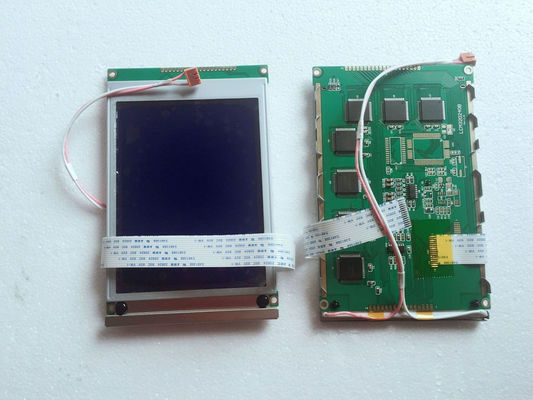

Large Image :  SP14Q001-X HITACHI 5.7 inch 320×240 65 cd/m² (Typ.) ; Storage Temperature: -20 ~ 60 °C INDUSTRIAL LCD DISPLAY

Product Details:
Place of Origin: JAPAN
Brand Name: HITACHI
Certification: ISO9001
Model Number: SP14Q001-X
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Packaging Details: STANDARD PACKING
Delivery Time: 1-2 DAYS
Payment Terms: TT/PAYPAL/ESCROW/WESTERN UNION
Supply Ability: 200PCS
Contact Now

SP14Q001-X HITACHI 5.7 inch 320×240 65 cd/m² (Typ.) ; Storage Temperature: -20 ~ 60 °C INDUSTRIAL LCD DISPLAY

Description
MODEL NUMBER: SP14Q001-X BRAND: HITACHI
SIZE: 5.7 Inch RESOLUTION: 320×240, QVGA, 70PPI
BRIGHTNESS: 65 Cd/m² (Typ.) TEMPERATURE RANGE: Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C
High Light:

VGA 76PPI TFT LCD Panel

,

45% NTSC TFT LCD Panel

HITACHI SP14Q001-X Application Details

Basic Information :
Brand
SP14Q001-X HITACHI 5.7 inch 320×240 65 cd/m² (Typ.) ; Storage Temperature: -20 ~ 60 °C INDUSTRIAL LCD DISPLAY 0
Model
SP14Q001-X
Type
STN-LCD , LCM
Used For
  • SP14Q001-X HITACHI 5.7 inch 320×240 65 cd/m² (Typ.) ; Storage Temperature: -20 ~ 60 °C INDUSTRIAL LCD DISPLAY 1
Screen Size
5.7 inch
Alias
-
Environment :
Storage Temp.
-20 ~ 60 °C
Operating Temp.
0 ~ 50 °C
RoHS
SP14Q001-X HITACHI 5.7 inch 320×240 65 cd/m² (Typ.) ; Storage Temperature: -20 ~ 60 °C INDUSTRIAL LCD DISPLAY 2
Vibration
-
Typical Features :
  • With Touch













































HITACHI SP14Q001-X Mechanical Details



Pixel Features :
Resolution
320×240, QVGA
Dot Pitch(mm)
0.360×0.360 (H×V)
Pixel Format
Rectangle
Pixel Pitch(mm)
0.360×0.360 (H×V) [70PPI]
Mechanical Size :
Active Area(mm)
115.185(H) × 86.385(V)
Bezel Area(mm)
-
Outline Features :
Form Style
Flat Rectangle
Shape Style

Aspect Ratio
4:3 (H:V)
Orientation
Landscape type
Touch Panel :
Touch Points
-
Touch Panel
8-wire Resistive Touch


HITACHI SP14Q001-X Optical Details

Basic Information :
Luminance(cd/m²)
65 (Typ.)
Contrast Ratio
-
Viewing Angle
-
Display Mode
STN, Blue mode (Negative), Transmissive
Best View on
-
Response(ms)
-
Color Performance :
White Coordinate
-
Display Colors
Monochrome


HITACHI SP14Q001-X Electronics Details

Frame Rate :
75Hz
Reverse Scan :
No

HITACHI SP14Q001-X Electronics Details

Frame Rate :
75Hz
Reverse Scan :
No
OverviewSpecsStocksSuppliersTouch PanelsOEM/ODMRFQsDriver Kits

HITACHI SP14Q001-X Application Details

Basic Information :
Brand
SP14Q001-X HITACHI 5.7 inch 320×240 65 cd/m² (Typ.) ; Storage Temperature: -20 ~ 60 °C INDUSTRIAL LCD DISPLAY 0
Model
SP14Q001-X
Type
STN-LCD , LCM
Used For
  • SP14Q001-X HITACHI 5.7 inch 320×240 65 cd/m² (Typ.) ; Storage Temperature: -20 ~ 60 °C INDUSTRIAL LCD DISPLAY 1
Screen Size
5.7 inch
Alias
-
Environment :
Storage Temp.
-20 ~ 60 °C
Operating Temp.
0 ~ 50 °C
RoHS
SP14Q001-X HITACHI 5.7 inch 320×240 65 cd/m² (Typ.) ; Storage Temperature: -20 ~ 60 °C INDUSTRIAL LCD DISPLAY 2
Vibration
-
Typical Features :
  • With Touch

HITACHI SP14Q001-X Mechanical Details

Pixel Features :
Resolution
320×240, QVGA
Dot Pitch(mm)
0.360×0.360 (H×V)
Pixel Format
Rectangle
Pixel Pitch(mm)
0.360×0.360 (H×V) [70PPI]
Mechanical Size :
Active Area(mm)
115.185(H) × 86.385(V)
Bezel Area(mm)
-
Outline Features :
Form Style
Flat Rectangle
Shape Style

Aspect Ratio
4:3 (H:V)
Orientation
Landscape type
Touch Panel :
Touch Points
-
Touch Panel
8-wire Resistive Touch
  • Disclaimer : The above parameters are not from the datasheet, only as a reference, please use with caution!
  • SP14Q001-X HITACHI 5.7 inch 320×240 65 cd/m² (Typ.) ; Storage Temperature: -20 ~ 60 °C INDUSTRIAL LCD DISPLAY 10 Back to Top

HITACHI SP14Q001-X Optical Details

Basic Information :
Luminance(cd/m²)
65 (Typ.)
Contrast Ratio
-
Viewing Angle
-
Display Mode
STN, Blue mode (Negative), Transmissive
Best View on
-
Response(ms)
-
Color Performance :
White Coordinate
-
Display Colors
Monochrome
  • Disclaimer : The above parameters are not from the datasheet, only as a reference, please use with caution!
  • SP14Q001-X HITACHI 5.7 inch 320×240 65 cd/m² (Typ.) ; Storage Temperature: -20 ~ 60 °C INDUSTRIAL LCD DISPLAY 10 Back to Top

HITACHI SP14Q001-X Electronics Details

Frame Rate :
75Hz
Reverse Scan :
No

HITACHI SP14Q001-X Interface Details

Signal Electrical :
Voltage Supply
5.0V (Typ.)
Current Supply
6.0mA (Typ.)
Signal Type :
Parallel Data (4-bit)
Logic Voltage
-
Interface Features :
Position
-
Type
FPC
Interface Detail :
Brand
Model
Pitch
Pins
Quantity
Pin Configuration SP14Q001-X HITACHI 5.7 inch 320×240 65 cd/m² (Typ.) ; Storage Temperature: -20 ~ 60 °C INDUSTRIAL LCD DISPLAY 27


1.25 mm
14 pins
1 pcs

  • Disclaimer : The above parameters are not from the datasheet, only as a reference, please use with caution!
  • SP14Q001-X HITACHI 5.7 inch 320×240 65 cd/m² (Typ.) ; Storage Temperature: -20 ~ 60 °C INDUSTRIAL LCD DISPLAY 10 Back to Top

HITACHI SP14Q001-X Backlight Details

Backlight Features :
Type
CCFL
Quantity
1 pcs
Position
Edge light type
Replacement
-
Shape
Straight
Life Time
-
Lamp Electrical :
Voltage Supply
300V (Typ.)
Current Supply
5.0±1.0mA
Frequency
70/85KHz (Typ./Max.)
Startup Voltage
1000V (Min.)(Ta=+25℃)
Interface Features :
Position
-
Type
Connector
Interface Detail :
Brand
Model
Pitch
Pins
Quantity
Pin Configuration SP14Q001-X HITACHI 5.7 inch 320×240 65 cd/m² (Typ.) ; Storage Temperature: -20 ~ 60 °C INDUSTRIAL LCD DISPLAY 29
JAE
IL-G-4S-S3C2
2.5 mm
4 pins
1 pcs
BLL-4PINS-HNNL
Backlight Driver :
No
