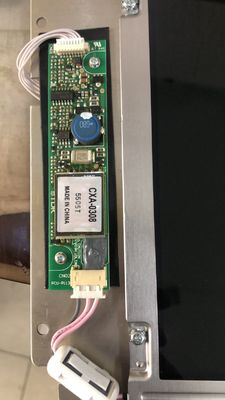

Product Details:
|
| MODEL NUMBER: | SP10Q010-TZA | BRAND: | KOE |
|---|---|---|---|
| SIZE: | 3.8 Inch | RESOLUTION: | 320×240 [QVGA] 105PPI |
| BRIGHTNESS: | 50 Cd/m² (Typ.) | TEMPERATURE RANGE: | Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -20 ~ 80 °C |
| SIGNAL LNTERFACE: | LVDS | Lamp Type: | WLED |
| Highlight: | TFT LCD Display SVGA 119PPI,LVDS TFT LCD Module |
||
| Basic Information : | Brand | Model | Type | Model Alias |
|---|---|---|---|---|
 |
SP10Q010-TZA | FSTN-LCD , LCM | - | |
| Reliability : | RoHS | Operating Temperature | Storage Temperature | Vibration Resistance |
|
-20 ~ 70 °C | -30 ~ 80 °C | - | |
| Designed For : |
|
|||
| Specific Features : |
|
|||
| Panel Size : | 3.8 inch | |||
|---|---|---|---|---|
| Pixel Features : | Resolution | Pixel Arrangement | Dot Pitch (W×H) | Pixel Pitch (W×H) |
| 320×240, QVGA | Rectangle | 0.240×0.240 mm | 0.240×0.240 mm [105PPI] | |
| Mechanical Size : | Active Area (W×H) | Bezel Area (W×H) | Outline Dimension (W×H) | Outline Depth |
| 76.79×57.59 mm | - | 94.7×73.3 mm | 6.5±0.5 mm | |
| Outline Features : | Form Style | Aspect Ratio | Orientation | Shape Style |
| Flat Rectangle | 4:3 (W : H) | Landscape type | ||
| Touchscreen : | Touch Points | TP Controller | Signal Type | Touch Tech |
| - | - | - | 4-wire Resistive Touch | |
| Other Features : | Panel Cover | Weight | Surface | |
| - | - | Antiglare, Hard coating (2H) | ||
| Basic Information : | Brightness | Operating Mode | Contrast Ratio |
|---|---|---|---|
| 50 cd/m² (Typ.) | STN, Black/White (Positive), Transflective | 4:1 (Typ.) (Transmissive) | |
| Viewing Angle(L/R/U/D) | Viewing Direction | Response Speed | |
| 80 (Typ.)(CR≥2, Φ2-Φ1) | 6 o'clock | 150/350 (Typ.)(Tr/Td) (ms) | |
| Dispaly Color : | Color Temperature | Color Amount | White color Chromaticity |
| - | Monochrome | - | |
| Performance : | 3D Type | Outdoor Visibility | Reflectance |
| - | Sunlight Readable | - |
| Frame Rate : | 75Hz Reverse Scan :
| No |
|---|---|---|
| Driving Method : | Duty: 1/242 , Bias: 1/13 |
| Signal Electrical : | Current Input | Voltage Input | Consumption | |||
|---|---|---|---|---|---|---|
| 2.38mA (Typ.) | 3.3V (Typ.) | - | ||||
| Interface Features : | Position | Type | Interface | |||
| - | FPC | Parallel Data (4-bit) | ||||
| Signal Interface : | Brand | Model | Amount | Pin Pitch | Pins | Pin Assignment |
| 1 pcs | 0.5 mm | 20 pins | ||||
| Backlight Features: | Type | Position | Shape | Amount |
Life(Hours) | Replacement |
|---|---|---|---|---|---|---|
| WLED | Edge light type | Parallel | 1S6P | - | - | |
| WLED Electrical : | Current Input | Voltage Input | Consumption |
|||
| 110/120mA (Typ./Max.) | 5.0/5.2V (Typ./Max.) | |||||
| Interface Features : | Position | Type | WLED Driver | |||
| - | Included in panel signal interface | No | ||||
