C080VAT01.2 AUO 8INCH 800×480RGB 750CD/M2 WLED LVDS Operating Temp.: -30 ~ 85 °C INDUSTRIAL LCD DISPLAY

C080VAT01.2 AUO 8INCH 800×480RGB 750CD/M2 WLED LVDS Operating Temp.: -30 ~ 85 °C INDUSTRIAL LCD DISPLAY
C080VAT01.2 AUO 8INCH 800×480RGB 750CD/M2 WLED LVDS Operating Temp.: -30 ~ 85 °C INDUSTRIAL LCD DISPLAY C080VAT01.2 AUO 8INCH 800×480RGB 750CD/M2 WLED LVDS Operating Temp.: -30 ~ 85 °C INDUSTRIAL LCD DISPLAY C080VAT01.2 AUO 8INCH 800×480RGB 750CD/M2 WLED LVDS Operating Temp.: -30 ~ 85 °C INDUSTRIAL LCD DISPLAY

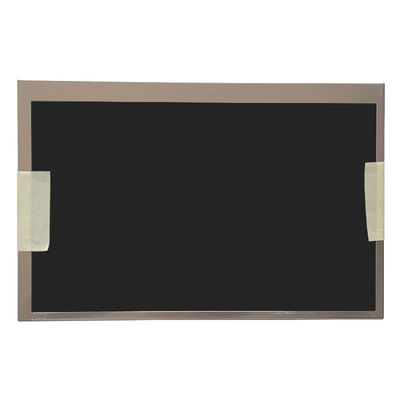

Large Image :  C080VAT01.2 AUO 8INCH 800×480RGB 750CD/M2 WLED LVDS Operating Temp.: -30 ~ 85 °C INDUSTRIAL LCD DISPLAY

Product Details:
Place of Origin: CHINA
Brand Name: AUO
Certification: ISO9001
Model Number: C080VAT01.2
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Packaging Details: STANDARD PACKING
Delivery Time: 1-2 DAYS
Payment Terms: TT/PAYPAL/WESTERN UNION/ESCROW
Supply Ability: 300PCS
Contact Now

C080VAT01.2 AUO 8INCH 800×480RGB 750CD/M2 WLED LVDS Operating Temp.: -30 ~ 85 °C INDUSTRIAL LCD DISPLAY

Description
MODEL NUMBER: C080VAT01.2 BRAND: AUO
SIZE: 8INCH RESOLUTION: 800×480 RGB
BRIGHTNESS: 750CD/M2 TEMPERATURE RANGE: Operating Temp.: -30 ~ 85 °C ; Storage Temp.: -40 ~ 95 °C
High Light:

LVDS Industrial LCD Screen

,

Transmissive AUO TFT LCD



AUO C080VAT01.2 Application Details

Basic Info :
Panel Brand

Panel Model
C080VAT01.2
Diagonal Size
8.0"
Application

Panel Type
a-Si TFT-LCD , LCM
Model Alias
-
Reliability :
Operating Temp.
-30 ~ 85 °C
Storage Temp.
-40 ~ 95 °C
RoHS State

Vibration Rating
-



AUO C080VAT01.2 Mechanical Details

Pixel Features :
Pixel Format
800(RGB)×480, WVGA
Dot Pitch
0.0735×0.207 mm (H×V)
Configuration
RGB Vertical Stripe
Pixel Pitch
0.207×0.207 mm (H×V) [117PPI]
Mechanical Size :
Display Area
176.4×99.36 mm (H×V)
Bezel Area
179×102 mm (H×V)
Outline Dim.
190×116 mm (H×V)
Outline Depth
8.4 (Typ.) mm
Outline Features :
Form Factor
Flat Rectangle
Orientation
Landscape type
Aspect Ratio
16:9 (H:V)
Shape Style

Touch Screen :
Touch Points
-
TP Signal
-
TP Controller
Without touch controller
Touchscreen
PCAP
Holes & Brackets :
Rear mounting Pole (4-M3)
Other Features :
Weight
275g (Typ.)
Surface
Antiglare



AUO C080VAT01.2 Optical Details

Basic Information :
Brightness
750 cd/m² (Typ.)
Contrast Ratio
1000:1 (Typ.) (Transmissive)
Viewing Angle
89/89/89/89 (Typ.)(CR≥10)
Optical Mode
AHVA, Normally Black, Transmissive
Viewing Direction
Symmetry
Response Time
25 (Typ.)(Tr+Td) ms
Color Performance :
Chromaticity
-
Color Numbers
16.7M (8-bit)
Dispaly Performance :
Outdoor Visibility
Sunlight Readable
Transmittance
-



AUO C080VAT01.2 Electronics Details

Frame Frequency :
60Hz
Reverse Scan :
Yes (U/D, L/R)



AUO C080VAT01.2 Backlight Details

Back-light Features :
Lamp Type
WLED
Amount
-
Life Time
-
Replacement
-
Lamp Shape
-
Position
-



AUO C080VAT01.2 Interface Detail

Signal Systerm :
LVDS (1 ch, 8-bit)
Logic Voltage
-
Interface Features :
Type
FPC
Position
-
FPC Detail :
Brand
Model
Pin Pitch
Pins
Amount
Configuration


0.5 mm
50 pins
1 pcs

FAQ:

Q1: What's the quality of your LCD Panel?



A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.



Q2: What is your return and refund policy?



A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.



Q3: How long is the lead time?



A: The lead time is about 1-3 working days after receipt of payment.



Q4: How can I get the quotation?



A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
