Product Details:
|

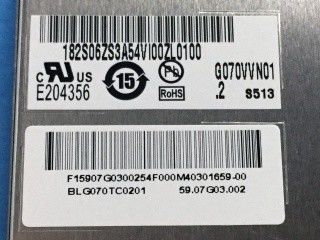

MODEL NUMBER: | G070VVN01.2 | BRAND: | AUO |
---|---|---|---|
SIZE: | 7.0 | RESOLUTION: | 800(RGB)×480, WVGA, 133PPI |
BRIGHTNESS: | 600 Cd/m² (Typ.) | TEMPERATURE RANGE: | Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C |
High Light: | WLED LVDS AUO LCD Display,CCFL LVDS AUO TFT LCD |

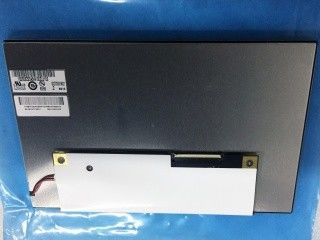

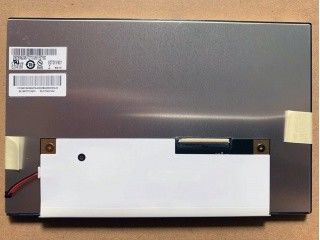

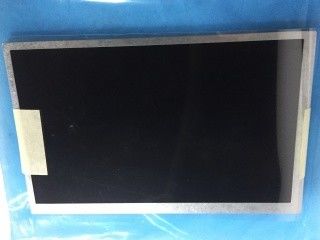

AU Optronics Corp. (hereafter called AUO) G070VVN01.2 is a 7.0 inch diagonal a-Si TFT-LCD display panel product, with an integral WLED backlight system, without backlight driver, without touch screen. It features an operating temperature range of -20 ~ 70°C , a storage temperature range of -30 ~ 80°C , and the maximal vibration level of 1.5G (14.7 m/s²).
Screen Size : | 7.0" | |||
---|---|---|---|---|
Pixel Features : | Pixel Number | Pixel Format | Dot Pitch (H×V) | Pixel Pitch (H×V) |
800(RGB)×480, WVGA | RGB Vertical Stripe | 0.0635×0.1905 mm | 0.1905×0.1905 mm [133PPI] | |
Mechanical Size : | Display Area (H×V) | Bezel Opening (H×V) | Overall Dimension (H×V) | Overall Depth |
152.4×91.44 mm | 154.2×93.2 mm | 164.55×104.71 mm | 8.5 (Max.) mm | |
Outline Features : | Form Shape | Aspect Ratio (H:V) | Orientation | Shape Style |
Flat Rectangle | 15:9 | Landscape type | ||
Other Spec : | Mass | Panel Cover | Surface Treatment | |
143g (Typ.) | - | Antiglare, Hard coating (3H) |
Basic Information : | Luminance | Work Mode | Contrast Ratio |
---|---|---|---|
600 cd/m² (Typ.) | AMVA3, Normally Black, Transmissive | 1500:1 (Typ.) (Transmissive) | |
Good View at | Viewing Angle | Response Time | |
Symmetry | 80/80/80/80 (Typ.)(CR≥10) | 10/25 (Typ.)(Tr/Td) (ms) | |
Dispaly Color : | Color Temperature: | Support Color | Color Coordinate |
6601K | 262K/16.2M (6-bit / 6-bit + FRC) | X:0.311; Y:0.328 | |
1931 Color Gamlt : | NTSC Ratio | sRGB Coverage | Adobe RGB Coverage |
70% | 90% | 70% | |
DCI-P3 Coverage | Rec.2020 Coverage | Remarks | |
73% | 53% | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) | |
White Uniformity : | 1.25 (Max.)(9 points) |
Signal Electrical : | Input Voltage | Input Current | Power Consumption | |||
---|---|---|---|---|---|---|
3.3V (Typ.) | 160/197mA (Typ./Max.) | 528/650mW (Typ./Max.) | ||||
Interface Features : | Signal Type | Physical Type | Interface Position | |||
Parallel RGB (1 ch, 6/8-bit) | Connector | - | ||||

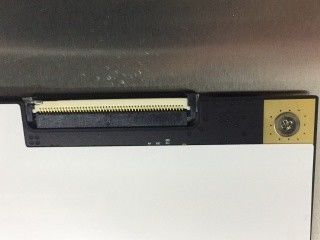

Interface Detail : | Brand Name | Model Name | Amount | Pins | Pin Pitch | Pin Configuration |
JAE | FA5B050HP1 | 1 pcs | 50 pins | 0.5 mm |
