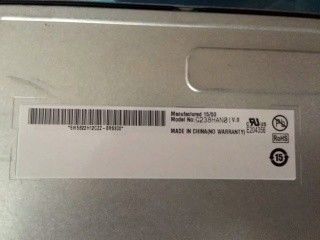

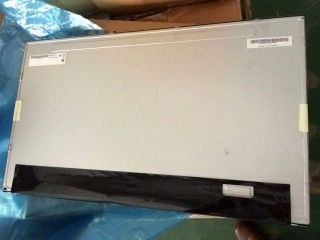

G238HAN01.0 AUO 23.8 INCH WLED Backlight，Reverse I/F，Matte TCO 6.0 Compliance

G238HAN01.0 AUO 23.8 INCH WLED Backlight，Reverse I/F，Matte TCO 6.0 Compliance
G238HAN01.0 AUO 23.8 INCH WLED Backlight，Reverse I/F，Matte TCO 6.0 Compliance G238HAN01.0 AUO 23.8 INCH WLED Backlight，Reverse I/F，Matte TCO 6.0 Compliance

Large Image :  G238HAN01.0 AUO 23.8 INCH WLED Backlight，Reverse I/F，Matte TCO 6.0 Compliance

Product Details:
Place of Origin: CHINA
Brand Name: AUO
Certification: ISO9001
Model Number: G238HAN01.0
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Packaging Details: STANDARD PACKING
Delivery Time: 1-2DAYS
Payment Terms: TT/PAYPAL/ESCROW/WESTERN UNION
Supply Ability: 200PCS
Contact Now

G238HAN01.0 AUO 23.8 INCH WLED Backlight，Reverse I/F，Matte TCO 6.0 Compliance

Description
MODEL NUMBER: G238HAN01.0 BRAND: AUO
SIZE: 23.8 RESOLUTION: 1920(RGB)×1080 (FHD) 92PPI
BRIGHTNESS: 250 Cd/m² (Typ.) TEMPERATURE RANGE: Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C
High Light:

LVDS Industrial LCD Screen

,

6 Bit TFT LCD Panel

AUO G238HAN01.0 Summary

AU Optronics Corp. (hereafter called AUO) G238HAN01.0 is a 23.8 inch diagonal a-Si TFT-LCD display panel product, with an integral WLED backlight system, without backlight driver, without touch screen. It features an operating temperature range of 0 ~ 50°C , a storage temperature range of -20 ~ 60°C , and the maximal vibration level of 1.5G (14.7 m/s²).







AUO G238HAN01.0 Optical Details

Basic Detail :
Luminance
250 cd/m² (Typ.)
Contrast Ratio
1000:1 (Typ.) (Transmissive)
Good View at
Symmetry
Response Speed
14 (Typ.)(G to G) ms
Viewing Angle
89/89/89/89 (Typ.)(CR≥10)
Operating Mode
AHVA, Normally Black, Transmissive
Color Performance :
Chromaticity
Wx:0.313; Wy:0.329
Support Color
16.7M (6-bit + Hi-FRC)
Color Temperature
6485K
White Variation
1.25/1.33 (Typ./Max.)(9 points)
1931 Color Gamlt :
NTSC Ratio
75%
sRGB
97% coverage
Adobe RGB
75% coverage
DCI-P3
77% coverage
Rec.2020
56% coverage
Remarks
sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)



AUO G238HAN01.0 Mechanical Details

Pixel Features :
Number of Pixel
1920(RGB)×1080, FHD
Arrangement
RGB Vertical Stripe
Dot Pitch(W×H)
0.0915×0.2745 mm
Pixel Pitch(W×H)
0.2745×0.2745 mm [92PPI]
Physical Size :
Active Viewing
527.04(W)×296.46(H) mm
Overall Dim.
543(W)×317.4(H) mm
Bezel Opening
530.2(W)×299.6(H) mm
Overall Depth
8.4/11.65 (Typ./.Max.) mm
Outline Features :
Form Shape
Flat Rectangle
Orientation
Landscape type
Aspect Ratio(W:H)
16:9
Shape Style

Fixation :
Side mounting holes (4-M3) on left, right bezel
Other Detail :
Mass
2.28±0.08Kgs
Surface
Antiglare, Hard coating (3H)



AUO G238HAN01.0 Lightting Details

Lamp Features :
Lamp Type
WLED
Amount
17S4P
Position
Edge light type (Bottom side)
Exchange
-
Lamp Shape
4 strings
Lamp Life
30K(Min.) (Hours)
Lamp Electrical :
Input Voltage
54.4±6.8V
Input Current
70/77mA (Typ./Max.)
Consumption
15.2/17.1W (Typ./.Max.)
Interface Features :
Position
Down left corner
Type
Connector
Interface Detail :
Brand
Model
Pitch
Pins
Amount
Pin Assignment
E&T
3707K-S06N-21R
1.0 mm
6 pins
1 pcs
BLE-6PINS-CCAACC
Backlight Driver :
No



FAQ:

Q1: What's the quality of your LCD Panel?



A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.



Q2: What is your return and refund policy?



A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.



Q3: How long is the lead time?



A: The lead time is about 1-3 working days after receipt of payment.



Q4: How can I get the quotation?



A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
