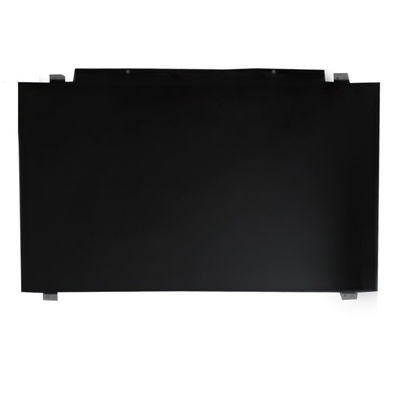

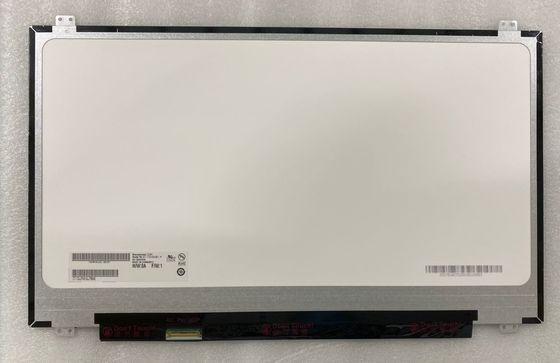

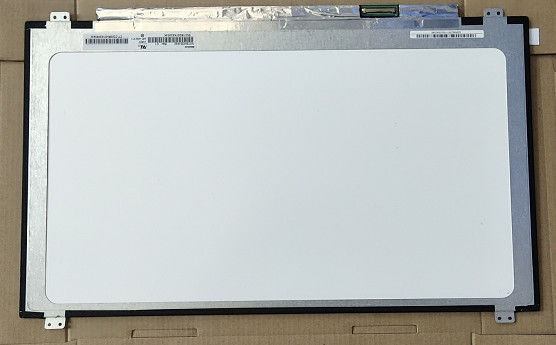

Product Details:
|
| MODEL NUMBER: | B173HAN01.6 | BRAND: | AUO |
|---|---|---|---|
| SIZE: | 17.3INCH | RESOLUTION: | 1920×1080RGB |
| BRIGHTNESS: | 300CD/M2 | TEMPERATURE RANGE: | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
| High Light: | LVDS Industrial LCD Screen,6 Bit TFT LCD Panel |
||
| Basic Information : | Brand Name | Model Name | Type | Model Alias |
|---|---|---|---|---|
| B173HAN01.6 | a-Si TFT-LCD , LCM | AUO169D | ||
| Maximum Ratings : | RoHS | Operating Temperature | Storage Temperature | Vibration Level |
| 0 ~ 50 °C | -20 ~ 60 °C | - | ||
| Application : |
|
|||
| Typical Features : | ||||
| Remarks : | eDP1.3 | |||
| Screen Size : | 17.3" | |||
|---|---|---|---|---|
| Pixel Features : | Pixel Number | Pixel Format | Dot Pitch (H×V) | Pixel Pitch (H×V) |
| 1920(RGB)×1080, FHD | RGB Vertical Stripe | 0.0663×0.1989 mm | 0.1989×0.1989 mm [127PPI] | |
| Mechanical Size : | Display Area (H×V) | Bezel Opening (H×V) | Overall Dimension (H×V) | Overall Depth |
| 381.888×214.812 mm | - | 398.1×250.5 mm | 3.57/4.0 (Typ./Max.) mm | |
| Outline Features : | Form Shape | Aspect Ratio (H:V) | Orientation | Shape Style |
| Flat Rectangle | 16:9 | Landscape type | Flat (PCBA Flat, T3.4~4.0mm) | |
| Other Spec : | Mass | Panel Cover | Surface Treatment | |
| 550g (Max.) | - | Antiglare, Hard coating (3H) | ||
| Holes & Brackets : | Face mounting holes (8 pcs) on up, down slugs | |||
| Basic Information : | Luminance | Work Mode | Contrast Ratio |
|---|---|---|---|
| 300 cd/m² (Typ.) | AHVA, Normally Black, Transmissive | 1000:1 (Typ.) (Transmissive) | |
| Good View at | Viewing Angle | Response Time | |
| Symmetry | 85/85/85/85 (Typ.)(CR≥10) | 25 (Typ.)(Tr+Td) (ms) | |
| Dispaly Color : | Color Temperature: | Support Color | Color Coordinate |
| 6485K | 16.2M (6-bit + FRC) | X:0.313; Y:0.329 | |
| 1931 Color Gamut : | NTSC Ratio | sRGB Coverage | Adobe RGB Coverage |
| 71% | 94% | 73% | |
| DCI-P3 Coverage | Rec.2020 Coverage | Remarks | |
| 73% | 53% | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) | |
| White Uniformity : | 1.25/1.60 (Max.)(5/13 points) | ||
| Signal Electrical : | Input Voltage | Input Current | Power Consumption | |||
|---|---|---|---|---|---|---|
| 3.3V (Typ.) | 567mA (Max.) | 1.7W (Max.) | ||||
| Interface Features : | Signal Type | Physical Type | Interface Position | |||
| eDP (4 Lanes), eDP1.3 | Connector |  |
||||
| Interface Detail : | Brand Name | Model Name | Amount | Pins | Pin Pitch | Pin Configuration |
| I-PEX | 20455-040E-12R | 1 pcs | 40 pins | 0.5 mm | ||
