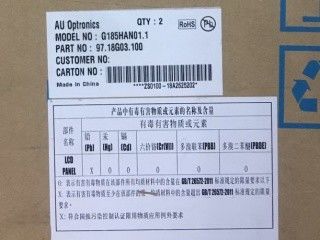

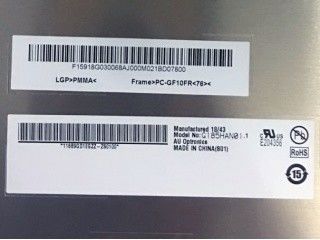

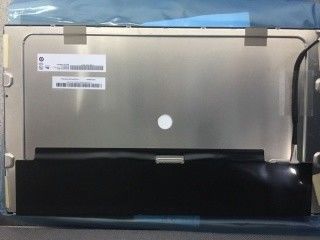

Product Details:
|
| MODEL NUMBER: | G185HAN01.1 | BRAND: | AUO |
|---|---|---|---|
| SIZE: | 18.5 | RESOLUTION: | 1920(RGB)×1080 [FHD] 119PPI |
| BRIGHTNESS: | 500 Cd/m² (Typ.) | TEMPERATURE RANGE: | Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -25 ~ 70 °C |
| Viewing Angle: | 89/89/89/89 (Typ.)(CR≥10) | ||
| High Light: | LVDS Industrial LCD Screen,6 Bit TFT LCD Panel |
||
| Basic Information : | Brand | Model | G185HAN01.1 | |
|---|---|---|---|---|
| Type | LCM a-Si TFT-LCD | Used For |
|
|
| Screen Size | 18.5" | Alias | - | |
| Environment : | Storage Temp. | -25 ~~ 70 °C | Operating Temp. | -20 ~~ 70 °C |
| RoHS | Vibration | 1.5G (14.7 m/s²) |
| Pixel Features : | Resolution | 1920(RGB)×1080, FHD | Dot Pitch(mm) | 0.071×0.213 (H×V) |
|---|---|---|---|---|
| Pixel Format | RGB Vertical Stripe | Pixel Pitch(mm) | 0.213×0.213 (H×V) [119PPI] | |
| Mechanical Size : | Active Area(mm) | 408.96(H) × 230.04(V) | Bezel Area(mm) | 412.56(H) × 233.64(V) |
| Outline Dim.(mm) | 430.4(H) × 254.6(V) | Depth(mm) | 12.0±0.5 | |
| Outline Features : | Form Style | Flat Rectangle | Outline Shape | |
| Aspect Ratio | 16:9 (H:V) | Orientation | Landscape type | |
| Mounting : | Side mounting holes (4-M3) on left, right bezel | |||
| Other Spec : | Weight | 1.20Kgs (Typ.) | Treatment | Antiglare, Hard coating (3H) |
| Basic Information : | Luminance(cd/m²) | 500 (Typ.) | Contrast Ratio | 1000:1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) | Display Mode | AHVA, Normally Black, Transmissive | |
| Best View on | Symmetry | Response(ms) | 10/10 (Typ.)(Tr/Td) | |
| Color Performance : | White Coordinate | X:0.299; Y:0.315 | Display Colors | 16.7M (8-bit) |
| Color Temperature | 7502K | White Uniformity | 1.18/1.25 (Typ./Max.)(9 points) | |
| 1931 Color Gamut : | NTSC Ratio | 73% | sRGB | 99% coverage |
| Adobe RGB | 76% coverage | DCI-P3 | 76% coverage | |
| Rec.2020 | 55% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
| Frame Rate : | 60Hz |
|---|---|
| Reverse Scan : | No |
| Power Consumption : | 28.54W (Max.) |
| Signal Electrical : | Voltage Supply | 5.0V (Typ.) | Current Supply | 0.8/1.0A (Typ./Max.) | ||
|---|---|---|---|---|---|---|
| Consumption | 4.0/5.5W (Typ./Max.) | |||||
| Signal Type : | LVDS (2 ch, 8-bit) | Signal Voltage | - | |||
| Interface Features : | Position | Type | Connector | |||
| Interface Detail : | Brand | Model | Quantity | Pins | Pitch | Pin Configuration |
| JAE | FI-XB30SSRLA-HF16 | 1 pcs | 30 pins | 1.0 mm | LVDS-30P2C8B-160A | |
| Backlight Features: | Shape | 7 strings | Type | WLED | Position | Edge light type |
|---|---|---|---|---|---|---|
| Replacement | No | Quantity | 8S7P | Life Time | 50K(Min.) (Hours) | |
| Lamp Electrical : | Voltage Supply | 25.6/28.8V (Typ./Max.) | Current Supply | 95mA (Typ.) | ||
| Consumption | 17.02/19.15W (Typ./Max.) | |||||
| Interface Features : | Position | - | Type | Connector | ||
| Interface Detail : | Brand | Model | Quantity | Pins | Pitch | Pin Configuration |
| E&T | 3808K-F05N-12R | 1 pcs | 5 pins | 1.25 mm | ||
| Backlight Driver : | With LED Driver | |||||
| Driver Electrical : | Voltage Supply | 12.0±1.2V | Current Supply | 1.6A (Typ.) | ||
| Consumption | 19.2/23.04W (Typ./Max.) | |||||
whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 408.96(W)×230.04(H) mm, outline size of 430.4(W)×254.6(H)×12.5(D) mm, viewing area size of 412.56(W)×233.64(H) mm, with surface treament of Antiglare, Hard coating (3H), net weight of 1.20Kgs (Typ.). As a AHVA, Normally Black, Transmissive LCM product, G185HAN01.1 can provides 500 cd/m² display brightness 1000:1 transimissive contrast ratio, 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 10/10 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 99% (sRGB). This product adopted 8S7P WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 50K hours, With LED Driver. G185HAN01.1 utilizes LVDS (2 ch, 8-bit) as it's signal inputting systerm, which connected by 30 pins Connector with power supply voltage of 5.0V (Typ.)
