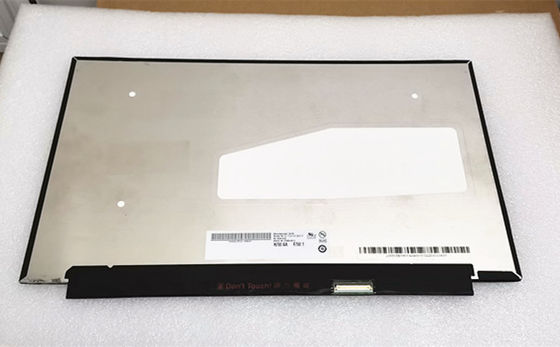

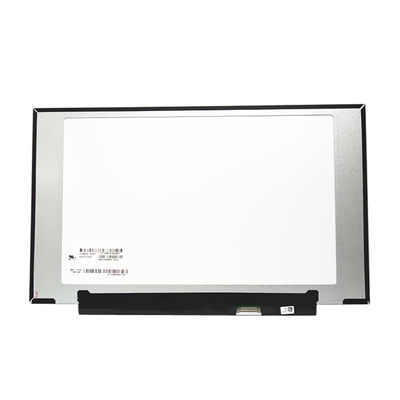

Product Details:
|
| MODEL NUMBER: | B156HAN07.0 | BRAND: | AUO |
|---|---|---|---|
| SIZE: | 15.6INCH | RESOLUTION: | 1920×1080RGB |
| BRIGHTNESS: | 300CD/M2 | TEMPERATURE RANGE: | Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C |
| High Light: | LVDS Industrial LCD Screen,6 Bit TFT LCD Panel |
||
| Basic Detail : | Manufacturer | Model Name | B156HAN07.0 | |
|---|---|---|---|---|
| Panel Type | a-Si TFT-LCD , LCM | Another Name | AUO70ED | |
| Panel Size | 15.6 inch | Designed For |
|
|
| Maximum Ratings : | OP Temperature | 0 ~ 50 °C | ST Temperature | -20 ~ 60 °C |
| Vibration Level | 1.5G (14.7 m/s²) | RoHS |
| Basic Information : | Luminance | 300 cd/m² (Typ.) | Contrast Ratio | 800 : 1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Good View at | Symmetry | Response Speed | 9 (Typ.)(Tr+Td); 7 (Typ.)(G to G) (ms) | |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) | Operating Mode | AHVA, Normally Black, Transmissive | |
| Color Performance : | Chromaticity | Wx:0.313; Wy:0.329 | Support Color | 16.7M (8-bit) |
| Color Temperature | 6485K | White Uniformity | 1.25/1.60 (Max.)(5/13 points) | |
| 1931 Color Gamlt : | NTSC Ratio | 72% | sRGB | 93% coverage |
| Adobe RGB | 72% coverage | DCI-P3 | 74% coverage | |
| Rec.2020 | 53% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
| Pixel Features : | Number of Pixel | 1920(RGB)×1080 [FHD] | Arrangement | RGB Vertical Stripe |
|---|---|---|---|---|
| Dot Pitch(W×H) | 0.05975×0.17925 mm | Pixel Pitch(W×H) | 0.17925×0.17925 mm [141PPI] | |
| Physical Size : | Active Viewing | 344.16(W)×193.59(H) mm | Overall Dim. | 359.5(W)×223.8(H) mm |
| Bezel Opening | - | Overall Depth | 3.05/3.2 (Typ./Max.) mm | |
| Outline Features : | Form Shape | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio(W:H) | 16:9 | Shape Style | Slim (PCBA Flat, T≤3.2mm) | |
| Fixation : | Face mounting holes (8 pcs) on up, down slugs | |||
| Other Detail : | Mass | 370g (Max.) | Surface | Antiglare |
| Refresh Rate : | 144Hz |
|---|---|
| Reverse Scan : | No |
| Power Consumption : | 7.8W (Typ.) |
| Signal Electrical : | Input Current | 1090mA (Max.) | Input Voltage | 3.3V (Typ.) | ||
|---|---|---|---|---|---|---|
| Consumption | 2.0/3.6W (Typ./Max.) | Signal Interface | eDP (4 Lanes), eDP1.4 | |||
| Interface Features : | Position | Physical Type | Connector | |||
| Signal Interface : | Brand | Model | Amount | Pin Pitch | Pin Amount | Pin Assignment |
| STM | MSAK24025P40 | 1 pcs | 0.5 mm | 40 pins | ||
| Lamp Features: | Lamp Shape | - | Lamp Type | WLED | Position | Edge light type |
|---|---|---|---|---|---|---|
| Exchange | - | Amount | - | Life | 15K(Min.) (Hours) | |
| Interface Features : | Position | - | Physical Type | Included in panel signal interface | ||
| Backlight Driver : | With LED Driver | |||||
| Driver Electrical : | Input Current | - | Input Voltage | 7.0/12.0/21.0V (Min./Typ./Max.) | ||
| Consumption | 5.8W (Max.) | |||||
whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 344.16(W)×193.59(H) mm, outline size of 359.5(W)×223.8(H)×3.2(D) mm, with surface treament of Antiglare, net weight of 370g (Max.), shape stype of Slim (PCBA Flat, T≤3.2mm). As a AHVA, Normally Black, Transmissive LCM product, B156HAN07.0 can provides 300 cd/m² display brightness 800:1 transimissive contrast ratio, 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 9 (Typ.)(Tr+Td), 7 (Typ.)(G to G) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 72% (NTSC). This product adopted WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 15K hours, With LED Driver. B156HAN07.0 utilizes eDP (4 Lanes) as it's signal inputting systerm, which connected by 40 pins Connector with power supply voltage of 3.3V (Typ.).
