Product Details:
|

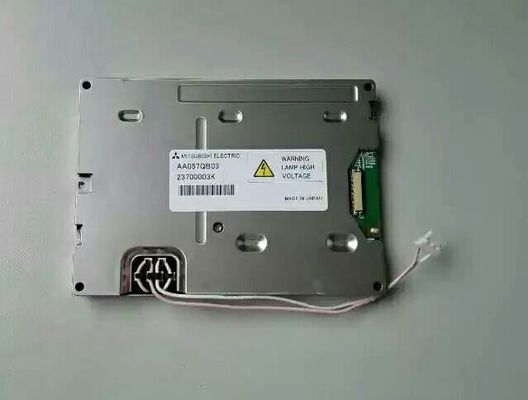

| MODEL NUMBER: | AA057QB03 | BRAND: | Mitsubishi |
|---|---|---|---|
| SIZE: | 5.7" | RESOLUTION: | 320(RGB)×240, QVGA, 70PPI |
| BRIGHTNESS: | 400 Cd/m² (Typ.) | TEMPERATURE RANGE: | Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C |
| High Light: | TFT LCD Display SVGA 119PPI,LVDS TFT LCD Module |
||
| Basic Information : | Brand |  |
Model | AA057QB03 |
|---|---|---|---|---|
| Type | LCM a-Si TFT-LCD | Used For |
|
|
| Screen Size | 5.7" | Alias | - | |
| Environment : | Storage Temp. | -30 ~~ 80 °C | Operating Temp. | -20 ~~ 70 °C |
| RoHS | |
Vibration | 1.0G (9.8 m/s²) |
| Pixel Features : | Resolution | 320(RGB)×240, QVGA | Dot Pitch(mm) | 0.120×0.360 (H×V) |
|---|---|---|---|---|
| Pixel Format | RGB Vertical Stripe | Pixel Pitch(mm) | 0.360×0.360 (H×V) [70PPI] | |
| Mechanical Size : | Active Area(mm) | 115.2(H) × 86.4(V) | Bezel Area(mm) | 119.8(H) × 91.0(V) |
| Outline Dim.(mm) | 144(H) × 104.8(V) | Depth(mm) | 13.0±0.5 | |
| Outline Features : | Form Style | Flat Rectangle | Outline Shape | |
| Aspect Ratio | 4:3 (H:V) | Orientation | Landscape type | |
| Mounting : | Rear mounting holes (4-Ф2.6) | |||
| Other Spec : | Weight | 220g (Typ.) | Treatment | Clear, Hard coating (3H) |
| Basic Information : | Luminance(cd/m²) | 400 (Typ.) | Contrast Ratio | 450:1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Viewing Angle | 60/60/60/40 (Typ.)(CR≥10) |
Display Mode | TN, Normally White, Transmissive | |
| Best View on | 12 o'clock | Response(ms) | 10/25 (Typ.)(Tr/Td) | |
| Color Performance : | White Coordinate | X:0.311; Y:0.318 | Display Colors | 262K (6-bit) |
| Color Temperature | 6699K | White Uniformity | 1.30 (Max.)(5 points)  |
|
| 1931 Color Gamlt : | NTSC Ratio | 51% | sRGB | 70% coverage |
| Adobe RGB | 53% coverage | DCI-P3 | 53% coverage | |
| Rec.2020 | 38% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
| Frame Rate : | 60Hz Reverse Scan :
| Yes (U/D, L/R) |
|---|
| Signal Electrical : | Voltage Supply | 3.3V (Typ.) | Current Supply | 160/195mA (Typ./Max.) | ||
|---|---|---|---|---|---|---|
| Signal Type : | CMOS (1 ch, 6-bit) | Signal Voltage | 0≤VIL≤0.3VCC; 0.7VCC≤VIH≤5.5V | |||
| Interface Features : | Position | - | Type | Connector | ||
| Interface Detail : | Brand | Model | Quantity | Pins | Pitch | Pin Configuration |
| Kyocera Elco | 08-6260-033-340-829+ | 1 pcs | 33 pins | 0.5 mm | DRGB-33P1C6B-020C | |
| Backlight Features: | Shape | - | Type | CCFL | Position | Edge light type |
|---|---|---|---|---|---|---|
| Replacement | - | Quantity | 1 pcs | Life Time | 50K(Min.) (Hours) | |
| Lamp Electrical : | Voltage Supply | 685V (Typ.) | Current Supply | 3.0/4.0/5.0mA (Min./Typ./Max.) | ||
| Frequency | 30/100KHz (Min./Max.) | Startup Voltage | 1035/1550/1680V (Min.)(Ta=+25/0/-20℃) | |||
| Interface Features : | Position | - | Type | Connector | ||
| Interface Detail : | Brand | Model | Quantity | Pins | Pitch | Pin Configuration |
| JST | BHR-03VS-1 | 1 pcs | 3 pins | 4.0 mm | BLL-3PINS-HNL | |
