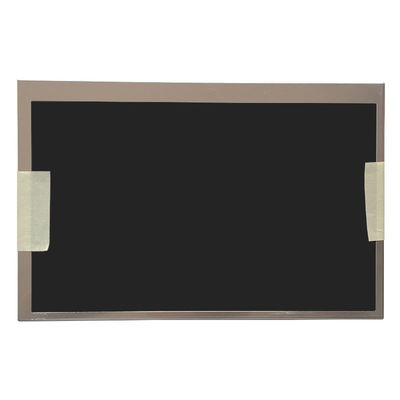

Product Details:
|
| MODEL NUMBER: | A080XTN01.4 | BRAND: | AUO |
|---|---|---|---|
| SIZE: | 8INCH | RESOLUTION: | 1024×768 RGB |
| BRIGHTNESS: | 250CD/M2 | TEMPERATURE RANGE: | Storage Temp.: -20 ~ 70 °C Operating Temp.: -10 ~ 60 °C |
| High Light: | 50% NTSC TFT LCD Panel,AUO LCD Display WLED LVDS |
||
| Basic Info : | Panel Brand | Panel Model | A080XTN01.4 | |
|---|---|---|---|---|
| Diagonal Size | 8.0" | Application | ||
| Panel Type | a-Si TFT-LCD , LCM | Model Alias | - | |
| Reliability : | Operating Temp. | -10 ~ 60 °C | Storage Temp. | -20 ~ 70 °C |
| Pixel Features : | Pixel Format | 1024(RGB)×768 [XGA] | Dot Pitch | 0.05275×0.15825 mm (H×V) |
|---|---|---|---|---|
| Configuration | RGB Vertical Stripe | Pixel Pitch | 0.15825×0.15825 mm (H×V) [160PPI] | |
| Mechanical Size : | Display Area | 162.048×121.536 mm (H×V) | Bezel Area | 164.65×124.14 mm (H×V) |
| Outline Dim. | 183×141 mm (H×V) | Outline Depth | 3.4 (Typ.) mm | |
| Outline Features : | Form Factor | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio | 4:3 (H:V) | Shape Style | ||
| Other Features : | Weight | 179g (Typ.) | Surface | Antiglare, Hard coating (3H) |
| Basic Information : | Brightness | 250 cd/m² (Typ.) | Contrast Ratio | 700:1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Viewing Angle | 70/70/60/65 (Typ.)(CR≥10) | Optical Mode | TN, Normally White, Transmissive | |
| Viewing Direction | - | Response Time | 3/6 (Typ.)(Tr/Td) (ms) | |
| Color Performance : | Chromaticity | Wx:0.308; Wy:0.327 | Color Numbers | 16.7M (8-bit) |
| Color Temperature | 6778K | White Uniformity | 1.33/1.43 (Typ./Max.)(9 points) | |
| 1931 Color Gamut : | NTSC Ratio | 50% | sRGB | 69% coverage |
| Adobe RGB | 52% coverage | DCI-P3 | 52% coverage | |
| Rec.2020 | 37% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
| Frame Frequency : | 60Hz |
|---|---|
| Reverse Scan : | Yes (U/D, L/R) |
| Back-light Features: | Lamp Shape | Array | Lamp Type | WLED | Life Time | 15K(Min.) (Hours) |
|---|---|---|---|---|---|---|
| Replacement | - | Amount | 3S9P | Position | Edge light type | |
| Lamp Electrical : | Voltage Input | 9.9V (Typ.) | Current Input | 180mA (Typ.) | ||
| Consumption | 1.78W (Typ.) | |||||
| Interface Features : | Type | Included in signal interface | Position | - | Lamp Driver | No |
| Signal Systerm : | LVDS (1 ch, 8-bit) | Logic Voltage | - | |||
|---|---|---|---|---|---|---|
| Signal Electrical : | Voltage Input | 3.3/11.5/20/-7V (Typ.)(VDD/AVDD/VGH/VGL) | Current Input | 46/29/0.6/0.8mA (Typ.)(IDD/AIDD/IGH/IGL) | ||
| Consumption | 605mW (Max.) | |||||

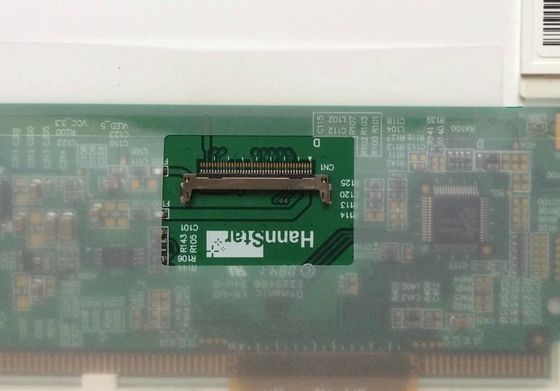

| Interface Features : | Type | FPC | Position | - | ||
| FPC Detail : | Brand | Model | Pin Pitch | Pins | Amount | Configuration |
| 0.5 mm | 40 pins | 1 pcs | ||||
whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 162.048(W)×121.536(H) mm, outline size of 183(W)×141(H) mm, viewing area size of 164.65(W)×124.14(H) mm, with surface treament of Antiglare, Hard coating (3H), net weight of 179g (Typ.). As a TN, Normally White, Transmissive LCM product, A080XTN01.4 can provides 250 cd/m² display brightness 700:1 transimissive contrast ratio, 70/70/60/65 (Typ.)(CR≥10) (L/R/U/D) viewing angle , and response time of 3/6 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 50% (NTSC). This product adopted 3S9P WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 15K hours, external backlight driver is additionally needed. A080XTN01.4 utilizes LVDS (1 ch, 8-bit) as it's signal inputting systerm, which connected by 40 pins FPC with power supply voltage of 3.3/11.5/20/-7V (Typ.)(VDD/AVDD/VGH/VGL). It's typical vertical frame rate (Fv) is 60Hz
