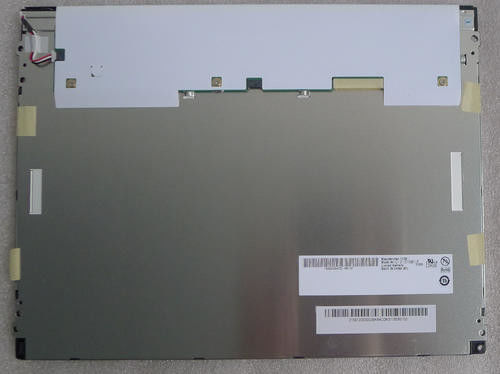

Product Details:
|
| MODEL NUMBER: | A080STN01.0 | BRAND: | AUO |
|---|---|---|---|
| SIZE: | 8INCH | RESOLUTION: | 800×600 RGB |
| BRIGHTNESS: | 250CD/M2 | TEMPERATURE RANGE: | Operating Temperature: -10 ~ 60 °C ; Storage Temperature: -30 ~ 70 °C |
| High Light: | 50% NTSC TFT LCD Panel,AUO LCD Display WLED LVDS |
||
| Basic Information : | Manufacturer | Panel Model 1 Compatible | Panel Type | Alias |
|---|---|---|---|---|
| A080STN01.0 | a-Si TFT-LCD , LCM | - | ||
| Environment : | RoHS State | Operating Temp. | Storage Temp. | Vibration Level |
| -10 ~ 60 °C | -30 ~ 70 °C |
| Basic Information : | Luminance (cd/m²) | Viewing Angle (L/R/U/D) | Response Time (ms) |
|---|---|---|---|
| 250 (Typ.) | 70/70/60/65 (Typ.)(CR≥10) | 12/18 (Typ.)(Tr/Td) | |
| Best View on | Display Mode | Contrast Ratio | |
| - | TN, Normally White, Transmissive | 500 : 1 (Typ.) (Transmissive) | |
| Dispaly Color : | Color Temperature | Display Colors | White Coordinate |
| 6638K | 16.2M (6-bit + FRC) | X:0.310; Y:0.330 | |
| 1931 Color Gamut : | NTSC Ratio | sRGB Coverage | Adobe RGB Coverage |
| 52% | 72% | 54% | |
| DCI-P3 Coverage | Rec.2020 Coverage | Remarks | |
| 54% | 39% | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) | |
| White Variation : | 1.33/1.43 (Typ./Max.)(9 points) | ||
| Panel Size : | 8.0" | |||
|---|---|---|---|---|
| Pixel Features : | Pixel Format | Pixel Configuration | Pixel Pitch (mm) | Dot Pitch (mm) |
| 800×600(RGB) [SVGA] | RGB Horizontal Stripe | 0.2025×0.2025 [125PPI] | 0.2025×0.0675 | |
| Mechanical Size : | Active Area (mm) | Bezel Area (mm) | Outline Dimension (mm) | Outline Depth (mm) |
| 162(H) × 121.5(V) | 163.8(H) × 123.3(V) | 183(H) × 141(V) | 4.9±0.3 mm | |
| Outline Features : | Form Factor | Orientation | Aspect Ratio | Shape Style |
| Flat Rectangle | Landscape type | 4:3 (H:V) | ||
| Other Detail : | Weight | Panel Cover | Treatment | |
| 225±10g | - | Antiglare, Hard coating (3H) | ||
| Reverse Scan : | Yes (U/D, L/R) |
|---|---|
| Vertical Frequency : | 60Hz |
| Power Consumption : | 1.769W (Typ.) |
| Time Controller (T-CON) : | Embedded T-CON |
| Lamp Features: | Type | Position | Quantity | Shape | Life(Hours) | Lamp Exchange |
|---|---|---|---|---|---|---|
| WLED | Edge light type | 3S6P | Array | 10K(Min.) | - | |
| WLED Electrical : | Voltage Supply | Current Supply | Power | |||
| 10.5V (Typ.) | 150mA (Typ.) | 1.58/1.68W (Typ./Max.) | ||||
| Interface Features : | Position | Backlight Driver | Type | |||
| - | No | Connector | ||||
| Interface Detail : | Brand | Model | Pin Pitch | Pin Amount | Quantity | Configuration |
| E&T | H201K-P02N-02B | 1.25 mm | 2 pins | 1 pcs | BLE-2PINS-AC | |
| Panel Driving Electrical : | Voltage Supply | Current Supply | Power | |||
|---|---|---|---|---|---|---|
| 3.3/5/-5/14/-14V (Typ.)(VDDIO/VDPA/VDNA/VGH/VGL) | 6.45/5.58/-5.68/3.96/-4.04mA (Typ.)(IDDIO/IDPA/IDNA/IGH/IGL) | 189mW (Typ.) | ||||
| Voltage for Display Signals : | 0≤VIL≤0.3VDDIO; 0.7VDDIO≤VIH≤VDDIO | |||||
| Interface Features : | Position | Signal | Type | |||
| - | TTL (1 ch, 8-bit) + SPI | FPC | ||||
| FPC Detail : | Brand | Model | Pin Pitch | Pin Amount | Quantity | Configuration |
| 0.5 mm | 60 pins | 1 pcs | ||||
whose pixels are arranged in RGB Horizontal Stripe. As for mechanical detail, it features active area of 162(W)×121.5(H) mm, outline size of 183(W)×141(H)×5.2(D) mm, viewing area size of 163.8(W)×123.3(H) mm, with surface treament of Antiglare, Hard coating (3H), net weight of 225±10g. As a TN, Normally White, Transmissive LCM product, A080STN01.0 can provides 250 cd/m² display brightness 500:1 transimissive contrast ratio, 70/70/60/65 (Typ.)(CR≥10) (L/R/U/D) viewing angle , and response time of 12/18 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit + FRC gray scale signal for each dot, thus presenting a palette of 16.2M colors, also with performance of color gamut 50% (NTSC). This product adopted 3S6P WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 10K hours, external backlight driver is additionally needed. A080STN01.0 utilizes TTL (1 ch, 8-bit) + SPI as it's signal inputting systerm, which connected by 60 pins FPC with power supply voltage of 3.3/5/-5/14/-14V (Typ.)(VDDIO/VDPA/VDNA/VGH/VGL).
