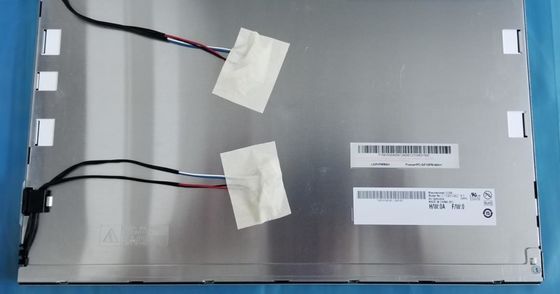

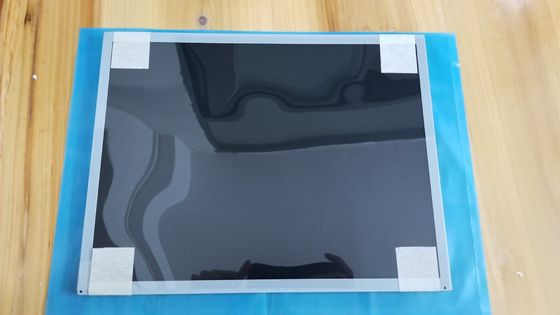

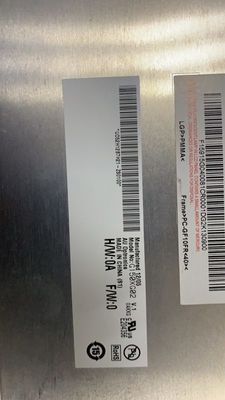

Product Details:
|
| MODEL NUMBER: | A150XN01 V0 | BRAND: | AUO |
|---|---|---|---|
| SIZE: | 15INCH | RESOLUTION: | 1024×768 RGB |
| BRIGHTNESS: | 220CD/M2 | Lamp Type: | WLED |
| Signal Interface: | LVDS | TEMPERATURE RANGE: | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 70 °C |
| High Light: | 50% NTSC TFT LCD Panel,AUO LCD Display WLED LVDS |
||
| Basic Information : | Manufacturer | Panel Model | Panel Type | Alias |
|---|---|---|---|---|
| A150XN01 V0 | a-Si TFT-LCD , LCM | A150XN01 V.0 | ||
| Environment : | RoHS State | Operating Temp. | Storage Temp. | Vibration Level |
| 0 ~ 50 °C | -20 ~ 70 °C | - | ||
| Used For : |
|
|||
| Basic Information : | Luminance (cd/m²) | Viewing Angle (L/R/U/D) | Response Time (ms) |
|---|---|---|---|
| 220 (Typ.) | 70/70/65/60 (Typ.)(CR≥10) | 8/4 (Typ.)(Tr/Td) | |
| Best View on | Display Mode | Contrast Ratio | |
| - | TN, Normally White, Transmissive | 700 : 1 (Typ.) (Transmissive) | |
| Dispaly Color : | Color Temperature | Display Colors | White Coordinate |
| 6638K | 16.2M (6-bit + FRC) | X:0.310; Y:0.330 | |
| 1931 Color Gamlt : | NTSC Ratio | sRGB Coverage | Adobe RGB Coverage |
| 69% | 94% | 72% | |
| DCI-P3 Coverage | Rec.2020 Coverage | Remarks | |
| 72% | 52% | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) | |
| White Variation : | 1.43 (Max.)(9 points) | ||
| Panel Size : | 15.0" | |||
|---|---|---|---|---|
| Pixel Features : | Pixel Format | Pixel Configuration | Pixel Pitch (mm) | Dot Pitch (mm) |
| 1024(RGB)×768 [XGA] | RGB Vertical Stripe | 0.297×0.297 [85PPI] | 0.099×0.297 | |
| Mechanical Size : | Active Area (mm) | Bezel Area (mm) | Outline Dimension (mm) | Outline Depth (mm) |
| 304.128(H) × 228.096(V) | - | 326.2(H) × 253.1(V) | 11.5 (Max.) mm | |
| Outline Features : | Form Factor | Orientation | Aspect Ratio | Shape Style |
| Flat Rectangle | Landscape type | 4:3 (H:V) | ||
| Mounting : | Side mounting holes (4 pcs) on left, right bezel | |||
| Other Detail : | Weight | Panel Cover | Treatment | |
| 970g (Typ.) | - | Antiglare, Hard coating (3H) | ||
| Reverse Scan : | Yes (180°) |
|---|---|
| Vertical Frequency : | 60Hz |
| Lamp Features: | Type | Position | Quantity | Shape | Life(Hours) | Lamp Exchange |
|---|---|---|---|---|---|---|
| WLED | Edge light type | - | Array | 10K(Typ.) | - | |
| WLED Electrical : | Voltage Supply | Current Supply | Power | |||
| 28.8/30.6V (Typ./Max.) | 210mA (Max.) | 6.0W (Typ.) | ||||
| Interface Features : | Position | Backlight Driver | Type | |||
| - | No | Connector | ||||
| Interface Detail : | Brand | Model | Pin Pitch | Pin Amount | Quantity | Configuration |
| JST | PHR-2 | 2.0 mm | 2 pins | 1 pcs | BLE-2PINS-AC | |
| Panel Driving Electrical : | Voltage Supply | Current Supply | Power | |||
|---|---|---|---|---|---|---|
| 3.3V (Typ.) | 600mA (Typ.) | 1.98W (Typ.) | ||||
| Interface Features : | Position | Signal | Type | |||
| - | LVDS (1 ch, 8-bit) | Connector | ||||
| Connector Detail : | Brand | Model | Pin Pitch | Pin Amount | Quantity | Configuration |
| HRS | DF14A-20P-1.25H(56) | 1.25 mm | 20 pins | 1 pcs | LVDS-20P1C8B-010G | |
