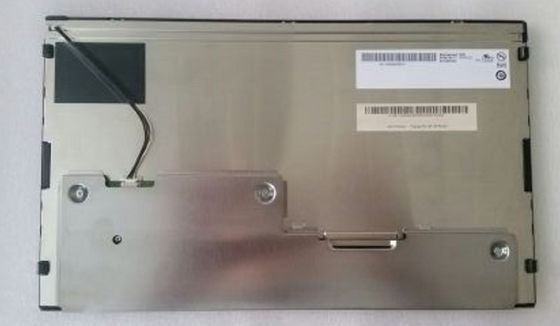

Product Details:
|
| MODEL NUMBER: | A116XW02 V0 | BRAND: | AUO |
|---|---|---|---|
| SIZE: | 11.6INCH | RESOLUTION: | 1366×768RGB |
| BRIGHTNESS: | 275CD/M2 | Lamp Type: | WLED |
| Signal Interface: | LVDS | TEMPERATURE RANGE: | Operating Temp.: 0 ~ 70 °C ; Storage Temp.: -20 ~ 70 °C |
| High Light: | 50% NTSC TFT LCD Panel,AUO LCD Display WLED LVDS |
||
| Basic Info : | Panel Brand | Panel Model | A116XW02 V0 | |
|---|---|---|---|---|
| Diagonal Size | 11.6" | Application |
|
|
| Panel Type | a-Si TFT-LCD , LCM | Model Alias | A116XW02 V.0 | |
| Reliability : | Operating Temp. | 0 ~ 70 °C | Storage Temp. | -20 ~ 70 °C |
| RoHS State | Vibration Rating | - |
| Pixel Features : | Pixel Format | 1366(RGB)×768 [WXGA] | Dot Pitch | 0.0625×0.1875 mm (H×V) |
|---|---|---|---|---|
| Configuration | RGB Vertical Stripe | Pixel Pitch | 0.1875×0.1875 mm (H×V) [135PPI] | |
| Mechanical Size : | Display Area | 256.125×144 mm (H×V) | Bezel Area | 260.0×148.0 mm (H×V) |
| Outline Dim. | 282.2×168 mm (H×V) | Outline Depth | 13.0 (Max.) mm | |
| Outline Features : | Form Factor | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio | 16:9 (H:V) | Shape Style | ||
| Holes & Brackets : | Side mounting holes (4-M3) on left, right bezel | |||
| Other Features : | Weight | 560g (Typ.) | Surface | Antiglare |
| Basic Information : | Brightness | 275 cd/m² (Typ.) | Contrast Ratio | 450:1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Viewing Angle | 60/60/35/55 (Typ.)(CR≥10) | Optical Mode | TN, Normally White, Transmissive | |
| Viewing Direction | 6 o'clock | Response Time | 4/8 (Typ.)(Tr/Td) (ms) | |
| Color Performance : | Chromaticity | Wx:0.330; Wy:0.320 | Color Numbers | 262K/16.2M (6-bit / 6-bit + FRC) |
| Color Temperature | 5653K | White Uniformity | 1.25 (Max.)(5 points)  |
|
| 1931 Color Gamlt : | NTSC Ratio | 77% | sRGB | 98% coverage |
| Adobe RGB | 77% coverage | DCI-P3 | 80% coverage | |
| Rec.2020 | 57% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
| Frame Frequency : | 60Hz |
|---|---|
| Reverse Scan : | No |
| Power Consumption : | 9.2W (Typ.) |
| Back-light Features: | Lamp Shape | - | Lamp Type | WLED | Life Time | 30K(Min.) (Hours) |
|---|---|---|---|---|---|---|
| Replacement | Replaceable | Amount | - | Position | Edge light type | |
| Interface Features : | Type | Included in panel signal interface | Position | - | Lamp Driver | With LED Driver |
| Driver Electrical : | Voltage Input | 10.8/12.0/13.5V (Min./Typ./Max.) | Current Input | - | ||
| Consumption | 8.4/11.5W (Typ./Max.) | |||||
| Signal Systerm : | LVDS (1 ch, 6/8-bit) | Logic Voltage | - | |||
|---|---|---|---|---|---|---|
| Signal Electrical : | Voltage Input | 3.3V (Typ.) | Current Input | 275mA (Max.) | ||
| Consumption | 0.8/0.9W (Typ./Max.) | |||||
| Interface Features : | Type | Connector | Position | - | ||
| Connector Detail : | Brand | Model | Pin Pitch | Pins | Amount | Configuration |
| JAE | FI-XPB30SL-HF10 | 1.0 mm | 30 pins | 1 pcs | LVDS-30P1C8B-099A | |

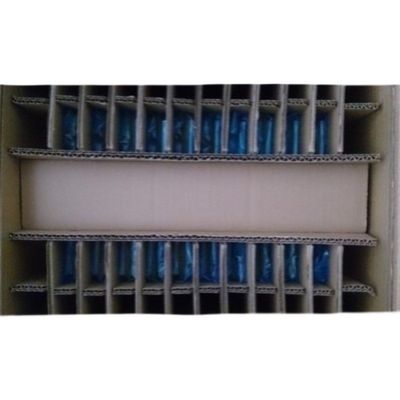

| Package Carton : | Amount | Net Weight | Carton Size (L×W×H) |
|---|---|---|---|
| 15 pcs / box | - | 520×340×250 mm |
