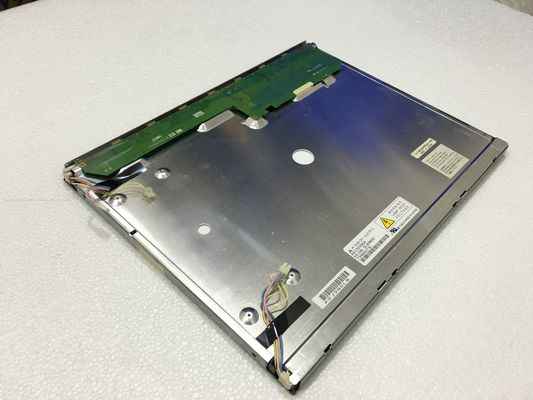

Product Details:
|
| MODEL NUMBER: | AA150XN04 | BRAND: | Mitsubishi |
|---|---|---|---|
| SIZE: | 15INCH | RESOLUTION: | 1024×768 RGB |
| BRIGHTNESS: | 400CD/M2 | TEMPERATURE RANGE: | Storage Temp.: -20 ~ 80 °C Operating Temp.: -20 ~ 70 °C |
| High Light: | TFT LCD Panel 122 PPI,Symmetry TFT LCD Panel |
||
| Basic Information : | Brand Name | Model Name  1 Compatible |
Type | Model Alias |
|---|---|---|---|---|
|
AA150XN04 | a-Si TFT-LCD , LCM | T-51863D150J-FW-A-AD | |
| Maximum Ratings : | RoHS | Operating Temperature | Storage Temperature | Vibration Level |
|
-20 ~ 70 °C | -20 ~ 80 °C | - |
| Screen Size : | 15.0" | |||
|---|---|---|---|---|
| Pixel Features : | Pixel Number | Pixel Format | Dot Pitch (H×V) | Pixel Pitch (H×V) |
| 1024(RGB)×768, XGA | RGB Vertical Stripe | 0.099×0.297 mm | 0.297×0.297 mm [85PPI] | |
| Mechanical Size : | Display Area (H×V) | Bezel Opening (H×V) | Overall Dimension (H×V) | Overall Depth |
| 304.128×228.096 mm | 308.1×232.1 mm | 326×255 mm | 15.9±0.5 mm | |
| Outline Features : | Form Shape | Aspect Ratio (H:V) | Orientation | Shape Style |
| Flat Rectangle | 4:3 | Landscape type | ||
| Other Spec : | Mass | Panel Cover | Surface Treatment | |
| 1.31Kgs (Typ.) | - | Hard coating (2H), Antireflection | ||
| Holes & Brackets : | Side mounting holes (4-M3) on left, right bezel | |||
| Basic Information : | Luminance | Work Mode | Contrast Ratio |
|---|---|---|---|
| 400 cd/m² (Typ.) | TN, Normally White, Transmissive | 350:1 (Typ.) (Transmissive) | |
| Good View at | Viewing Angle | Response Time | |
| 6 o'clock | 85/85/80/70 (Typ.)(CR≥10) |
6/19 (Typ.)(Tr/Td) (ms) | |
| Dispaly Color : | Color Temperature: | Support Color | Color Coordinate |
| 6485K | 262K/16.7M (6-bit / 6-bit + Hi-FRC) | X:0.313; Y:0.329 | |
| 1931 Color Gamlt : | NTSC Ratio | sRGB Coverage | Adobe RGB Coverage |
| 52% | 72% | 54% | |
| DCI-P3 Coverage | Rec.2020 Coverage | Remarks | |
| 54% | 39% | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) | |
| White Uniformity : | 1.30 (Max.)(5 points) |
||
| Refresh Rate : | 60Hz Reverse Scan :
| Yes (180°) |
|---|
| Back-light Features: | Type | Position | Life(Hours) | Amount |
Shape | Replacement |
|---|---|---|---|---|---|---|
| CCFL | Edge light type (Top and Bottom) | 50K(Min.) | 4 pcs | Straight | Replaceable (AA-L5902174G01(top), AA-L5902175G01(bottom)) | |
| CCFL Electrical : | Input Voltage | Input Current | Power Consumption |
|||
| 620V (Typ.) | 3.5/6.5/8.0mA (Min./Typ./Max.) | |||||
| Operating Frequency | Startup Voltage | |||||
| 40/70KHz (Min./Max.) | 1300/1500/1650V (Min.)(Ta=+25/0/-20℃) | |||||
| Interface Features : | CCFL Driver State | Physical Type | Interface Position | |||
| No | Connector | |
||||
| Interface Detail | Brand Name | Model Name | Amount | Pins | Pin Pitch | Pin Configuration |
| JST | BHSR-02VS-1 | 2 pcs | 2 pins | 3.5 mm | BLL-2PINS-HH | |
| JST | BHR-02VS-1 | 2 pcs | 2 pins | 4.0 mm | BLL-2PINS-LL | |
| Signal Electrical : | Input Voltage | Input Current | Power Consumption | |||
|---|---|---|---|---|---|---|
| 3.3V (Typ.) | 410/700mA (Typ./Max.) | - | ||||
| Interface Features : | Signal Type | Physical Type | Interface Position | |||
| LVDS (1 ch, 6/8-bit) | Connector | |
||||
| Interface Detail : | Brand Name | Model Name | Amount | Pins | Pin Pitch | Pin Configuration |
| HRS | DF14H-20P-1.25H | 1 pcs | 20 pins | 1.25 mm | LVDS-20P1C8B-010H | |
