AA121SL03 Mitsubishi 12.1INCH 800×600 RGB 350CD/M2 CCFL LVDS Operating Temperature: -20 ~ 70 °C INDUSTRIAL LCD DISPLAY

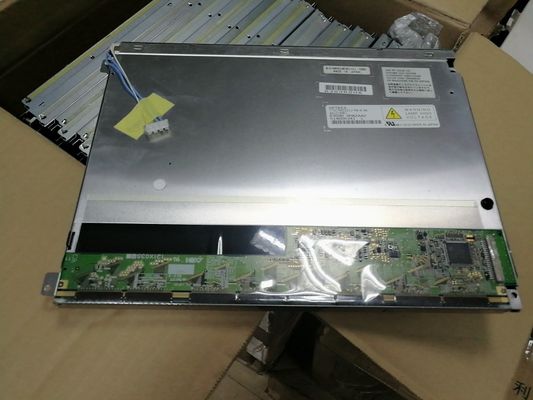

Large Image : AA121SL03 Mitsubishi 12.1INCH 800×600 RGB 350CD/M2 CCFL LVDS Operating Temperature: -20 ~ 70 °C INDUSTRIAL LCD DISPLAY

Product Details:

Place of Origin:	JAPAN
Brand Name:	Mitsubishi
Certification:	ISO9001
Model Number:	AA121SL03

Payment & Shipping Terms:

Minimum Order Quantity:	1PCS
Price:	USD75
Packaging Details:	STANDARD PACKING
Delivery Time:	1-2 DAYS
Payment Terms:	TT/PAYPAL/WESTERN UNION/ESCROW
Supply Ability:	200PCS

Contact Now

AA121SL03 Mitsubishi 12.1INCH 800×600 RGB 350CD/M2 CCFL LVDS Operating Temperature: -20 ~ 70 °C INDUSTRIAL LCD DISPLAY

Description

MODEL NUMBER:	AA121SL03	BRAND:	Mitsubishi
SIZE:	12.1INCH	RESOLUTION:	800×600 RGB
BRIGHTNESS:	350CD/M2	TEMPERATURE RANGE:	Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -20 ~ 80 °C
High Light:	TFT LCD Panel 122 PPI , Symmetry TFT LCD Panel

Mitsubishi AA121SL03 Application Details

Basic Info :

Panel Brand

Panel Model

AA121SL03

1 Compatible

Diagonal Size

12.1"

Application

Panel Type

a-Si TFT-LCD , LCM

Model Alias

T-51866D121J-FW-A-AA

Reliability :

Operating Temp.

-20 ~ 70 °C

Storage Temp.

-20 ~ 80 °C

RoHS State

Vibration Rating

1.0G (9.8 m/s²)

Mitsubishi AA121SL03 Mechanical Details

Pixel Features :

Pixel Format

800(RGB)×600, SVGA

Dot Pitch

0.1025×0.3075 mm (H×V)

Configuration

RGB Vertical Stripe

Pixel Pitch

0.3075×0.3075 mm (H×V) [82PPI]

Mechanical Size :

Display Area

246×184.5 mm (H×V)

Outline Dim.

249.0×187.5 mm (H×V)

Outline Dim.

280×210 mm (H×V)

Outline Depth

12.0 (Typ.) mm

Outline Features :

Form Factor

Flat Rectangle

Orientation

Landscape type

Aspect Ratio

4:3 (H:V)

Shape Style

Holes & Brackets :

Face mounting holes (4-Φ3.5) on left bezel, right slugs

Other Features :

Weight

720g (Typ.)

Surface

Antiglare, Hard coating (3H)

Mitsubishi AA121SL03 Optical Details

Basic Information :

Brightness

350 cd/m² (Typ.)

Contrast Ratio

500:1 (Typ.) (Transmissive)

Viewing Angle

65/65/45/75 (Typ.)(CR≥10)

Optical Mode

TN, Normally White, Transmissive

Viewing Direction

6 o'clock

Response Time

10/30 (Typ.)(Tr/Td) ms

Color Performance :

Chromaticity

Wx:0.313; Wy:0.329

Color Numbers

262K/16.7M (6-bit / 6-bit + Hi-FRC)

Color Temperature

6485K

Uniformity

1.30 (Max.)(5 points)

1931 Color Gamlt :

NTSC Ratio

40%

sRGB

56% coverage

Adobe RGB

42% coverage

DCI-P3

42% coverage

Rec.2020

30% coverage

Remarks

sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)

Mitsubishi AA121SL03 Electronics Details

Frame Frequency :

60Hz

Reverse Scan :

Yes (180°)

Mitsubishi AA121SL03 Backlight Details

Back-light Features :

Lamp Type

CCFL

Amount

2 pcs

Life Time

50K(Min.) Hours

Replacement

Replaceable

Lamp Shape

Straight

Position

Edge light type (Top side)

Lamp Electrical :

Voltage Input

540V (Typ.)

Current Input

3.0/6.0/6.5mA (Min./Typ./Max.)

Frequency

30/60KHz (Min./Max.)

Kick-off Voltage

1000/1200/1290V (Min.)(Ta=+25/0/-20℃)

Interface Features :

Type

Connector

Position

Lamp Driver

Interface Detail :

Brand

Model

Pin Pitch

Pins

Amount

Configuration

JST

BHR-04VS-1

4.0 mm

4 pins

1 pcs

BLL-4PINS-HHNL

Mitsubishi AA121SL03 Interface Details

Signal Systerm :

LVDS (1 ch, 6/8-bit)

Logic Voltage

Signal Electrical :

Voltage Input

3.3V (Typ.)

Current Input

300/450mA (Typ./Max.)

Interface Features :

Type

Connector

Position

Connector Detail :

Brand

Model

Pin Pitch

Pins

Amount

Configuration

JAE

FI-SEB20P-HF

1.25 mm

20 pins

1 pcs

LVDS-20P1C8B-010H

AA121SL03 supports display 800(RGB)×600 (SVGA) with aspect ratio of 4:3 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 246(W)×184.5(H) mm, outline size of 280(W)×210(H)×12.5(D) mm, viewing area size of 249.0(W)×187.5(H) mm, with surface treament of Antiglare, Hard coating (3H), net weight of 720g (Typ.). As a TN, Normally White, Transmissive LCM product, AA121SL03 can provides 350 cd/m² display brightness 500:1 transimissive contrast ratio, 65/65/45/75 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on 6 o'clock , and response time of 10/30 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit / 6-bit + Hi-FRC gray scale signal for each dot, thus presenting a palette of 262K/16.7M colors, also with performance of color gamut 40% (NTSC). This product adopted 2 pcs CCFL as it's backlight systerm which was placed as Edge light type (Top side) and have a working life time of 50K hours, external backlight driver is additionally needed. AA121SL03 utilizes LVDS (1 ch, 6/8-bit) as it's signal inputting systerm, which connected by 20 pins Connector with power supply voltage of 3.3V (Typ.).
