AA050AA11 Mitsubishi 5INCH 640×640 RGB　1200CD/M2 WLED TTL Operating Temperature: -30 ~ 80 °C INDUSTRIAL LCD DISPLAY

AA050AA11 Mitsubishi 5INCH 640×640 RGB　1200CD/M2 WLED TTL Operating Temperature: -30 ~ 80 °C INDUSTRIAL LCD DISPLAY
AA050AA11 Mitsubishi 5INCH 640×640 RGB　1200CD/M2 WLED TTL Operating Temperature: -30 ~ 80 °C INDUSTRIAL LCD DISPLAY AA050AA11 Mitsubishi 5INCH 640×640 RGB　1200CD/M2 WLED TTL Operating Temperature: -30 ~ 80 °C INDUSTRIAL LCD DISPLAY AA050AA11 Mitsubishi 5INCH 640×640 RGB　1200CD/M2 WLED TTL Operating Temperature: -30 ~ 80 °C INDUSTRIAL LCD DISPLAY

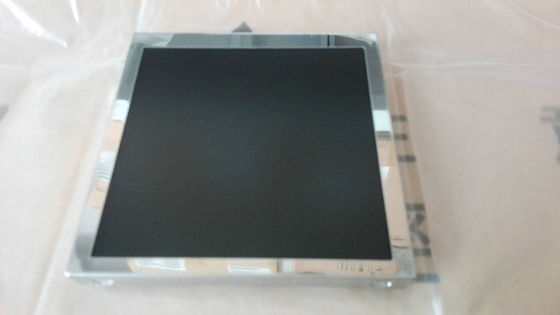

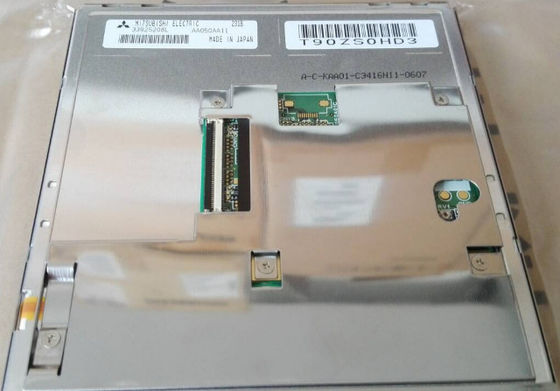

Large Image :  AA050AA11 Mitsubishi 5INCH 640×640 RGB　1200CD/M2 WLED TTL Operating Temperature: -30 ~ 80 °C INDUSTRIAL LCD DISPLAY

Product Details:
Place of Origin: JAPAN
Brand Name: Mitsubishi
Certification: ISO9001
Model Number: AA050AA11
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Price: USD120
Packaging Details: STANDARD PACKING
Delivery Time: 1-2DAYS
Payment Terms: TT/PAYPAL/ESCROW/WESTERN UNION
Supply Ability: 100PCS
Contact Now

AA050AA11 Mitsubishi 5INCH 640×640 RGB　1200CD/M2 WLED TTL Operating Temperature: -30 ~ 80 °C INDUSTRIAL LCD DISPLAY

Description
MODEL NUMBER: AA050AA11 BRAND: Mitsubishi
SIZE: 5INCH RESOLUTION: 640×640 RGB
BRIGHTNESS: 1200CD/M2 TEMPERATURE RANGE: Operating Temperature: -30 ~ 80 °C ; Storage Temperature: -30 ~ 80 °C
Lamp Type: WLED Signal Interface: TTL
High Light:

QVGA 106PPI Lcd Display Panels

,

TFT LCD Panel LVDS

Mitsubishi AA050AA11 Application Details

Basic Detail :
Manufacturer
AA050AA11 Mitsubishi 5INCH 640×640 RGB　1200CD/M2 WLED TTL Operating Temperature: -30 ~ 80 °C INDUSTRIAL LCD DISPLAY 0
Model Name
AA050AA11
Panel Type
a-Si TFT-LCD , LCM
Another Name
-
Panel Size
5.0 inch
Designed For
  • AA050AA11 Mitsubishi 5INCH 640×640 RGB　1200CD/M2 WLED TTL Operating Temperature: -30 ~ 80 °C INDUSTRIAL LCD DISPLAY 1
  • AA050AA11 Mitsubishi 5INCH 640×640 RGB　1200CD/M2 WLED TTL Operating Temperature: -30 ~ 80 °C INDUSTRIAL LCD DISPLAY 2
Maximum Ratings :
OP Temperature
-30 ~ 80 °C
ST Temperature
-30 ~ 80 °C
RoHS
AA050AA11 Mitsubishi 5INCH 640×640 RGB　1200CD/M2 WLED TTL Operating Temperature: -30 ~ 80 °C INDUSTRIAL LCD DISPLAY 3
Vibration Level
1.0G (9.8 m/s²)


Mitsubishi AA050AA11 Optical Details

Basic Information :
Luminance
1200 cd/m² (Typ.)
Contrast Ratio
700:1 (Typ.) (Transmissive)
Good View at
6 o'clock
Response Speed
4/12 (Typ.)(Tr/Td) ms
Viewing Angle
80/80/80/70 (Typ.)(CR≥10)
Operating Mode
TN, Normally White, Transmissive
Color Performance :
Chromaticity
Wx:0.313; Wy:0.329
Support Color
262K/16.7M (6-bit / 6-bit + Hi-FRC)
Color Temperature
6485K
White Variation
1.30 (Max.)(5 points) AA050AA11 Mitsubishi 5INCH 640×640 RGB　1200CD/M2 WLED TTL Operating Temperature: -30 ~ 80 °C INDUSTRIAL LCD DISPLAY 4
1931 Color Gamlt :
NTSC Ratio
38%
sRGB
53% coverage
Adobe RGB
40% coverage
DCI-P3
39% coverage
Rec.2020
28% coverage
Remarks
sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)
Dispaly Performance :
Outdoor Visibility
Sunlight Readable
Transmissivity
-


Mitsubishi AA050AA11 Mechanical Details

Pixel Features :
Number of Pixel
640(RGB)×640
Arrangement
RGB Vertical Stripe
Dot Pitch(W×H)
0.0465×0.1395 mm
Pixel Pitch(W×H)
0.1395×0.1395 mm [182PPI]
Physical Size :
Active Viewing
89.3(W)×89.3(H) mm
Overall Dim.
103.8(W)×105.8(H) mm
Bezel Opening
91.28(W)×91.28(H) mm
Overall Depth
11.9±0.5 mm
Outline Features :
Form Shape
Flat Rectangle
Orientation
Landscape type
Aspect Ratio(W:H)
1:1
Shape Style

Fixation :
Side mounting holes (4-M2) on left, right bezel
Other Detail :
Mass
155g (Typ.)
Surface
Antiglare, Hard coating (3H)


Mitsubishi AA050AA11 Electronics Details

Refresh Rate :
60Hz
Reverse Scan :
Yes (180°)
Total Consumption :
2.5W (Typ.)


Mitsubishi AA050AA11 Interface Details

Signal Electrical :
Input Current
330/350mA (Typ./Max.)
Input Voltage
3.3V (Typ.)
Consumption
-
Signal Interface
CMOS (1 ch, 6/8-bit)
Logic Voltage :
0V≤VIL≤0.8V; 2.0V≤VIH≤5.5V
Interface Features :
Position
-
Physical Type
Connector
Interface Detail :
Brand
Model
Pin Pitch
Pins
Amount
Pin Assignment AA050AA11 Mitsubishi 5INCH 640×640 RGB　1200CD/M2 WLED TTL Operating Temperature: -30 ~ 80 °C INDUSTRIAL LCD DISPLAY 6
molex
51296-4594
0.5 mm
45 pins
1 pcs










Mitsubishi AA050AA11 Lightting Details

Lamp Features :
Lamp Type
WLED
Amount
2 strings
Position
Edge light type
Exchange
-
Lamp Shape
2 strings
Lamp Life
100K(Typ.) (Hours)
Lamp Electrical :
Input Voltage
16/18V (Typ./Max.)
Input Current
90/100mA (Typ./Max.)
Interface Features :
Position
-
Physical Type
Included in panel signal interface
Backlight Driver :
No

AA050AA11 supports display 640(RGB)×640 with aspect ratio of 1:1 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 89.3(W)×89.3(H) mm, outline size of 103.8(W)×105.8(H)×12.4(D) mm, viewing area size of 91.28(W)×91.28(H) mm, with surface treament of Antiglare, Hard coating (3H), net weight of 155g (Typ.). As a TN, Normally White, Transmissive LCM product, AA050AA11 can provides 1200 cd/m² display brightness 700:1 transimissive contrast ratio, 80/80/80/70 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on 6 o'clock , and response time of 4/12 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit / 6-bit + Hi-FRC gray scale signal for each dot, thus presenting a palette of 262K/16.7M colors, also with performance of color gamut 40% (NTSC). This product adopted 2 strings WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 100K hours, external backlight driver is additionally needed. AA050AA11 utilizes CMOS (1 ch, 6/8-bit) as it's signal inputting systerm, which connected by 45 pins Connector with power supply voltage of 3.3V (Typ.).
