AA080MB11 Mitsubishi 8INCH 800×480 RGB 1500CD/M2 WLED LVDS SStorage Temp.: -30 ~ 80 °C INDUSTRIAL LCD DISPLAY

AA080MB11 Mitsubishi 8INCH 800×480 RGB 1500CD/M2 WLED LVDS SStorage Temp.: -30 ~ 80 °C INDUSTRIAL LCD DISPLAY
AA080MB11 Mitsubishi 8INCH 800×480 RGB 1500CD/M2 WLED LVDS SStorage Temp.: -30 ~ 80 °C INDUSTRIAL LCD DISPLAY AA080MB11 Mitsubishi 8INCH 800×480 RGB 1500CD/M2 WLED LVDS SStorage Temp.: -30 ~ 80 °C INDUSTRIAL LCD DISPLAY AA080MB11 Mitsubishi 8INCH 800×480 RGB 1500CD/M2 WLED LVDS SStorage Temp.: -30 ~ 80 °C INDUSTRIAL LCD DISPLAY AA080MB11 Mitsubishi 8INCH 800×480 RGB 1500CD/M2 WLED LVDS SStorage Temp.: -30 ~ 80 °C INDUSTRIAL LCD DISPLAY

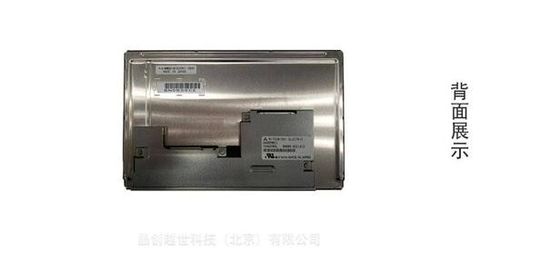

Large Image :  AA080MB11 Mitsubishi 8INCH 800×480 RGB 1500CD/M2 WLED LVDS SStorage Temp.: -30 ~ 80 °C INDUSTRIAL LCD DISPLAY

Product Details:
Place of Origin: JAPAN
Brand Name: Mitsubishi
Certification: ISO9001
Model Number: AA080MB11
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Price: USD190
Packaging Details: STANDARD PACKING
Delivery Time: 1-2 DAYS
Payment Terms: TT/PAYPAL/WESTERN UNION/ESCROW
Supply Ability: 120PCS
Contact Now

AA080MB11 Mitsubishi 8INCH 800×480 RGB 1500CD/M2 WLED LVDS SStorage Temp.: -30 ~ 80 °C INDUSTRIAL LCD DISPLAY

Description
MODEL NUMBER: AA080MB11 BRAND: Mitsubishi
RESOLUTION: 800×480 RGB BRIGHTNESS: 1500CD/M2
TEMPERATURE RANGE: Storage Temp.: -30 ~ 80 °C Operating Temp.: -30 ~ 80 °C SIZE: 8INCH
Highlight:

SVGA 82PPI TFT LCD Panel

,

WLED LVDS Industrial Lcd Panel



Mitsubishi AA080MB11 Summary

Mitsubishi Electric Corporation (hereafter called Mitsubishi) AA080MB11 is a 8.0 inch diagonal a-Si TFT-LCD display panel product, with an integral WLED backlight system, without backlight driver, without touch screen. It features an operating temperature range of -30 ~ 80°C , a storage temperature range of -30 ~ 80°C , and the maximal vibration level of 1.0G (9.8 m/s²). It's general features are summarized by Panelook in the following: Wide Temperature, Ultra High Brightness, WLED Backlight, Life ≥ 100K hours, 180° Reverse, 6/8 bit, Matte , NCM. Based on its features, Panelook recommend that this model be applied to Industrial, Outdoor High Brightness etc. According to the information stored in Panelook this model mass production on Q4, 2012 and last shippment on Q2, 2022, Now this model is discontinued. There are 3 items stock and 0 suppliers of this model on Panelook. We inputted this model's specification on Aug 9 2013 for the first time, and the latest update on Apr 9 2022. If you want to embed AA080MB11 LCM in your future product, Panelook strongly recommend that you should contact with Mitsubishi or it's distributor to learn lateast production and specification detail. The AA080MB11 production status marked on Panelook.com is for reference only and should not be used as the basis for the user's decision making. All specification details are inputted by Panelook engineers according to datasheet, but we cannot guarantee the spec listed is right.
AA080MB11 Mitsubishi 8INCH 800×480 RGB 1500CD/M2 WLED LVDS SStorage Temp.: -30 ~ 80 °C INDUSTRIAL LCD DISPLAY 0
Manufacturer
AA080MB11 Mitsubishi 8INCH 800×480 RGB 1500CD/M2 WLED LVDS SStorage Temp.: -30 ~ 80 °C INDUSTRIAL LCD DISPLAY 1
Model Name
AA080MB11
Panel Type
a-Si TFT-LCD , LCM
Another Name
-
Panel Size
8.0 inch
Designed For
  • AA080MB11 Mitsubishi 8INCH 800×480 RGB 1500CD/M2 WLED LVDS SStorage Temp.: -30 ~ 80 °C INDUSTRIAL LCD DISPLAY 2
  • AA080MB11 Mitsubishi 8INCH 800×480 RGB 1500CD/M2 WLED LVDS SStorage Temp.: -30 ~ 80 °C INDUSTRIAL LCD DISPLAY 3
Maximum Ratings :
OP Temperature
-30 ~ 80 °C
ST Temperature
-30 ~ 80 °C
RoHS
AA080MB11 Mitsubishi 8INCH 800×480 RGB 1500CD/M2 WLED LVDS SStorage Temp.: -30 ~ 80 °C INDUSTRIAL LCD DISPLAY 4
Vibration Level
1.0G (9.8 m/s²)


Mitsubishi AA080MB11 Optical Details

Basic Information :
Luminance
1500 cd/m² (Typ.)
Contrast Ratio
700:1 (Typ.) (Transmissive)
Good View at
-
Response Speed
4/12 (Typ.)(Tr/Td) ms
Viewing Angle
80/80/80/80 (Typ.)(CR≥10)
Operating Mode
TN, Normally White, Transmissive
Color Performance :
Chromaticity
Wx:0.313; Wy:0.329
Support Color
262K/16.7M (6-bit / 8-bit)
Color Temperature
6485K
White Variation
1.30 (Max.)(5 points) AA080MB11 Mitsubishi 8INCH 800×480 RGB 1500CD/M2 WLED LVDS SStorage Temp.: -30 ~ 80 °C INDUSTRIAL LCD DISPLAY 5
1931 Color Gamlt :
NTSC Ratio
52%
sRGB
72% coverage
Adobe RGB
54% coverage
DCI-P3
54% coverage
Rec.2020
39% coverage
Remarks
sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)
Dispaly Performance :
Outdoor Visibility
Sunlight Readable
Transmissivity












Mitsubishi AA080MB11 Mechanical Details

Pixel Features :
Number of Pixel
800(RGB)×480, WVGA
Arrangement
RGB Vertical Stripe
Dot Pitch(W×H)
0.0725×0.2175 mm
Pixel Pitch(W×H)
0.2175×0.2175 mm [116PPI]
Physical Size :
Active Viewing
174(W)×104.4(H) mm
Overall Dim.
192(W)×122(H) mm
Bezel Opening
178.0(W)×108.4(H) mm
Overall Depth
7.5/8.9 (Typ./Max.) mm
Outline Features :
Form Shape
Flat Rectangle
Orientation
Landscape type
Aspect Ratio(W:H)
15:9
Shape Style

Fixation :
Side mounting holes (4-M2) on left, right bezel
Other Detail :
Mass
250g (Typ.)
Surface
Antiglare, Hard coating (3H)


Mitsubishi AA080MB11 Electronics Details

Refresh Rate :
60Hz
Reverse Scan :
Yes (180°)
Total Consumption :
5.7W (Typ.)

OverviewSpecsStocksSuppliersTouch PanelsOEM/ODMRFQsDriver Kits

Mitsubishi AA080MB11 Application Details

Basic Detail :
Manufacturer
AA080MB11 Mitsubishi 8INCH 800×480 RGB 1500CD/M2 WLED LVDS SStorage Temp.: -30 ~ 80 °C INDUSTRIAL LCD DISPLAY 1
Model Name
AA080MB11
Panel Type
a-Si TFT-LCD , LCM
Another Name
-
Panel Size
8.0 inch
Designed For
  • AA080MB11 Mitsubishi 8INCH 800×480 RGB 1500CD/M2 WLED LVDS SStorage Temp.: -30 ~ 80 °C INDUSTRIAL LCD DISPLAY 2
  • AA080MB11 Mitsubishi 8INCH 800×480 RGB 1500CD/M2 WLED LVDS SStorage Temp.: -30 ~ 80 °C INDUSTRIAL LCD DISPLAY 3
Maximum Ratings :
OP Temperature
-30 ~ 80 °C
ST Temperature
-30 ~ 80 °C
RoHS
AA080MB11 Mitsubishi 8INCH 800×480 RGB 1500CD/M2 WLED LVDS SStorage Temp.: -30 ~ 80 °C INDUSTRIAL LCD DISPLAY 4
Vibration Level
1.0G (9.8 m/s²)
Features :
  • Wide Temperature
  • Ultra High Brightness
  • WLED Backlight
  • Life ≥ 100K hours
  • 180° Reverse
  • 6/8 bit
  • Matte
Remarks :
NCM

Mitsubishi AA080MB11 Optical Details

Basic Information :
Luminance
1500 cd/m² (Typ.)
Contrast Ratio
700:1 (Typ.) (Transmissive)
Good View at
-
Response Speed
4/12 (Typ.)(Tr/Td) ms
Viewing Angle
80/80/80/80 (Typ.)(CR≥10)
Operating Mode
TN, Normally White, Transmissive
Color Performance :
Chromaticity
Wx:0.313; Wy:0.329
Support Color
262K/16.7M (6-bit / 8-bit)
Color Temperature
6485K
White Variation
1.30 (Max.)(5 points) AA080MB11 Mitsubishi 8INCH 800×480 RGB 1500CD/M2 WLED LVDS SStorage Temp.: -30 ~ 80 °C INDUSTRIAL LCD DISPLAY 5
1931 Color Gamlt :
NTSC Ratio
52%
sRGB
72% coverage
Adobe RGB
54% coverage
DCI-P3
54% coverage
Rec.2020
39% coverage
Remarks
sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)
Dispaly Performance :
Outdoor Visibility
Sunlight Readable
Transmissivity
-
  • Disclaimer : Inputted by panelook engineers according to datasheet, but we cannot guarantee the spec listed is entirely correct.
  • AA080MB11 Mitsubishi 8INCH 800×480 RGB 1500CD/M2 WLED LVDS SStorage Temp.: -30 ~ 80 °C INDUSTRIAL LCD DISPLAY 18 Back to Top

Mitsubishi AA080MB11 Mechanical Details

Pixel Features :
Number of Pixel
800(RGB)×480, WVGA
Arrangement
RGB Vertical Stripe
Dot Pitch(W×H)
0.0725×0.2175 mm
Pixel Pitch(W×H)
0.2175×0.2175 mm [116PPI]
Physical Size :
Active Viewing
174(W)×104.4(H) mm
Overall Dim.
192(W)×122(H) mm
Bezel Opening
178.0(W)×108.4(H) mm
Overall Depth
7.5/8.9 (Typ./Max.) mm
Outline Features :
Form Shape
Flat Rectangle
Orientation
Landscape type
Aspect Ratio(W:H)
15:9
Shape Style

Fixation :
Side mounting holes (4-M2) on left, right bezel
Other Detail :
Mass
250g (Typ.)
Surface
Antiglare, Hard coating (3H)
  • Disclaimer : Inputted by panelook engineers according to datasheet, but we cannot guarantee the spec listed is entirely correct.
  • AA080MB11 Mitsubishi 8INCH 800×480 RGB 1500CD/M2 WLED LVDS SStorage Temp.: -30 ~ 80 °C INDUSTRIAL LCD DISPLAY 18 Back to Top

Mitsubishi AA080MB11 Electronics Details

Refresh Rate :
60Hz
Reverse Scan :
Yes (180°)
Total Consumption :
5.7W (Typ.)

Mitsubishi AA080MB11 Interface Details

Signal Electrical :
Input Current
250/400mA (Typ./Max.)
Input Voltage
3.3V (Typ.)
Consumption
-
Signal Interface
LVDS (1 ch, 6/8-bit)
Interface Features :
Position
-
Physical Type
Connector
Interface Detail :


Brand
Model
Pin Pitch
Pins
Amount
Pin Assignment AA080MB11 Mitsubishi 8INCH 800×480 RGB 1500CD/M2 WLED LVDS SStorage Temp.: -30 ~ 80 °C INDUSTRIAL LCD DISPLAY 36
JAE
FI-SEB20P-HFE
1.25 mm
20 pins
1 pcs
LVDS-20P1C8B-010H




Mitsubishi AA080MB11 Lightting Details

Lamp Features :
Lamp Type
WLED
Amount
2 strings
Position
Edge light type
Exchange
-
Lamp Shape
2 strings
Lamp Life
100K(Typ.) (Hours)
Lamp Electrical :
Input Voltage
24.4/28.2V (Typ./Max.)
Input Current
100/110mA (Typ./Max.)
Consumption
4.88W (Typ.) AA080MB11 Mitsubishi 8INCH 800×480 RGB 1500CD/M2 WLED LVDS SStorage Temp.: -30 ~ 80 °C INDUSTRIAL LCD DISPLAY 37
Interface Features :
Position
-
Physical Type
Connector
Interface Detail :
Brand
Model
Pin Pitch
Pins
Amount
Pin Assignment AA080MB11 Mitsubishi 8INCH 800×480 RGB 1500CD/M2 WLED LVDS SStorage Temp.: -30 ~ 80 °C INDUSTRIAL LCD DISPLAY 38
JST
SM06B-SHLS-TF(LF)(SN)
1.0 mm
6 pins
1 pcs
BLE-6PINS-NNCAAC
Backlight Driver :
No

AA080MB11 supports display 800(RGB)×480 (WVGA) with aspect ratio of 15:9 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 174(W)×104.4(H) mm, outline size of 192(W)×122(H)×8.9(D) mm, viewing area size of 178.0(W)×108.4(H) mm, with surface treament of Antiglare, Hard coating (3H), net weight of 250g (Typ.). As a TN, Normally White, Transmissive LCM product, AA080MB11 can provides 1500 cd/m² display brightness 700:1 transimissive contrast ratio, 80/80/80/80 (Typ.)(CR≥10) (L/R/U/D) viewing angle , and response time of 4/12 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit / 8-bit gray scale signal for each dot, thus presenting a palette of 262K/16.7M colors, also with performance of color gamut 52% (NTSC). This product adopted 2 strings WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 100K hours, external backlight driver is additionally needed. AA080MB11 utilizes LVDS (1 ch, 6/8-bit) as it's signal inputting systerm, which connected by 20 pins Connector with power supply voltage of 3.3V (Typ.).
