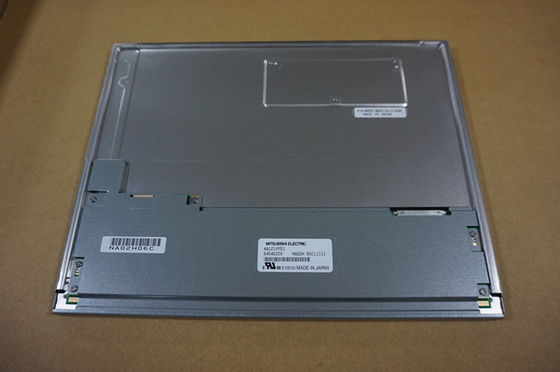

AA121XP13 Mitsubishi 12.1INCH 1024×768 RGB 1000CD/M2 WLED LVDS Storage Temp.: -30 ~ 80 °C INDUSTRIAL LCD DISPLAY

Large Image : AA121XP13 Mitsubishi 12.1INCH 1024×768 RGB 1000CD/M2 WLED LVDS Storage Temp.: -30 ~ 80 °C INDUSTRIAL LCD DISPLAY

Product Details:

Place of Origin:	JAPAN
Brand Name:	Mitsubishi
Certification:	ISO9001
Model Number:	AA121XP13

Payment & Shipping Terms:

Minimum Order Quantity:	1PCS
Price:	USD150
Packaging Details:	STANDARD PACKING
Delivery Time:	1-2DAYS
Payment Terms:	TT/PAYPAL/ESCROW/WESTERN UNION
Supply Ability:	500PCS

Contact Now

AA121XP13 Mitsubishi 12.1INCH 1024×768 RGB 1000CD/M2 WLED LVDS Storage Temp.: -30 ~ 80 °C INDUSTRIAL LCD DISPLAY

Description

MODEL NUMBER:	AA121XP13	BRAND:	Mitsubishi
SIZE:	12.1INCH	RESOLUTION:	1024×768 RGB
BRIGHTNESS:	1000CD/M2	TEMPERATURE RANGE:	Operating Temp.: -30 ~ 80 °C ; Storage Temp.: -30 ~ 80 °C
Lamp Type:	WLED	Signal Interface:	LVDS
High Light:	SVGA 82PPI TFT LCD Panel , WLED LVDS Industrial Lcd Panel

Mitsubishi AA121XP13 Application Details

Basic Information :

Brand

Model

AA121XP13

Type

a-Si TFT-LCD , LCM

Used For

Screen Size

12.1 inch

Alias

Environment :

Storage Temp.

-30 ~ 80 °C

Operating Temp.

-30 ~ 80 °C

RoHS

Vibration

1.0G (9.8 m/s²)

Mitsubishi AA121XP13 Mechanical Details

Pixel Features :

Resolution

1024(RGB)×768, XGA

Dot Pitch(mm)

0.080×0.240 (H×V)

Pixel Format

RGB Vertical Stripe

Pixel Pitch(mm)

0.240×0.240 (H×V) [105PPI]

Mechanical Size :

Active Area(mm)

245.76(H) × 184.32(V)

Bezel Area(mm)

249.0(H) × 187.5(V)

Outline Dim.(mm)

260.5(H) × 203(V)

Depth(mm)

9.5±0.5

Outline Features :

Form Style

Flat Rectangle

Shape Style

Aspect Ratio

4:3 (H:V)

Orientation

Landscape type

Mounting :

Side mounting holes (4-M3) on left, right bezel

Other Spec :

Weight

600g (Typ.)

Treatment

Antiglare, Hard coating (3H)

Mitsubishi AA121XP13 Optical Details

Basic Information :

Luminance(cd/m²)

1000 (Typ.)

Contrast Ratio

1000:1 (Typ.) (Transmissive)

Viewing Angle

85/85/85/85 (Typ.)(CR≥10)

Display Mode

SWV, Normally Black, Transmissive

Best View on

Symmetry

Response(ms)

12/12 (Typ.)(Tr/Td)

Color Performance :

White Coordinate

Wx:0.313; Wy:0.329

Display Colors

262K/16.7M (6-bit / 6-bit + Hi-FRC)

Color Temperature

6485K

White Uniformity

1.30 (Max.)(5 points)

1931 Color Gamlt :

NTSC Ratio

50%

sRGB

70% coverage

Adobe RGB

53% coverage

DCI-P3

52% coverage

Rec.2020

38% coverage

Remarks

sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)

Dispaly Performance :

Outdoor Visibility

Sunlight Readable

Transmissivity

Mitsubishi AA121XP13 Electronics Details

Frame Rate :

60Hz

Reverse Scan :

Yes (180°)

Total Consumption :

12.8W (Typ.)

Mitsubishi AA121XP13 Interface Details

Signal Electrical :

Voltage Supply

3.3V (Typ.)

Current Supply

400/700mA (Typ./Max.)

Signal Type :

LVDS (1 ch, 6/8-bit)

Logic Voltage

Interface Features :

Position

Type

Connector

Interface Detail :

Brand

Model

Pitch

Pins

Quantity

Pin Configuration

JAE

FI-SEB20P-HFE

1.25 mm

20 pins

1 pcs

LVDS-20P1C8B-010H

Mitsubishi AA121XP13 Backlight Details

Backlight Features :

Type

WLED

Quantity

4 strings

Position

Edge light type

Replacement

Shape

4 strings

Life Time

100K(Typ.) Hours

Lamp Electrical :

Voltage Supply

24.0/27.7V (Typ./Max.)

Current Supply

120/130mA (Typ./Max.)

Interface Features :

Position

Type

Connector

Interface Detail :

Brand

Model

Pitch

Pins

Quantity

Pin Configuration

JST

SM10B-GHS-TB(LF)(SN)

1.25 mm

10 pins

1 pcs

Backlight Driver :

AA121XP13 supports display 1024(RGB)×768 (XGA) with aspect ratio of 4:3 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 245.76(W)×184.32(H) mm, outline size of 260.5(W)×203(H)×10(D) mm, viewing area size of 249.0(W)×187.5(H) mm, with surface treament of Antiglare, Hard coating (3H), net weight of 600g (Typ.). As a SWV, Normally Black, Transmissive LCM product, AA121XP13 can provides 1000 cd/m² display brightness 1000:1 transimissive contrast ratio, 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 12/12 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit / 6-bit + Hi-FRC gray scale signal for each dot, thus presenting a palette of 262K/16.7M colors, also with performance of color gamut 50% (NTSC). This product adopted 4 strings WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 100K hours, external backlight driver is additionally needed. AA121XP13 utilizes LVDS (1 ch, 6/8-bit) as it's signal inputting systerm, which connected by 20 pins Connector with power supply voltage of 3.3V (Typ.).
