Product Details:
|
| Screen Size: | 6.4" | Pixel Number: | 640(RGB)×480, VGA, 124PPI |
|---|---|---|---|
| Display Area: | 130.56(W)×97.92(H) Mm | Brightness: | 350cd/m² (Typ.) |
| Signal Interface: | Parallel RGB (1 Ch, 6-bit) , 31 Pins Connector | Max. Ratings: | -30 ~ 80 °C |
| Screen Type: | A-Si TFT-LCD, LCM | Pixel Format: | RGB Vertical Stripe |
| Display Mode: | TN, Normally White, Transmissive | Lamp Type: | 2 Pcs CCFL , 50K Hours , Without Driver |
| High Light: | 124PPI TFT LCD Panel,350cd/m² TFT LCD Panel,LQ064V3DG01 |
||

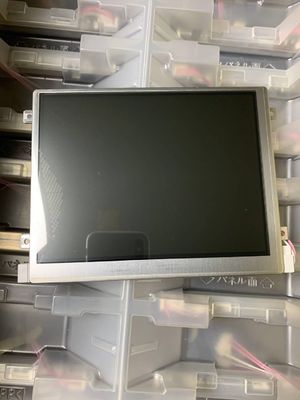

LQ064V3DG01 6.4 INCH SHARP TFT-LCD 640(RGB)×480, VGA, 124PPI PIXEL -30 ~ 80 °C Industrial LCD Panel
1. Main Information:
Sharp Corporation (hereafter called Sharp) LQ064V3DG01 is a 6.4 inch diagonal a-Si TFT-LCD display panel product, with an integral CCFL backlight system, without backlight driver, without touch screen. It features an operating temperature range of -30 ~ 80°C , a storage temperature range of -30 ~ 80°C , and the maximal vibration level of 2.0G (19.6 m/s²). It's general features are summarized by Panelook in the following: Wide Temperature, Life ≥ 50K hours, U/D,L/R Reverse, Matte . Based on its features, Panelook recommend that this model be applied to Industrial etc.
| Pixel Features : | Pixel Format | 640(RGB)×480 [VGA] | Dot Pitch | 0.068×0.204 mm (H×V) |
|---|---|---|---|---|
| Configuration | RGB Vertical Stripe | Pixel Pitch | 0.204×0.204 mm (H×V) [124PPI] | |
| Mechanical Size : | Display Area | 130.56×97.92 mm (H×V) | Bezel Area | - |
| Outline Dim. | 161.3×117 mm (H×V) | Outline Depth | 12.0 (Typ.) mm | |
| Outline Features : | Form Factor | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio | 4:3 (H:V) | Shape Style | - | |
| Holes & Brackets : | Face mounting holes (4-Ф3.2) on left, right slugs | |||
| Other Features : | Weight | 280g (Max.) | Surface | Antiglare |
| Back-light Features: | Lamp Shape | Straight | Lamp Type | CCFL | Life Time | 50K(Typ.) (Hours) |
|---|---|---|---|---|---|---|
| Replacement | - | Amount | 2 pcs | Position | Edge light type (Bottom side) | |
| Lamp Electrical : | Voltage Input | 370±40V | Current Input | 10.0±1.0mA | ||
| Frequency | 35/80KHz (Min./Max.) | Kick-off Voltage | - | |||
| Interface Features : | Type | Connector | Position | - | Lamp Driver | No |
| Interface Detail : | Brand | Model | Pin Pitch | Pins | Amount | Configuration |
| JST | BHR-04VS-1 | 4.0 mm | 4 pins | 1 pcs | BLL-4PINS-HHNL | |
| Signal Systerm : | Parallel RGB (1 ch, 6-bit) | Logic Voltage | -0.3V≤VIL≤0.9V; 2.3V≤VIH≤5.5V | |||
|---|---|---|---|---|---|---|
| Signal Electrical : | Voltage Input | 3.3/5.0V (Typ.)(VCC) | Current Input | 290/200mA (Typ.)(ICC) | ||
| Interface Features : | Type | Connector | Position | - | ||
| Connector Detail : | Brand | Model | Pin Pitch | Pins | Amount | Configuration |
| HRS | DF9BA-31P-1V | 1.0 mm | 31 pins | 1 pcs | DRGB-31P1C6B-010K | |
5. FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
